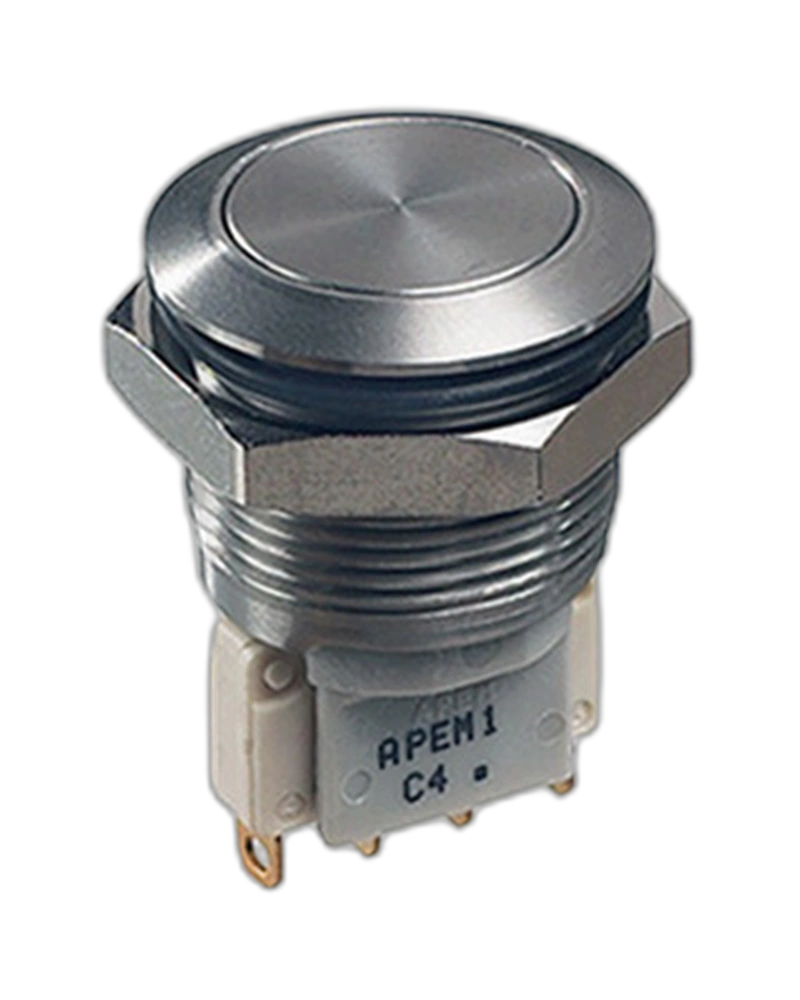

The APEM Panel Switches AV19LB007 is a robust tactile switch designed for industrial applications. With an insulation resistance of 1,000 MΩ min. at 500 VDC, dielectric strength of 2,000 Vrms 50 Hz min., and operating force of 7 N ±2 N, this switch ensures reliable performance in demanding environments. Ideal for use in electrical systems requiring high durability and precise operation.
The APEM Panel Switches AV19LB007 is a high-reliability tactile panel switch engineered for industrial automation and control systems. This switch delivers exceptional durability with a mechanical life of 1,000,000 cycles and operates within a temperature range of -20 °C to +85 °C. Its robust construction, featuring IP65 and IP69K sealing, ensures protection against dust and water ingress, making it suitable for harsh industrial settings. The switch supports a wide range of electrical loads, including 5 A 250 VAC, 5 A 125 VAC, 6,000 cycles, 5 A 15 VDC, and 3 A 30 VDC, while maintaining low contact resistance and high insulation integrity.
The AV19LB007 switch supports multiple electrical load conditions with high reliability. It handles 5 A 250 VAC and 5 A 125 VAC for 6,000 cycles, 5 A 15 VDC for 50,000 cycles, and 3 A 30 VDC. The switch maintains low initial contact resistance (100 mΩ max.) and operates within a precise force range of 7 N ±2 N, ensuring consistent performance under varying electrical loads.
Engineered for extreme conditions, the AV19LB007 features IP65 and IP69K sealing, providing robust protection against dust, water, and harsh industrial environments. The switch operates reliably across a wide temperature range of -20 °C to +85 °C, making it suitable for applications in both cold and hot industrial settings.
With a mechanical life of 1,000,000 cycles, the AV19LB007 is designed for long-term reliability in high-traffic industrial applications. The switch requires a torque of 1.5 Nm min. to 4 Nm max. when mounting, ensuring secure installation without compromising performance.
The AV19LB007 features a standard panel cut-out of Ø 19.2 mm (.755) min. and a mounting size of 30 mm x 30 mm (1.181x1.181). It is compatible with standard panel thicknesses ranging from 1 mm (.039) to 9 mm (.354) max., ensuring seamless integration into existing industrial control panels.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminal and frame |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 1,000,000 cycles Front panel |
| sealing | IP65 and IP69K Panel cut-out : Ø 19.2 mm (.755) Min. pitch for matrix |
| Operating force | 7 N ±-2 N |
| Operating temperature | -20 °C to +85 °C |
| Max. current/voltage rating with resistive load | 5 A 250 VAC - 5 A 125 VAC - 6,000 cycles5 A 15 VDC - 3 A 30 VDC - 50,000 cycles |
The APEMPanel Switches AV19LB007 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminal and frame |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 1,000,000 cycles Front panel |
| sealing | IP65 and IP69K Panel cut-out : Ø 19.2 mm (.755) Min. pitch for matrix |
| Operating force | 7 N ±-2 N |
| Operating temperature | -20 °C to +85 °C |
| Max. current/voltage rating with resistive load | 5 A 250 VAC - 5 A 125 VAC - 6,000 cycles5 A 15 VDC - 3 A 30 VDC - 50,000 cycles |
