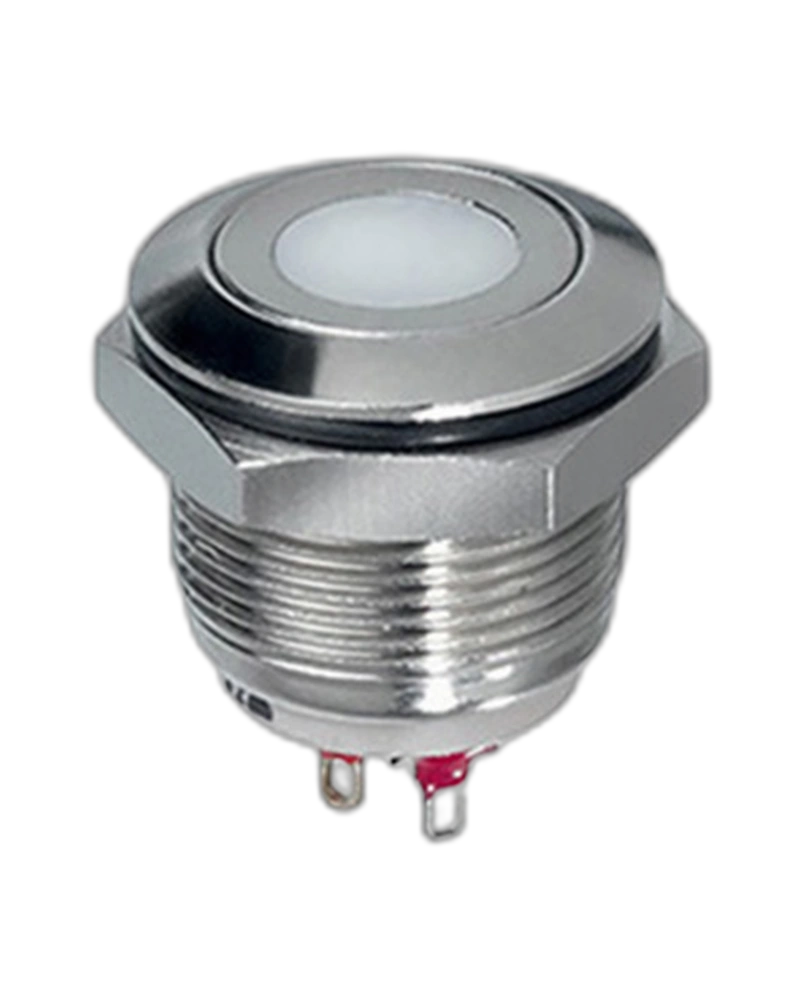

The APEM Panel Switches AV19C703D900K is a robust, IP65-rated autoswitch designed for industrial applications. This momentary, normally open (NO) switch offers tactile feedback, illumination options, and reliable operation across temperatures from -30°C to +70°C. With electrical life up to 1,000,000 cycles and a max current rating of 50 mA at 24 VDC, it ensures durable performance in demanding environments.
The APEM Panel Switches AV19C703D900K is a high-reliability, momentary normally open (NO) autoswitch engineered for industrial control panels. Featuring IP65 sealing for dust and water resistance, this switch delivers precise tactile feedback and optional illumination, making it ideal for applications requiring robust, long-term operation in harsh conditions. Its exceptional electrical life of 1,000,000 cycles at full load, combined with a wide operating temperature range of -30°C to +70°C, ensures consistent performance in extreme environments without compromising safety or functionality.
The AV19C703D900K operates within a max current rating of 50 mA at 24 VDC for resistive loads. It features an initial contact resistance of 100 mΩ max and an insulation resistance of 1,000 MΩ min. at 500 VDC, ensuring reliable electrical performance and safety. Dielectric strength tests confirm 500 Vrms 50 Hz min. between terminals and 2,000 Vrms 50 Hz min. between terminals and frame, providing robust protection against electrical faults.
Engineered for extreme conditions, this switch operates reliably across a temperature range of -30°C to +70°C. Its IP65 rating guarantees dust and water resistance, making it suitable for outdoor installations or harsh industrial environments. The switch also withstands high humidity levels and mechanical stress without compromising functionality.
With a compact 30 mm x 30 mm mounting footprint, the AV19C703D900K features a travel distance of 0.7 mm (±0.1 mm) and a torque range of 1.5 Nm min. to 4 Nm max. for secure installation. The panel thickness compatibility ranges from 1 mm to 6 mm max., allowing integration into various panel designs while maintaining structural integrity.
Designed for longevity, the AV19C703D900K delivers up to 1,000,000 cycles of operation at full load, ensuring extended service life in high-demand applications. Its momentary NO function provides precise control without maintaining a continuous connection, reducing wear on the switch mechanism and enhancing system efficiency.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between terminals and frame |
| Operating force | 7 N ±-2 N Tactile feedback Illuminated or non-illuminated Momentary (NO) Marking available Illuminated or non-illuminated Momentary (NO) Marking available Momentary (NO) Marking available Marking available |
| Operating temperature | -30 °C to +70 °C Travel : 0.7 mm (.027) ±0.1 mm (.003) |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Hand soldering : 270 °C, 3 seconds max. Panel cut-out : Ø 19.2 mm (.755) Min. pitch for matrix |
| mounting | 30 mm x 30 mm (1.181x1.181) |
| Max. current/voltage rating with resistive load | 50 mA 24 VDC |
| Electrical Functions | Normally Open (NO) |
The APEMPanel Switches AV19C703D900K is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between terminals and frame |
| Operating force | 7 N ±-2 N Tactile feedback Illuminated or non-illuminated Momentary (NO) Marking available Illuminated or non-illuminated Momentary (NO) Marking available Momentary (NO) Marking available Marking available |
| Operating temperature | -30 °C to +70 °C Travel : 0.7 mm (.027) ±0.1 mm (.003) |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Hand soldering : 270 °C, 3 seconds max. Panel cut-out : Ø 19.2 mm (.755) Min. pitch for matrix |
| mounting | 30 mm x 30 mm (1.181x1.181) |
| Max. current/voltage rating with resistive load | 50 mA 24 VDC |
| Electrical Functions | Normally Open (NO) |
