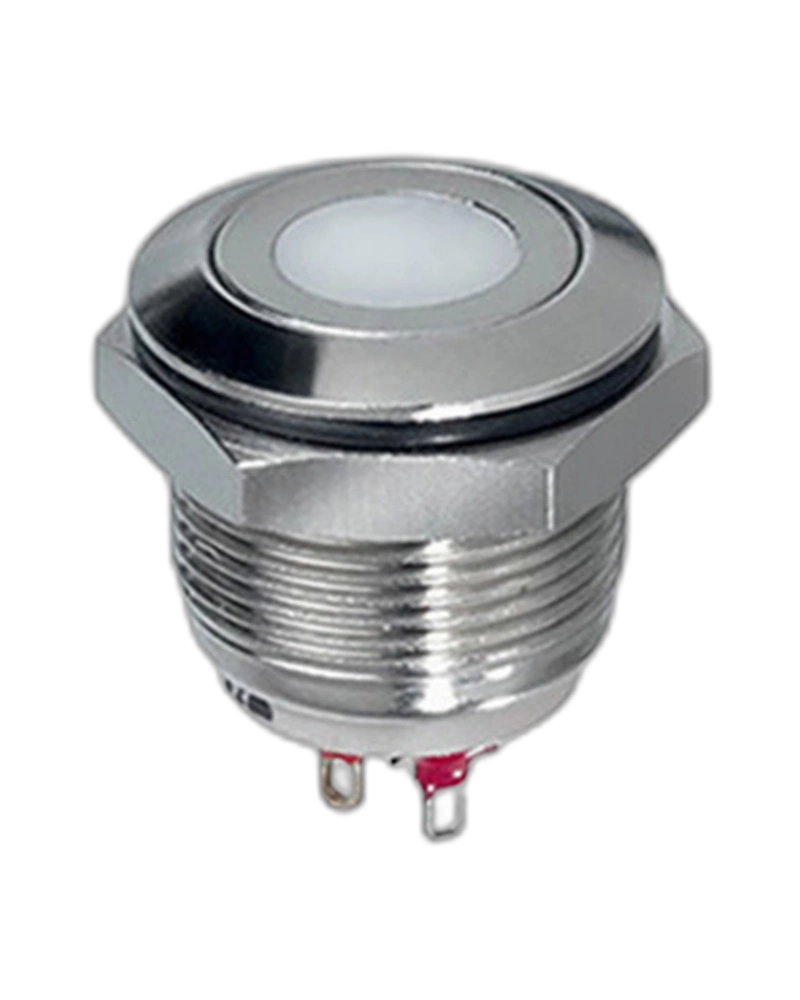

AV19C703D240K Versatile AV19C703D240K Panel Switch with gold-plated dome contacts for durability and excellent conductivity. Easy installation with secure solder terminals. Ideal for industrial and consumer use. Select Quantity
| Feature | Specification |
|---|---|
| Force | 2 N |
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between terminals and frame |
| Operating force | 7 N ±-2 N Hand soldering : 270 °C, 3 seconds max. Panel cut-out : Ø 19.2 mm (.755) Min. pitch for matrix |
| Operating temperature | -30 °C to +70 °C Travel : 0.7 mm (.027) ±0.1 mm (.003) |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Hand soldering : 270 °C, 3 seconds max. Panel cut-out : Ø 19.2 mm (.755) Min. pitch for matrix |
| mounting | 30 mm x 30 mm (1.181x1.181) |
| Max. current/voltage rating with resistive load | 50 mA 24 VDC |
| Electrical Functions | Normally Open (NO) |
