Explore performance details, construction highlights, applications, and technical information in one clear overview.

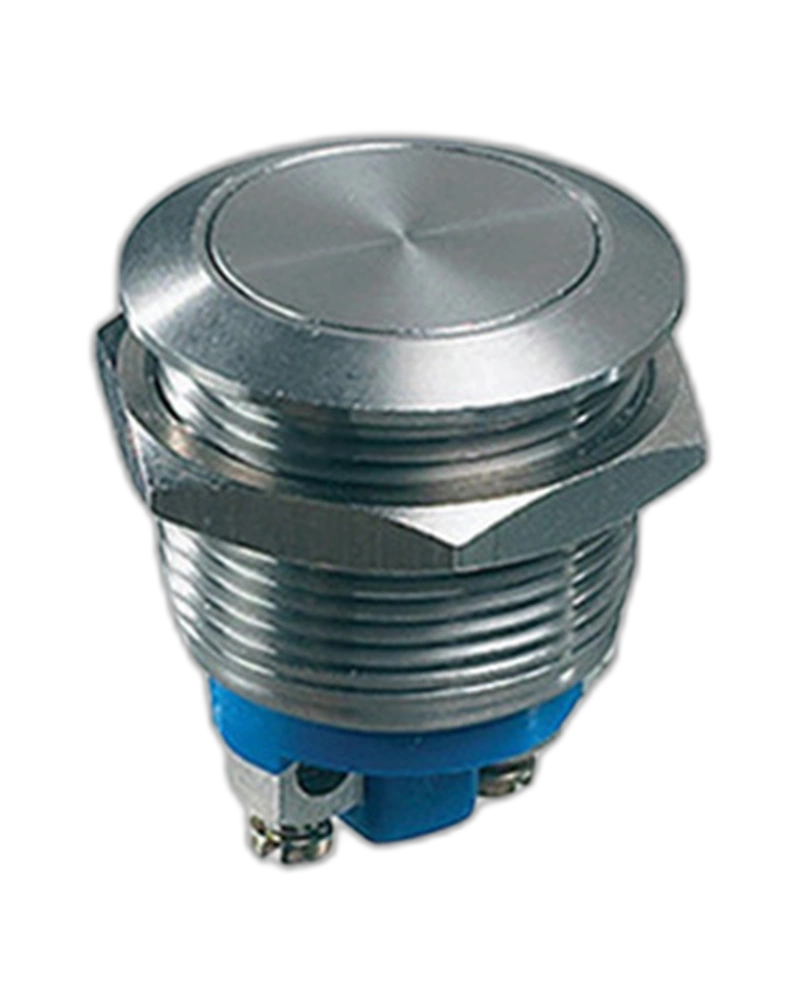

AV191003C200K AV191003C200K Terminals: Reliable connection solution for various applications, ensuring durability and performance. Select Quantity
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC Dielectric ... |
| Feature | Specification |
|---|---|
| connection | solution for various applications |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC Dielectric ... |
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame2,000 Vrms 50 Hz min. between terminals |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 11 mm (.433) max. Low level or mechanical life : 1,000,000 cycles Hand soldering : 300 °C, 3 sec. max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| Operating temperature | -30 °C to +70 °C |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| connection | solution for various applications |
