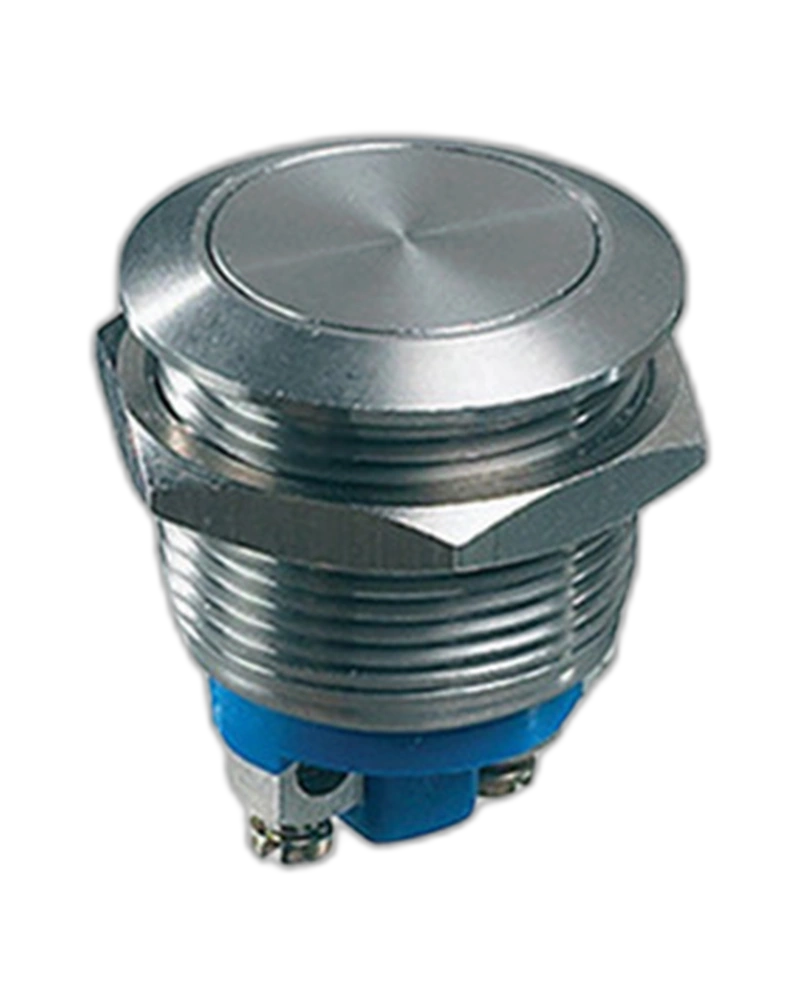

The APEM Panel Switches AV191003A900 is a robust, unsealed autoswitch designed for industrial applications. With a minimum insulation resistance of 1,000 MΩ at 500 VDC and dielectric strength of 2,000 Vrms 50 Hz, this switch ensures reliable performance in demanding environments. Its operating temperature range of -30°C to +70°C and 1,000,000 cycle life make it ideal for continuous use in industrial control systems.
The APEM Panel Switches AV191003A900 is a high-reliability, unsealed autoswitch engineered for industrial control panels. This switch features a short case design with screw terminals, providing a secure connection for electrical circuits. Its exceptional insulation resistance (1,000 MΩ min. at 500 VDC) and dielectric strength (2,000 Vrms 50 Hz) ensure robust electrical isolation under harsh conditions. The switch operates within a wide temperature range (-30°C to +70°C) and delivers up to 1,000,000 cycles of mechanical life, making it suitable for critical industrial applications where durability and reliability are paramount.
The AV191003A900 delivers precise electrical performance with a minimum insulation resistance of 1,000 MΩ at 500 VDC and dielectric strength of 2,000 Vrms 50 Hz between terminals and frame. This ensures reliable operation in high-voltage industrial settings without electrical breakdown. The switch also maintains an initial contact resistance of 50 mΩ max, minimizing voltage drop during operation.
Engineered for extreme conditions, the AV191003A900 operates within a temperature range of -30°C to +70°C, accommodating both cold and hot industrial environments. Its unsealed construction is designed for standard industrial settings where moisture or dust control is not required, ensuring long-term reliability without additional sealing.
With a mechanical life of 1,000,000 cycles, the AV191003A900 withstands repeated switching operations without degradation. The switch requires a torque range of 1.5 Nm min. to 4 Nm max. when tightening the terminal nut, ensuring secure connections without over-tightening or under-tightening.
The AV191003A900 is designed for standard panel integration with a panel cut-out diameter of Ø 19.2 mm or Ø 22.2 mm. It fits into panels with thickness ranging from 1 mm to 11 mm, making it versatile for various industrial panel designs. The switch also supports hand soldering at 300°C for 3 seconds maximum, enabling flexible installation methods.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame2,000 Vrms 50 Hz min. between terminals |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 11 mm (.433) max. Low level or mechanical life : 1,000,000 cycles Hand soldering : 300 °C, 3 sec. max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| Operating temperature | -30 °C to +70 °C |
| Sealing | Unsealed |
| Electrical Functions | Normally Open (NO) |
The APEMPanel Switches AV191003A900 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame2,000 Vrms 50 Hz min. between terminals |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 11 mm (.433) max. Low level or mechanical life : 1,000,000 cycles Hand soldering : 300 °C, 3 sec. max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| Operating temperature | -30 °C to +70 °C |
| Sealing | Unsealed |
| Electrical Functions | Normally Open (NO) |
