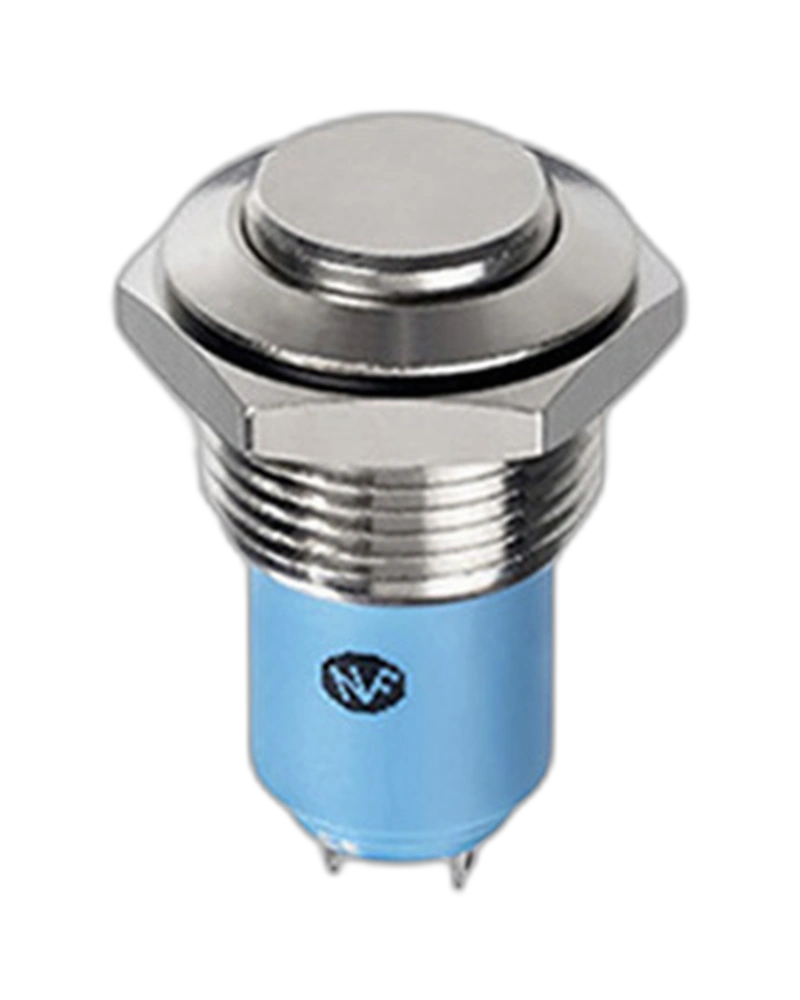

The APEM Panel Switches AV191001A200K is a robust autoswitch designed for industrial applications. Featuring IP65 sealing, 10,000 cycles electrical life at 1A 250VAC, and latching action, this switch ensures reliable operation in demanding environments. Ideal for machinery and control systems requiring high durability and safety.
The APEM Panel Switches AV191001A200K is a high-reliability autoswitch engineered for industrial control systems. With IP65 sealing for dust and water resistance, this switch delivers 10,000 cycles of electrical life at 1A 250VAC and latching action for consistent operation. Its robust construction supports operating temperatures from -30°C to +70°C, making it suitable for harsh environments where reliability is critical. The switch includes panel sealing options and 3 terminal types for flexible integration into machinery and automation systems.
The AV191001A200K delivers reliable electrical performance with a maximum current/voltage rating of 1A 250VAC for resistive loads. It maintains an initial contact resistance of 50 mΩ max. and provides 1,000 MΩ min. insulation resistance at 500 VDC. The dielectric strength of 2,000 Vrms 50 Hz ensures robust protection against electrical surges between terminals and the frame.
Engineered for extreme conditions, this switch operates within a temperature range of -30°C to +70°C. Its IP65 sealing protects against dust and water ingress, while the panel sealing option enhances protection in harsh industrial settings. The switch also withstands 200,000 cycles of mechanical or low-level operation, ensuring long-term reliability.
Installation requires precise torque application: a minimum of 1.5 Nm and maximum of 4 Nm to the nut. The switch features solder lugs for secure terminal connections, with hand soldering capabilities up to 300°C for 4 seconds. This ensures reliable assembly without compromising the switch's performance.
The AV191001A200K includes 3 terminal types for versatile integration into control systems. Solder lugs provide a secure connection point, while the latching action ensures the switch remains in the selected state without continuous power input. This design simplifies wiring and reduces maintenance needs.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals 500 Vrms 50 Hz between terminals and frame |
| Electrical life | 10,000 cycles at 1 A 250 VAC |
| Torque | 1.5 Nm min. - 4 Nm max. applied to nut |
| Panel thickness | Ø 16 : 1 (.039) to 6 mm (.236) max.Ø 19 and Ø 22 : 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 200,000 cycles Hand soldering : 300 °C, 4 sec. max. Low level or mechanical life : 200,000 cycles Hand solder |
| Operating temperature | -30 °C to +70 °C |
| Max. current/voltage rating with resistive load | 1 A 250 VAC |
| Electrical Functions | ON OFF |
