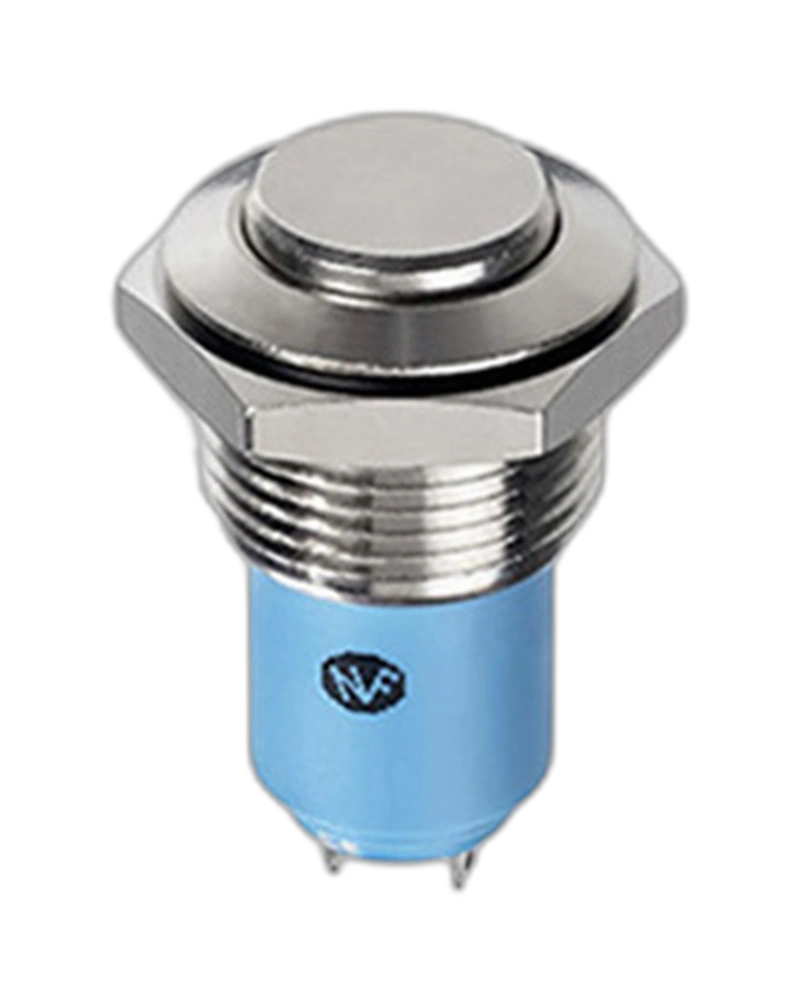

The APEM Panel Switches AV191001A200 is a robust autoswitch designed for industrial applications. This latching switch features 3 terminal types, unsealed construction, and supports electrical life up to 10,000 cycles at 1 A 250 VAC. With insulation resistance of 1,000 MΩ min. at 500 VDC and dielectric strength of 2,000 Vrms 50 Hz, it ensures reliable performance in demanding environments from -30 °C to +70 °C.
The APEM Panel Switches AV191001A200 is a high-reliability autoswitch engineered for industrial control systems. This latching switch delivers precise ON/OFF functionality with 3 terminal types and unsealed construction, ideal for applications requiring robust electrical performance and mechanical durability. Its electrical life of 10,000 cycles at 1 A 250 VAC, combined with high insulation resistance (1,000 MΩ min. at 500 VDC) and dielectric strength (2,000 Vrms 50 Hz), ensures dependable operation across a wide temperature range (-30 °C to +70 °C). The switch is designed for seamless integration into industrial panels with solder lug terminals and supports hand soldering up to 300 °C for 4 seconds.
The AV191001A200 delivers high electrical reliability with a minimum insulation resistance of 1,000 MΩ at 500 VDC and dielectric strength of 2,000 Vrms 50 Hz between terminals and the frame. It supports electrical life of 10,000 cycles at 1 A 250 VAC with a maximum initial contact resistance of 50 mΩ. The switch operates within a temperature range of -30 °C to +70 °C, ensuring consistent performance in extreme environments.
Designed for industrial use, the AV191001A200 features a torque range of 1.5 Nm min. to 4 Nm max. when tightening the nut. Panel thickness compatibility includes Ø 16: 1 (.039) to 6 mm (.236) max. and Ø 19 and Ø 22: 1 (.039) to 9 mm (.354) max. The switch supports hand soldering up to 300 °C for 4 seconds, making it suitable for precise assembly processes.
This autoswitch is ideal for industrial control panels where reliable switching is critical. Its latching action ensures the switch remains in the selected state without continuous power, reducing maintenance needs. The 3 terminal types allow for versatile circuit integration, while the unsealed construction provides flexibility for standard panel installations without additional sealing.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals 500 Vrms 50 Hz between terminals and frame |
| Electrical life | 10,000 cycles at 1 A 250 VAC |
| Torque | 1.5 Nm min. - 4 Nm max. applied to nut |
| Panel thickness | Ø 16 : 1 (.039) to 6 mm (.236) max.Ø 19 and Ø 22 : 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 200,000 cycles Hand soldering : 300 °C, 4 sec. max. Low level or mechanical life : 200,000 cycles Hand solder |
| Operating temperature | -30 °C to +70 °C |
| Max. current/voltage rating with resistive load | 1 A 250 VAC |
| Sealing | Unsealed |
| Electrical Functions | ON OFF |
The APEMPanel Switches AV191001A200 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals 500 Vrms 50 Hz between terminals and frame |
| Electrical life | 10,000 cycles at 1 A 250 VAC |
| Torque | 1.5 Nm min. - 4 Nm max. applied to nut |
| Panel thickness | Ø 16 : 1 (.039) to 6 mm (.236) max.Ø 19 and Ø 22 : 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 200,000 cycles Hand soldering : 300 °C, 4 sec. max. Low level or mechanical life : 200,000 cycles Hand solder |
| Operating temperature | -30 °C to +70 °C |
| Max. current/voltage rating with resistive load | 1 A 250 VAC |
| Sealing | Unsealed |
| Electrical Functions | ON OFF |
