Panel Switches AV190003A900KUU – Autoswitches UAE

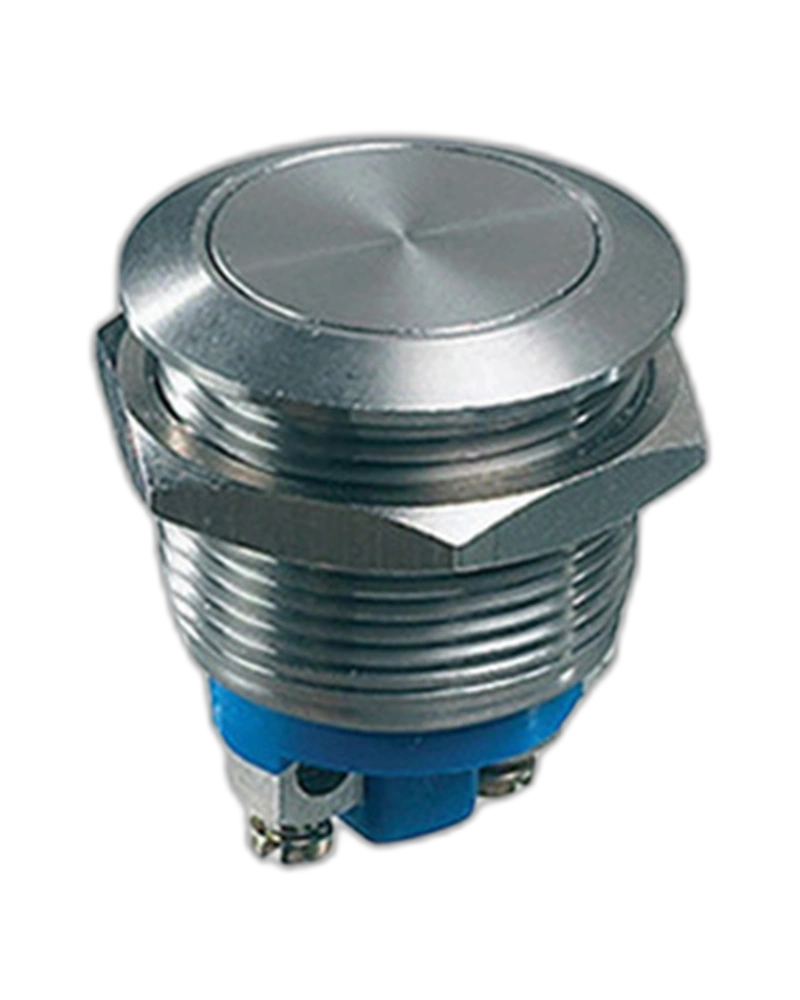

AV190003A900KUU AV190003A900KUU Panel Switch: Durable, easy-install push button switch with secure screw terminals. Reliable and convenient solution.

Brand APEM
Category Autoswitches
Subcategory Switches and Pushbutton

Interested in this product? Panel Switches AV190003A900KUU

Product insights

Everything you need to evaluate this product

Explore performance details, construction highlights, applications, and technical information in one clear overview.

Quality assured Technical details Industrial use Expert support

Panel Switches AV190003A900KUU

AV190003A900KUU AV190003A900KUU Panel Switch: Durable, easy-install push button switch with secure screw terminals. Reliable and convenient solution. Select Quantity

Key Features

Sealing: IP65
Insulation resistance: 1,000 MΩ min. at 500 VDC
Dielectric strength: 2,000 Vrms 50 Hz min. between terminals and frame2,000 Vrms 50 Hz min. between terminals
Torque: 1.5 Nm min.- 4 Nm max. applied to nut
Panel thickness: 1 (.039) to 11 mm (.433) max. Low level or mechanical life : 1,000,000 cycles Hand soldering : 300 °C, 3 sec. max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix
Initial contact resistance: 50 mΩ max.
Operating temperature: -30 °C to +70 °C
Momentary NC/NO Long life Sealed to IP65 and IP69K
Long life Sealed to IP65 and IP69K
Sealed to IP65 and IP69K
Case: Long
Terminals: Screw
Electrical Functions: Normally Open (NO)

Feature	Specification
Sealing	IP65
Insulation resistance	1,000 MΩ min. at 500 VDC
Dielectric strength	2,000 Vrms 50 Hz min. between terminals and frame2,000 Vrms 50 Hz min. between terminals
Torque	1.5 Nm min.- 4 Nm max. applied to nut
Panel thickness	1 (.039) to 11 mm (.433) max. Low level or mechanical life : 1,000,000 cycles Hand soldering : 300 °C, 3 sec. max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix
Operating temperature	-30 °C to +70 °C
Electrical Functions	Normally Open (NO)
