Panel Switches AV190003A900 – Autoswitches UAE

AV190003A900 AV190003A900 Panel Switch: Sleek design, durable construction, easy installation with user-friendly terminals. Ideal for controlling lights and appliances.

Brand APEM
Category Autoswitches
Subcategory Switches and Pushbutton

Interested in this product? Panel Switches AV190003A900

Product insights

Everything you need to evaluate this product

Explore performance details, construction highlights, applications, and technical information in one clear overview.

Quality assured Technical details Industrial use Expert support

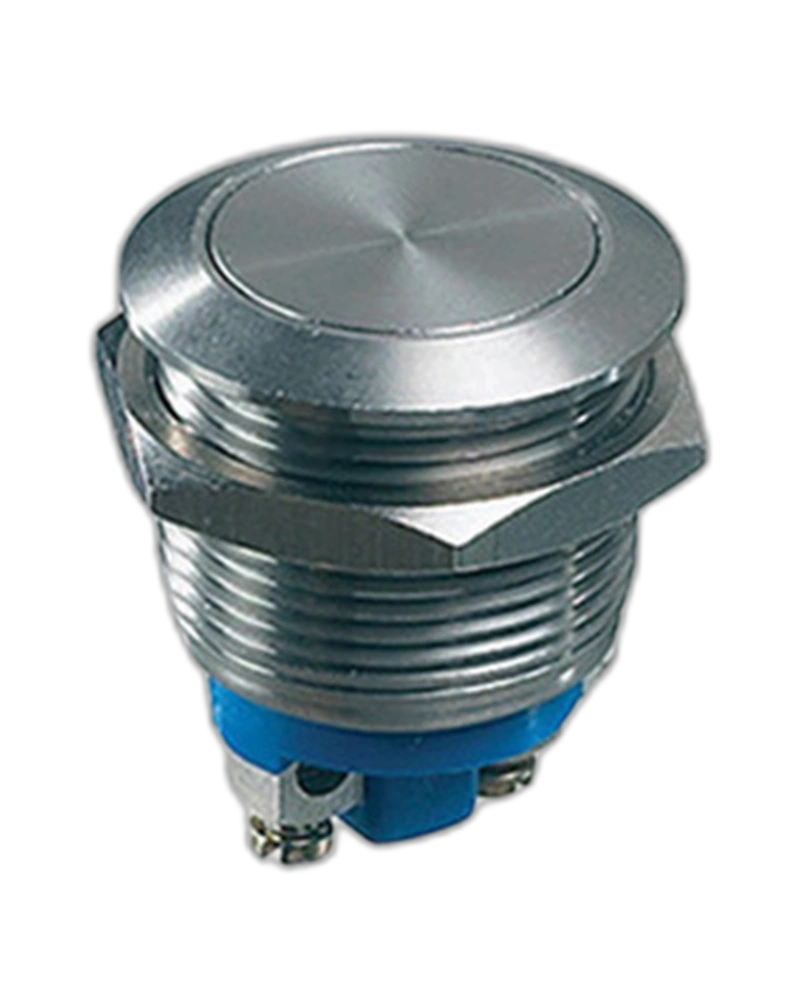

Panel Switches AV190003A900

AV190003A900 AV190003A900 Panel Switch: Sleek design, durable construction, easy installation with user-friendly terminals. Ideal for controlling lights and appliances. Select Quantity

Key Features

Insulation resistance: 1,000 MΩ min. at 500 VDC
Dielectric strength: 2,000 Vrms 50 Hz min. between terminals and frame2,000 Vrms 50 Hz min. between terminals
Torque: 1.5 Nm min.- 4 Nm max. applied to nut
Panel thickness: 1 (.039) to 11 mm (.433) max. Low level or mechanical life : 1,000,000 cycles Hand soldering : 300 °C, 3 sec. max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix
Initial contact resistance: 50 mΩ max.
Operating temperature: -30 °C to +70 °C
Case: Long
Sealing: Unsealed
Terminals: Screw
Electrical Functions: Normally Open (NO)

Feature	Specification
Insulation resistance	1,000 MΩ min. at 500 VDC
Dielectric strength	2,000 Vrms 50 Hz min. between terminals and frame2,000 Vrms 50 Hz min. between terminals
Torque	1.5 Nm min.- 4 Nm max. applied to nut
Panel thickness	1 (.039) to 11 mm (.433) max. Low level or mechanical life : 1,000,000 cycles Hand soldering : 300 °C, 3 sec. max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix
Operating temperature	-30 °C to +70 °C
Sealing	Unsealed
Electrical Functions	Normally Open (NO)
