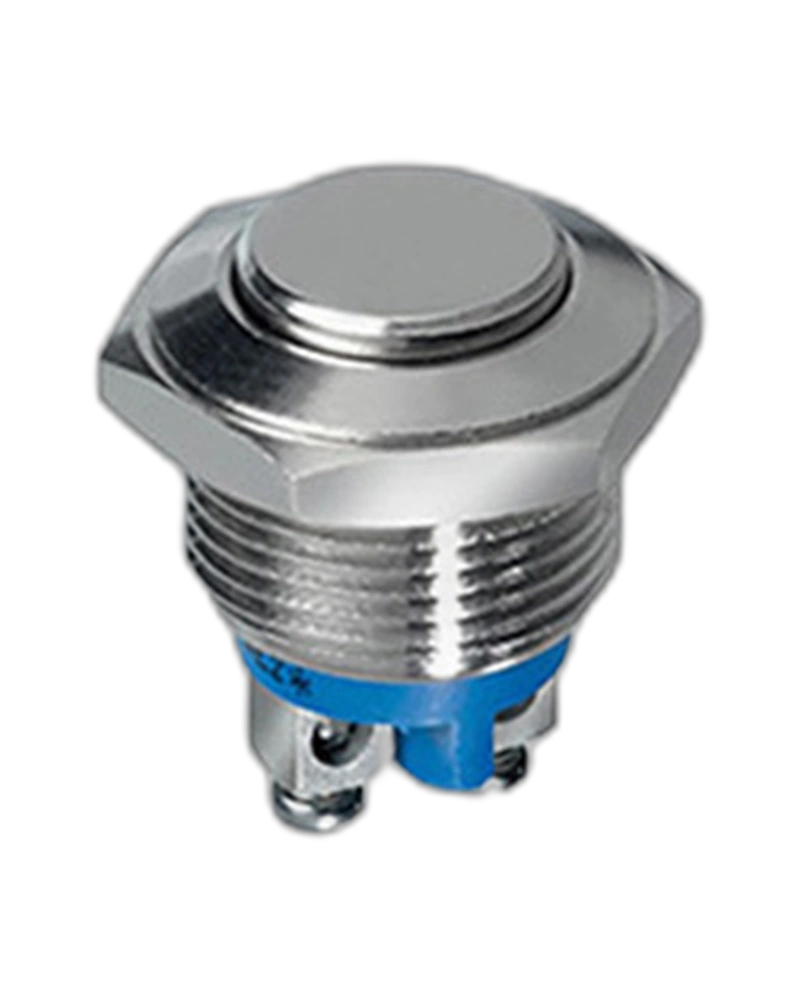

The APEM Panel Switches AV1630C970K is a robust, high-reliability autoswitch designed for industrial applications. With an IP65 sealing rating, 1,000 MΩ insulation resistance, and 2,000 Vrms dielectric strength, it ensures reliable operation in harsh environments. This normally open (NO) switch supports up to 200 mA at 48 VDC for resistive loads and features 1,000,000 cycle mechanical life.
The APEM Panel Switches AV1630C970K is a precision-engineered autoswitch designed for demanding industrial environments. This panel switch delivers exceptional reliability with a robust IP65 sealing rating to protect against dust and water ingress, 1,000 MΩ minimum insulation resistance at 500 VDC, and 2,000 Vrms dielectric strength for terminal-to-frame safety. Engineered for high-cycle durability with 1,000,000 mechanical life cycles, it operates effectively across a wide temperature range from -30 °C to +70 °C. The switch features a short case design with screw terminals and a normally open (NO) electrical function, making it ideal for applications requiring precise control in electrical systems.
The AV1630C970K operates as a normally open (NO) switch with a maximum current rating of 200 mA at 48 VDC for resistive loads. It features an initial contact resistance of 50 mΩ maximum and a dielectric strength of 2,000 Vrms at 50 Hz, ensuring safe and stable electrical performance under demanding conditions.
Engineered for extreme conditions, the AV1630C970K operates within a temperature range of -30 °C to +70 °C and maintains IP65 sealing to resist dust and water ingress. This robust environmental rating ensures reliable performance in industrial settings with high exposure to contaminants.
With a mechanical life of 1,000,000 cycles, the AV1630C970K is designed for long-term use in high-traffic applications. The switch features a travel range of 1.60 mm (±0.3 mm) and requires a torque of 1.5 Nm minimum to 4 Nm maximum for secure installation.
The AV1630C970K uses screw terminals for secure electrical connections and is compatible with panel thicknesses from 1 mm to 6 mm. Its short case design ensures compact integration into industrial panels, while the panel cut-out diameter of Ø16.2 mm facilitates easy mounting.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame |
| Operating temperature | -30 °C to +70 °C Travel : 1.60 mm (.063) ± 0.3 mm (.011) |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles Panel cut-out : Ø 16.2 mm (.637) Min. pitch for matrix |
| Max. current/voltage rating with resistive load | 200 mA 48 VDC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
The APEMPanel Switches AV1630C970K is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame |
| Operating temperature | -30 °C to +70 °C Travel : 1.60 mm (.063) ± 0.3 mm (.011) |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles Panel cut-out : Ø 16.2 mm (.637) Min. pitch for matrix |
| Max. current/voltage rating with resistive load | 200 mA 48 VDC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
