Explore performance details, construction highlights, applications, and technical information in one clear overview.

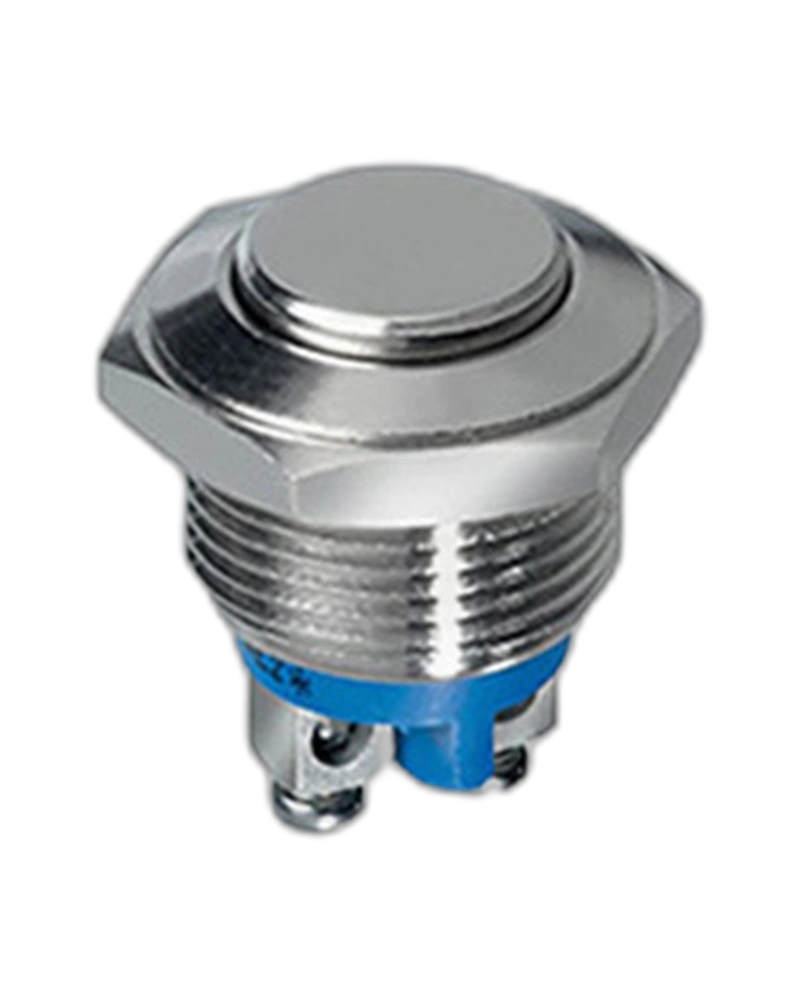

The AV1630C940 Panel Switch features brass silver-plated contacts for durability, screw terminals for easy installation, and a sleek design for versatile applications. Select Quantity
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame |
| Operating temperature | -30 °C to +70 °C Travel : 1.60 mm (.063) ± 0.3 mm (.011) |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles Panel cut-out : Ø 16.2 mm (.637) Min. pitch for matrix |
| Max. current/voltage rating with resistive load | 200 mA 48 VDC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
