Explore performance details, construction highlights, applications, and technical information in one clear overview.

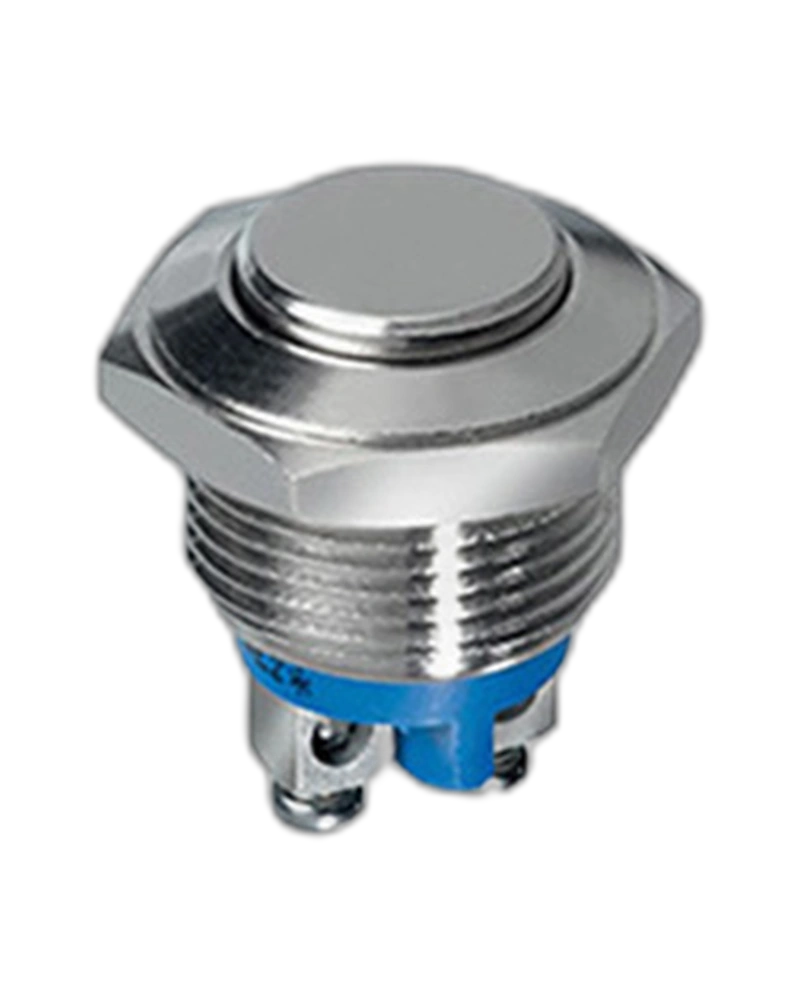

The APEM Panel Switches AV1630C910K is a robust, normally open (NO) switch designed for industrial control applications. With an IP65 sealing rating, 1,000 MΩ insulation resistance at 500 VDC, and a max current rating of 200 mA 48 VDC, it ensures reliable performance in demanding environments. Ideal for use in electrical control panels where durability and precision are critical.
The APEM AV1630C910K Panel Switch is a high-reliability, normally open (NO) switch engineered for industrial automation and control systems. Featuring brass silver-plated contacts and screw terminals, this switch delivers exceptional durability and precise operation across a wide temperature range from -30°C to +70°C. Its IP65 sealing ensures protection against dust and water, while the 1,000 MΩ insulation resistance and 2,000 Vrms dielectric strength guarantee robust electrical performance even in harsh conditions. With a mechanical life of 1,000,000 cycles and a travel distance of 1.60 mm ± 0.3 mm, the AV1630C910K is designed to meet the stringent demands of industrial environments where consistent, long-term reliability is essential.
The AV1630C910K delivers precise electrical operation with a max current rating of 200 mA at 48 VDC for resistive loads. Its initial contact resistance is 50 mΩ max, ensuring minimal voltage drop during operation. The switch maintains a 1,000 MΩ insulation resistance at 500 VDC and withstands 2,000 Vrms dielectric strength (50 Hz), providing reliable electrical isolation even under high-voltage conditions.
Engineered for extreme conditions, the AV1630C910K operates within a temperature range of -30°C to +70°C, making it suitable for both cold and hot industrial environments. Its IP65 sealing rating protects against dust and water ingress, ensuring long-term reliability in harsh settings without compromising performance.
With a mechanical life of 1,000,000 cycles, the AV1630C910K is built to endure repeated use in demanding applications. The switch features a precise travel distance of 1.60 mm (±0.3 mm) and requires a torque of 1.5 Nm to 4 Nm to ensure secure installation without over-tightening or damage.
The AV1630C910K uses screw terminals for easy installation and is compatible with standard panel thicknesses from 1 mm to 6 mm. Its panel cut-out diameter is 16.2 mm, and the minimum pitch for matrix mounting is specified, ensuring seamless integration into control panels and automation systems.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame |
| Operating temperature | -30 °C to +70 °C Travel : 1.60 mm (.063) ± 0.3 mm (.011) |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles Panel cut-out : Ø 16.2 mm (.637) Min. pitch for matrix |
| Max. current/voltage rating with resistive load | 200 mA 48 VDC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
The APEMPanel Switches AV1630C910K is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame |
| Operating temperature | -30 °C to +70 °C Travel : 1.60 mm (.063) ± 0.3 mm (.011) |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles Panel cut-out : Ø 16.2 mm (.637) Min. pitch for matrix |
| Max. current/voltage rating with resistive load | 200 mA 48 VDC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
