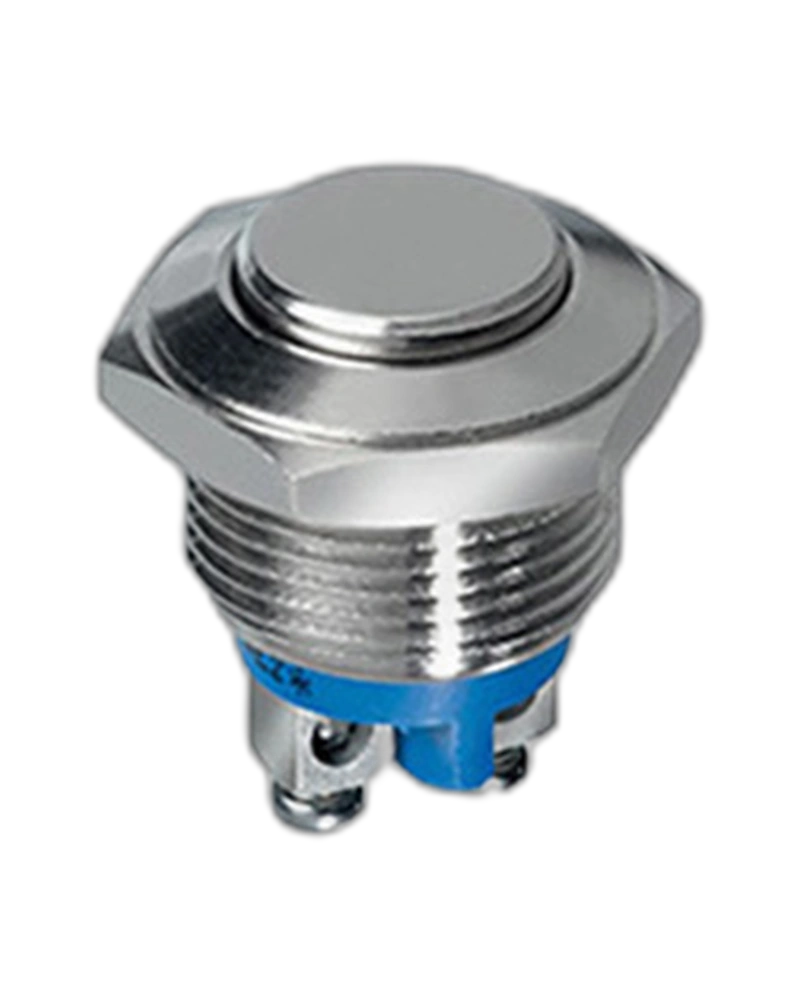

AV1630C910 AV1630C910 Panel Switch features a sleek design, brass silver-plated contacts for durability, and easy screw terminal installation for reliable performance in various applications. Select Quantity
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame |
| Operating temperature | -30 °C to +70 °C Travel : 1.60 mm (.063) ± 0.3 mm (.011) |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles Panel cut-out : Ø 16.2 mm (.637) Min. pitch for matrix |
| Max. current/voltage rating with resistive load | 200 mA 48 VDC - 100 mA 48 VDC |
| Sealing | Unsealed |
| Electrical Functions | Normally Open (NO) |
