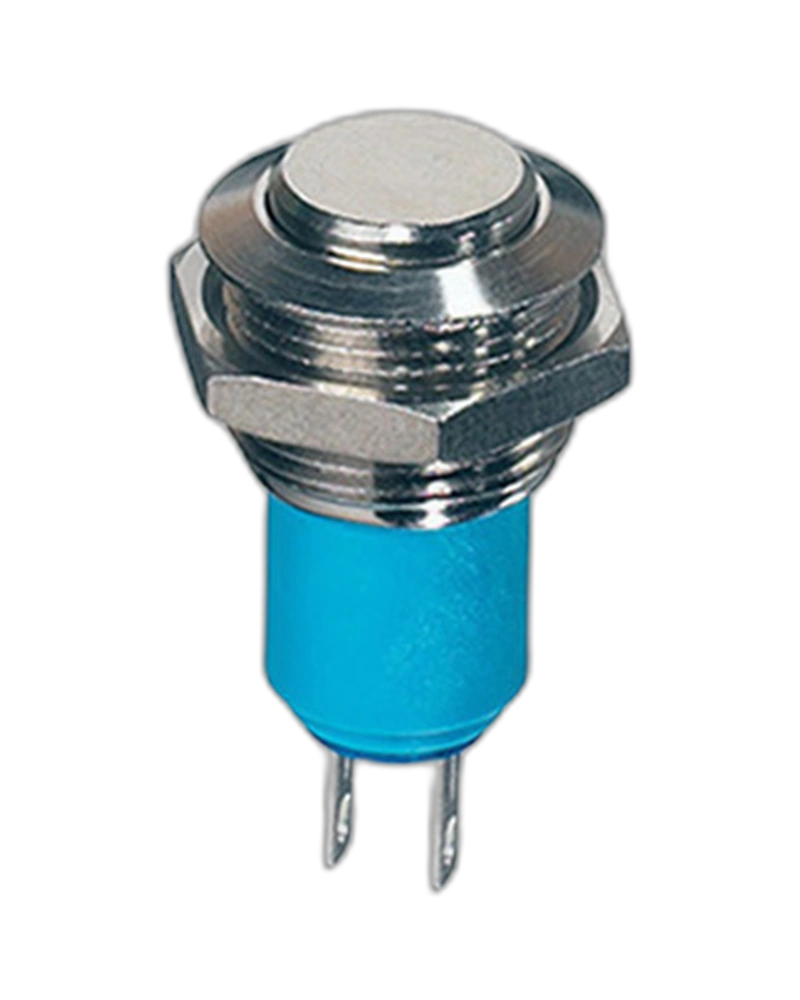

AV1611A210K AV1611A210K Pushbutton Switch features solder terminals for secure connections, durable nickel plated brass, and stainless steel materials for long-lasting performance. Select Quantity
| Feature | Specification |
|---|---|
| sealing | IP65 according to IEC 60529 Optional front panel |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,500 Vrms 50 Hz min. between terminals, 1,000 Vrms 50 Hz between terminals and frame |
| Torque | 1.5 Nm min. - 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 200,000 cycles Hand soldering : 300 °C, 5 sec. max. Panel cut-out : Ø 16,2 mm (.637) Min. pitch for matrix |
| mounting | 24 mm x 24 mm (.944 x .944) Low level or mechanical life : 200,000 cycles Hand soldering : 300 °C, 5 sec. max. Panel cut-out : Ø 16,2 mm (.637) Min. pitch for matrix |
| Operating temperature | -30 °C to +70 °C Optional front panel |
| Max. current/voltage rating with resistive load | 1 A 24 VDC |
| Electrical Functions | ON OFF Bushing Actuator Materials: Nickel-Plated Brass & Stainless Steel Contact Materials: Silver |
