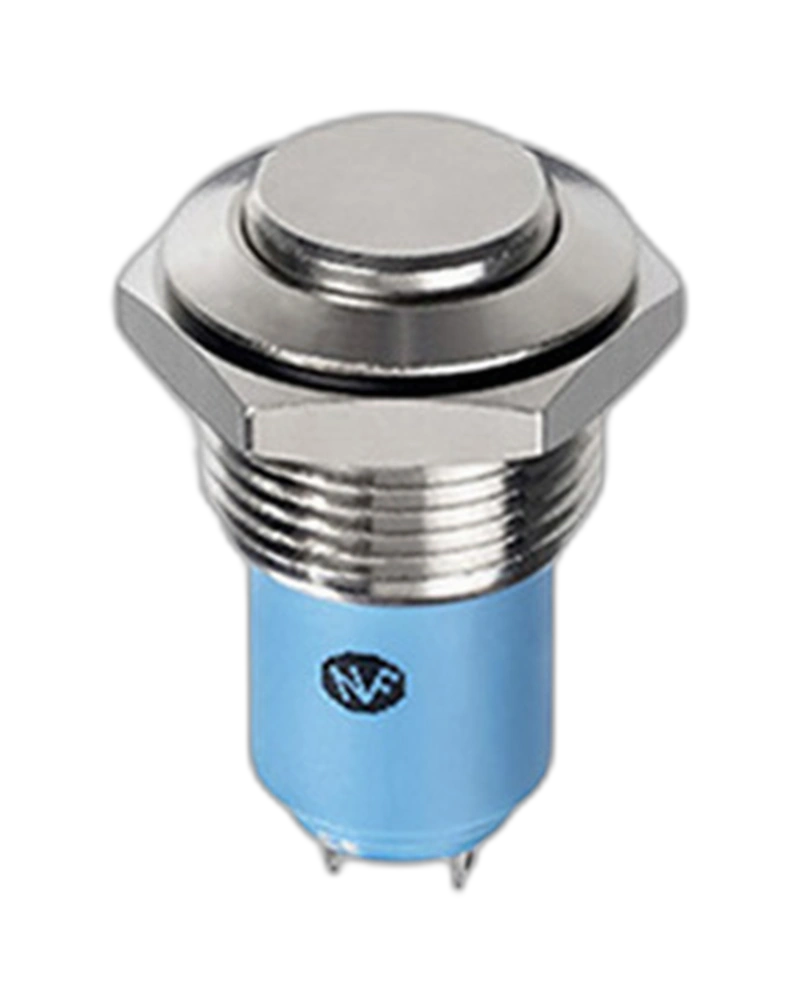

The APEM Panel Switches AV161001A800 is a robust autoswitch designed for industrial applications. Featuring IP65 sealing, 10,000 electrical cycles at 1A 250VAC, and latching action, this switch ensures reliable operation in demanding environments. Ideal for machinery and control systems requiring high durability and safety.
The APEM Panel Switches AV161001A800 is a high-performance autoswitch engineered for industrial use, combining reliability with ease of integration. With IP65 sealing to protect against dust and water, this switch delivers 10,000 electrical cycles at 1A 250VAC and 200,000 mechanical cycles for long-term durability. Its latching action ensures consistent operation, while quick-connect terminals simplify installation. Designed to withstand temperatures from -30°C to +70°C, the AV161001A800 is a critical component for machinery and control systems where robustness and safety are paramount.
The AV161001A800 operates within a max. current/voltage rating of 1A 250VAC for resistive loads. It features 1,000 MΩ min. insulation resistance at 500 VDC and 2,000 Vrms 50 Hz dielectric strength between terminals and frame. Initial contact resistance is 50 mΩ max., ensuring minimal resistance during operation.
Engineered to withstand extreme temperatures from -30°C to +70°C, the AV161001A800 maintains performance in harsh industrial environments. Its IP65 sealing protects against dust and water ingress, making it suitable for outdoor installations and wet areas without compromising functionality.
The switch demonstrates exceptional mechanical resilience with 200,000 cycles for low-level or mechanical life. Torque requirements for installation range from 1.5 Nm min. to 4 Nm max. when tightening the nut, ensuring secure and reliable connections without damage.
Quick-connect terminals simplify installation, while panel sealing options provide flexibility for different mounting environments. Hand soldering is supported up to 300°C for 4 seconds, allowing for precise integration into complex systems without additional tools.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals 500 Vrms 50 Hz between terminals and frame |
| Electrical life | 10,000 cycles at 1 A 250 VAC |
| Torque | 1.5 Nm min. - 4 Nm max. applied to nut |
| Panel thickness | Ø 16 : 1 (.039) to 6 mm (.236) max.Ø 19 and Ø 22 : 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 200,000 cycles Hand soldering : 300 °C, 4 sec. max. Low level or mechanical life : 200,000 cycles Hand solder |
| Operating temperature | -30 °C to +70 °C |
| Max. current/voltage rating with resistive load | 1 A 250 VAC |
| Electrical Functions | ON OFF |
The APEMPanel Switches AV161001A800 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals 500 Vrms 50 Hz between terminals and frame |
| Electrical life | 10,000 cycles at 1 A 250 VAC |
| Torque | 1.5 Nm min. - 4 Nm max. applied to nut |
| Panel thickness | Ø 16 : 1 (.039) to 6 mm (.236) max.Ø 19 and Ø 22 : 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 200,000 cycles Hand soldering : 300 °C, 4 sec. max. Low level or mechanical life : 200,000 cycles Hand solder |
| Operating temperature | -30 °C to +70 °C |
| Max. current/voltage rating with resistive load | 1 A 250 VAC |
| Electrical Functions | ON OFF |
