Explore performance details, construction highlights, applications, and technical information in one clear overview.

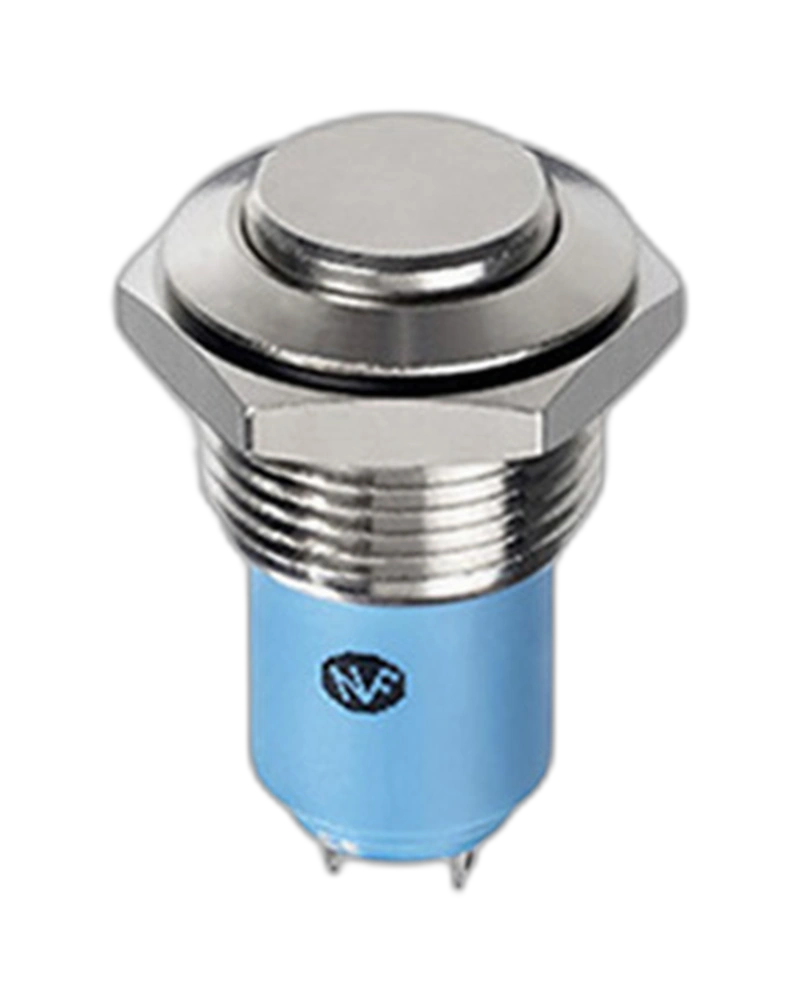

The APEM Panel Switches AV161001A240K is a robust autoswitch designed for industrial applications. Featuring IP65 sealing, 10,000 cycles electrical life, and 200,000 cycles mechanical life, this latching switch ensures reliable operation in demanding environments. With a temperature range of -30°C to +70°C and 1 A 250 VAC rating, it meets stringent industrial requirements for durability and safety.
The APEM Panel Switches AV161001A240K is a high-reliability autoswitch engineered for industrial control systems. This latching switch delivers exceptional performance in harsh conditions with its IP65 sealing, ensuring protection against dust and water ingress. Designed for applications requiring precise switching with minimal maintenance, the AV161001A240K combines robust construction with a wide operating temperature range (-30°C to +70°C) and a 1 A 250 VAC current rating. Its 200,000 cycle mechanical life and 10,000 cycle electrical life make it ideal for environments where frequent switching is required without compromising safety or functionality.
With an IP65 rating, the AV161001A240K provides robust protection against dust and water. This sealing option ensures the switch remains functional in industrial environments where exposure to contaminants is common. The switch is designed to withstand harsh conditions without compromising safety or performance.
The AV161001A240K requires precise installation to ensure optimal performance. Torque specifications range from 1.5 Nm to 4 Nm when tightening the nut, ensuring secure connections without damage. The switch is compatible with solder lugs and can be hand-soldered at temperatures up to 300°C for a maximum of 4 seconds.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals 500 Vrms 50 Hz between terminals and frame |
| Electrical life | 10,000 cycles at 1 A 250 VAC |
| Torque | 1.5 Nm min. - 4 Nm max. applied to nut |
| Panel thickness | Ø 16 : 1 (.039) to 6 mm (.236) max.Ø 19 and Ø 22 : 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 200,000 cycles Hand soldering : 300 °C, 4 sec. max. Low level or mechanical life : 200,000 cycles Hand solder |
| Electrical Functions | ON OFF Bushing Actuator Materials: Stainless Steel Contact Materials: Silver Model: 100 |
| Operating temperature | -30 °C to +70 °C |
| Max. current/voltage rating with resistive load | 1 A 250 VAC |
The APEMPanel Switches AV161001A240K is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals 500 Vrms 50 Hz between terminals and frame |
| Electrical life | 10,000 cycles at 1 A 250 VAC |
| Torque | 1.5 Nm min. - 4 Nm max. applied to nut |
| Panel thickness | Ø 16 : 1 (.039) to 6 mm (.236) max.Ø 19 and Ø 22 : 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 200,000 cycles Hand soldering : 300 °C, 4 sec. max. Low level or mechanical life : 200,000 cycles Hand solder |
| Electrical Functions | ON OFF Bushing Actuator Materials: Stainless Steel Contact Materials: Silver Model: 100 |
| Operating temperature | -30 °C to +70 °C |
| Max. current/voltage rating with resistive load | 1 A 250 VAC |
