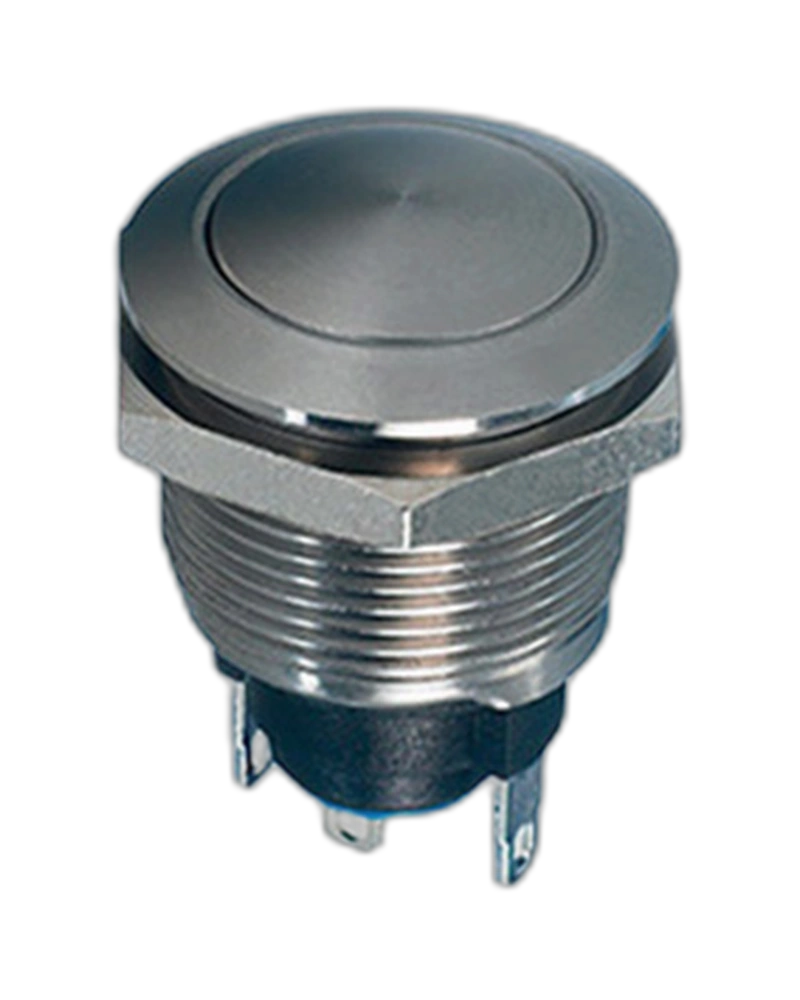

AV09100EA240K Sleek AV09100EA240K Panel Switch with ON ON function, silver contacts for durability, and easy solder terminal installation. Ideal for various applications. Select Quantity
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals500 Vrms 50 Hz min. between terminals and frame |
| Electrical life | 500,000 cycles at 2 A 48 VDC LED voltage and consumption : blue 3.2 V 20 mA, green : 2.1 V 20 mAyellow : 2 V 20 mA, red : 1.95 V 20 mA (a resistor must be series-connected by the user) |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 1,000,000 cycle Hand soldering : 300 °C, 4 seconds max. Panel cut-out : Ø 19,2 mm (.755) or Ø 22,2 mm (.874) Min. pitch for matrix |
| mounting | 30 mm x 30 mm (1.181 x 1.181) Low level or mechanical life : 1,000,000 cycle Hand soldering : 300 °C, 4 seconds max. Panel cut-out : Ø 19,2 mm (.755) or Ø 22,2 mm (.874) Min. pitch for matrix |
| LED Color | No LED,Bushing Actuator Configurations:1,Bushing Actuator Materials:Stainless Steel,Contact Materials:Silver,Illumination:No. |
| Operating temperature | -30 °C to +70 °C (-22 °F to +158 °F) |
| Max. current/voltage rating with resistive load | 2A 48 VDC LED voltage and consumption : blue 3.2 V 20 mA, green : 2.1 V 20 mAyellow : 2 V 20 mA, red : 1.95 V 20 mA (a resistor must be series-connected by the user) |
| Electrical Functions | ON ON |
