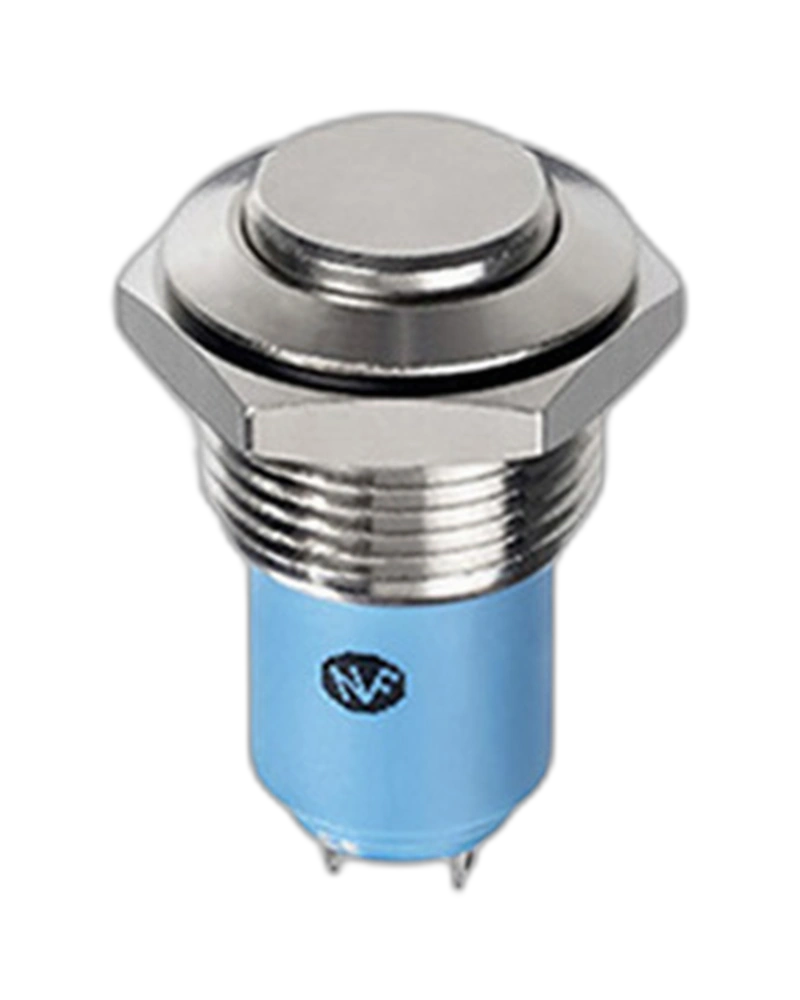

The APEM Panel Switches AV091001A800K is a robust autoswitch designed for industrial applications. Featuring IP65 sealing, 10,000 cycles electrical life at 1 A 250 VAC, and latching action, this switch ensures reliable operation in demanding environments. Its nickel-plated brass construction and silver contacts deliver precise performance across temperatures from -30°C to +70°C.
The APEM Panel Switches AV091001A800K is a high-reliability autoswitch engineered for industrial control systems. This switch combines robust construction with precise electrical performance, featuring IP65 sealing to protect against dust and water, 10,000 cycles of electrical life at 1 A 250 VAC, and a latching action for secure operation. Constructed with nickel-plated brass terminals and silver contacts, it delivers consistent performance in harsh environments with an operating temperature range of -30°C to +70°C. The switch supports quick connect terminals and offers panel sealing options for enhanced durability in industrial settings.
The AV091001A800K delivers reliable electrical performance with an initial contact resistance of 50 mΩ max. It maintains an insulation resistance of 1,000 MΩ min. at 500 VDC and withstands dielectric strength of 2,000 Vrms 50 Hz between terminals and frame. The switch supports 1 A 250 VAC with resistive loads and operates within a temperature range of -30°C to +70°C.
Engineered for industrial use, the switch features a torque range of 1.5 Nm min. to 4 Nm max. for nut tightening. It offers 200,000 cycles of mechanical life and can withstand hand soldering at 300°C for up to 4 seconds. The panel thickness specifications ensure compatibility with standard industrial mounting panels.
The IP65 rating provides comprehensive protection against dust and water ingress. Panel sealing options are available to further enhance durability in harsh environments. The switch operates effectively across a wide temperature range from -30°C to +70°C, making it suitable for diverse industrial conditions.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals 500 Vrms 50 Hz between terminals and frame |
| Electrical life | 10,000 cycles at 1 A 250 VAC |
| Torque | 1.5 Nm min. - 4 Nm max. applied to nut |
| Panel thickness | Ø 16 : 1 (.039) to 6 mm (.236) max.Ø 19 and Ø 22 : 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 200,000 cycles Hand soldering : 300 °C, 4 sec. max. Low level or mechanical life : 200,000 cycles Hand solder |
| Electrical Functions | ON OFF,Bushing Actuator Materials:Nickel-Plated Brass,Contact Materials:Silver,Model:100 |
| Operating temperature | -30 °C to +70 °C |
| Max. current/voltage rating with resistive load | 1 A 250 VAC |
The APEMPanel Switches AV091001A800K is presented using the documented product characteristics available for this model.
