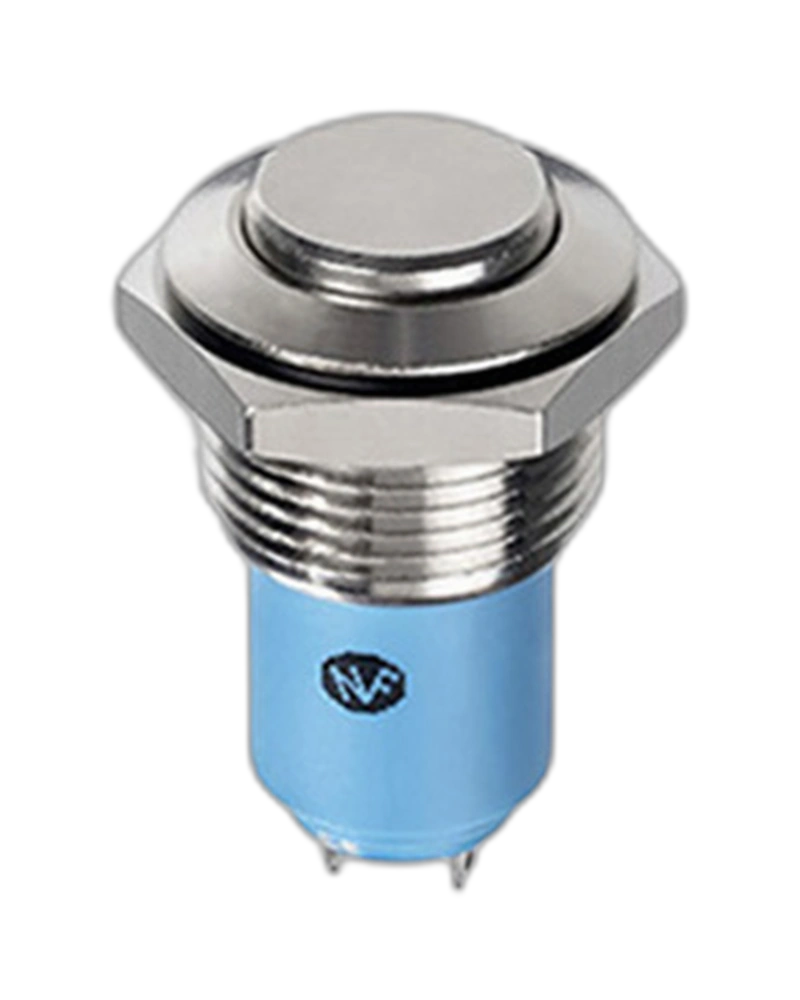

The APEM Panel Switches AV091001A800 is a robust autoswitch designed for industrial applications. Featuring latching action, 3 terminal types, and panel sealing options, it delivers reliable performance with a 200,000-cycle life, 1 A 250 VAC rating, and operating temperatures from -30°C to +70°C. Ideal for demanding environments where durability and precise control are critical.
The APEM Panel Switches AV091001A800 is a high-reliability autoswitch engineered for industrial use, combining latching action with 3 terminal types to ensure precise control in critical applications. This panel switch delivers exceptional durability through a 200,000-cycle mechanical life, operates within a wide temperature range of -30°C to +70°C, and supports 1 A 250 VAC loads with resistive loads. Its quick-connect terminals and panel sealing option make it suitable for harsh environments where reliability and ease of installation are paramount.
The AV091001A800 delivers robust electrical performance with a 1 A 250 VAC rating for resistive loads, ensuring compatibility with standard industrial circuits. It maintains high insulation resistance (1,000 MΩ min. at 500 VDC) and dielectric strength (2,000 Vrms 50 Hz min. between terminals), providing reliable isolation even under demanding conditions. The switch also features an initial contact resistance of 50 mΩ max., minimizing voltage drop during operation.
Engineered for extreme conditions, the AV091001A800 operates across a wide temperature range (-30°C to +70°C) and withstands harsh environments through its panel sealing option. This switch is designed for long-term use with a 200,000-cycle mechanical life, ensuring durability in applications requiring frequent switching without degradation. The product also supports hand soldering up to 300°C for 4 seconds, facilitating maintenance in industrial settings.
Quick-connect terminals simplify installation and reduce assembly time, while the panel sealing option provides protection against dust and moisture. The switch requires a torque of 1.5 Nm min. to 4 Nm max. when tightening the nut, ensuring secure connections without over-tightening. Its latching action allows for one-touch operation, reducing the need for manual reset after each cycle.
| Feature | Specification |
|---|---|
| Panel thickness | Ø 16 : 1 (.039) to 6 mm (.236) max.Ø 19 and Ø 22 : 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 200,000 cycles Hand soldering : 300 °C, 4 sec. max. Low level or mechanical life : 200,000 cycles Hand solder |
| Max. current/voltage rating with resistive load | 1 A 250 VAC |
| Sealing | Unsealed |
| Electrical Functions | ON OFF |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals 500 Vrms 50 Hz between terminals and frame |
| Electrical life | 10,000 cycles at 1 A 250 VAC |
| Torque | 1.5 Nm min. - 4 Nm max. applied to nut |
| Operating temperature | -30 °C to +70 °C |
The APEMPanel Switches AV091001A800 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Panel thickness | Ø 16 : 1 (.039) to 6 mm (.236) max.Ø 19 and Ø 22 : 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 200,000 cycles Hand soldering : 300 °C, 4 sec. max. Low level or mechanical life : 200,000 cycles Hand solder |
| Max. current/voltage rating with resistive load | 1 A 250 VAC |
| Sealing | Unsealed |
| Electrical Functions | ON OFF |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals 500 Vrms 50 Hz between terminals and frame |
| Electrical life | 10,000 cycles at 1 A 250 VAC |
| Torque | 1.5 Nm min. - 4 Nm max. applied to nut |
| Operating temperature | -30 °C to +70 °C |
