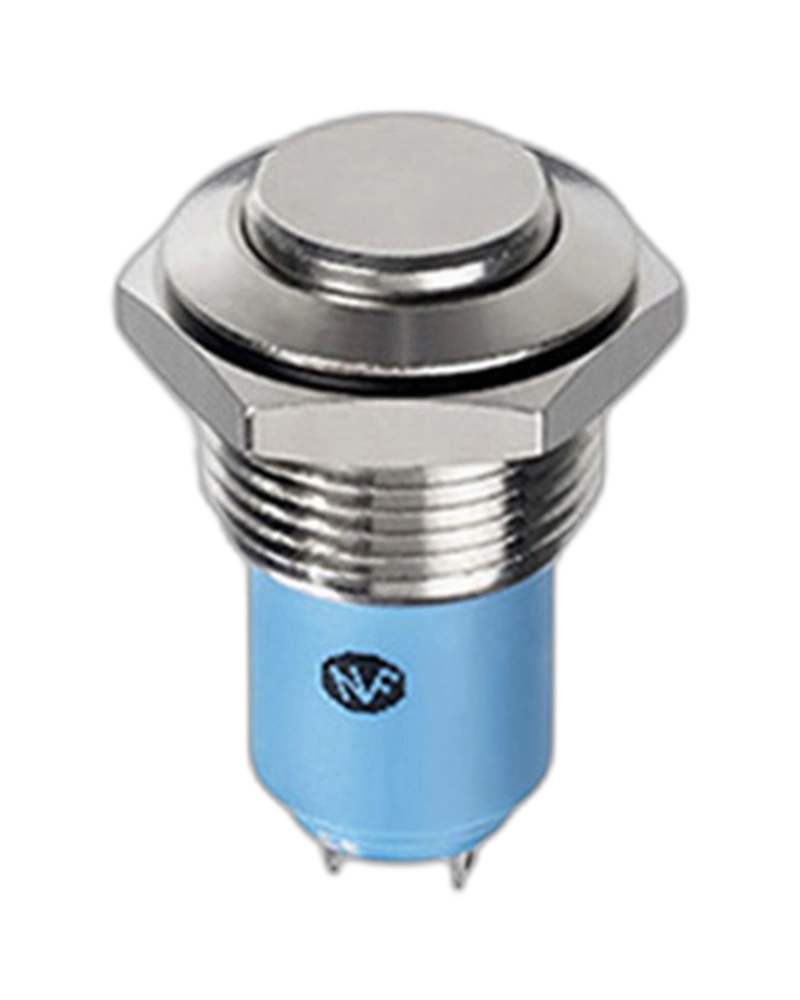

The APEM Panel Switches AV091001A200 is a robust latching autoswitch designed for industrial applications. Featuring IP65 sealing, 10,000 cycles electrical life at 1 A 250 VAC, and nickel-plated brass bushing actuators with silver contacts, this switch ensures reliable operation in harsh environments from -30°C to +70°C. Ideal for demanding automation systems requiring high durability and precise switching.
The APEM Panel Switches AV091001A200 is a high-reliability latching autoswitch engineered for industrial automation systems. This switch combines robust construction with precise electrical performance, delivering exceptional durability and safety in challenging environments. With nickel-plated brass bushing actuators and silver contacts, it provides low contact resistance and high insulation strength, ensuring consistent operation under demanding electrical loads and extreme temperature conditions. The IP65 rating guarantees protection against dust and water, making it suitable for use in industrial panels where environmental resilience is critical.
The AV091001A200 delivers precise electrical switching with a maximum current/voltage rating of 1 A 250 VAC for resistive loads. It maintains low initial contact resistance (50 mΩ max) and provides high insulation resistance (1,000 MΩ min at 500 VDC) and dielectric strength (2,000 Vrms 50 Hz min) between terminals and frame. This ensures reliable operation in high-voltage environments while minimizing electrical noise and arcing risks.
Engineered for extreme conditions, the switch operates within a temperature range of -30°C to +70°C. Its IP65 sealing protects against dust and water ingress, making it suitable for outdoor installations and harsh industrial settings. The robust construction withstands mechanical stress and environmental exposure without compromising performance.
Constructed with nickel-plated brass bushing actuators and silver contacts, the AV091001A200 ensures excellent conductivity and corrosion resistance. The switch features solder lug terminals for secure connections and is designed for hand soldering up to 300°C for 4 seconds, facilitating easy installation in complex systems.
With a latching action, the switch maintains its state without continuous power, reducing wear and extending service life. The electrical life of 10,000 cycles at 1 A 250 VAC and mechanical life of 200,000 cycles ensure long-term reliability in high-demand applications. The switch also supports panel sealing options for enhanced environmental protection.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals 500 Vrms 50 Hz between terminals and frame |
| Electrical life | 10,000 cycles at 1 A 250 VAC |
| Torque | 1.5 Nm min. - 4 Nm max. applied to nut |
| Panel thickness | Ø 16 : 1 (.039) to 6 mm (.236) max.Ø 19 and Ø 22 : 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 200,000 cycles Hand soldering : 300 °C, 4 sec. max. Low level or mechanical life : 200,000 cycles Hand solder |
| Electrical Functions | ON OFF,Bushing Actuator Materials:Nickel-Plated Brass,Contact Materials:Silver,Model:100 |
| Operating temperature | -30 °C to +70 °C |
| Max. current/voltage rating with resistive load | 1 A 250 VAC |
The APEMPanel Switches AV091001A200 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals 500 Vrms 50 Hz between terminals and frame |
| Electrical life | 10,000 cycles at 1 A 250 VAC |
| Torque | 1.5 Nm min. - 4 Nm max. applied to nut |
| Panel thickness | Ø 16 : 1 (.039) to 6 mm (.236) max.Ø 19 and Ø 22 : 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 200,000 cycles Hand soldering : 300 °C, 4 sec. max. Low level or mechanical life : 200,000 cycles Hand solder |
| Electrical Functions | ON OFF,Bushing Actuator Materials:Nickel-Plated Brass,Contact Materials:Silver,Model:100 |
| Operating temperature | -30 °C to +70 °C |
| Max. current/voltage rating with resistive load | 1 A 250 VAC |
