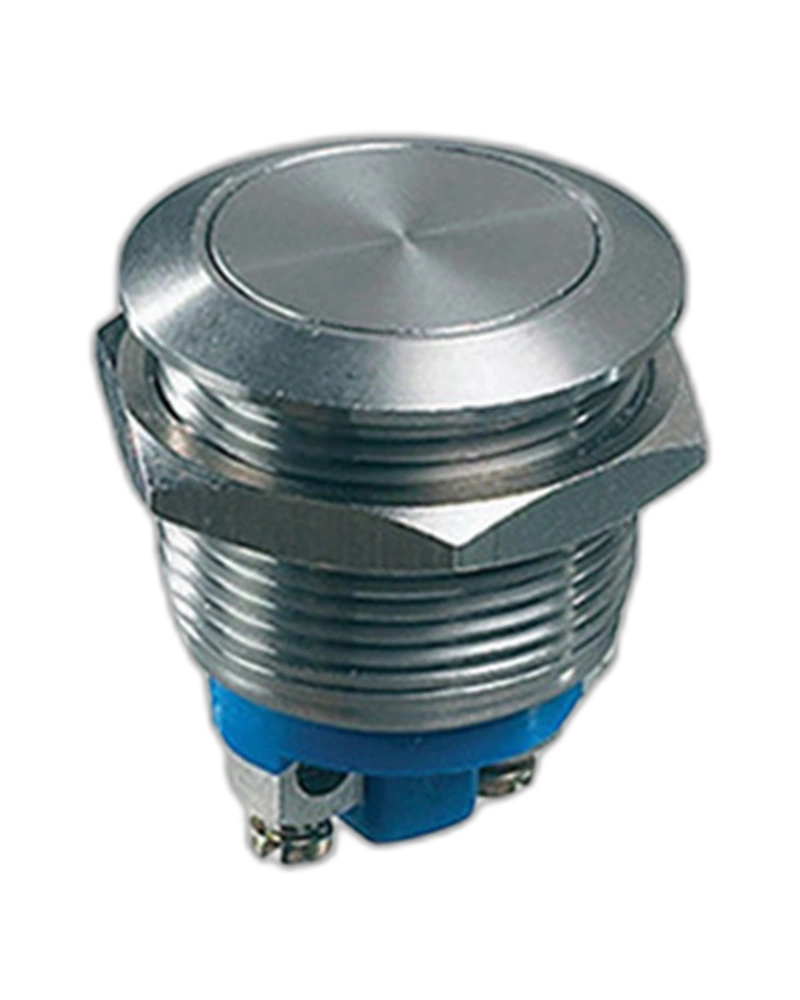

The APEM Panel Switches AV090003A900 is a robust, sealed momentary NC/NO switch designed for industrial applications. With a long life of 1,000,000 cycles, IP65 and IP69K sealing, and reliable performance across -30°C to +70°C, this autoswitch ensures durability in harsh environments. Ideal for demanding electrical systems requiring high contact reliability and resistance to dust and water.
The APEM Panel Switches AV090003A900 is a high-reliability, sealed momentary NC/NO autoswitch engineered for industrial control systems. This switch delivers exceptional performance with a minimum insulation resistance of 1,000 MΩ at 500 VDC, dielectric strength of 2,000 Vrms 50 Hz, and a contact resistance of 50 mΩ max. Its robust construction supports operation from -30°C to +70°C and features a long life of 1,000,000 cycles for resistive loads. The IP65 and IP69K sealing ensures protection against dust and water ingress, making it suitable for demanding environments where reliability is critical.
The AV090003A900 delivers precise electrical performance with a minimum insulation resistance of 1,000 MΩ at 500 VDC and dielectric strength of 2,000 Vrms 50 Hz between terminals and frame. It supports a maximum contact resistance of 50 mΩ and operates within a current rating of 4 A 12 VDC for A contacts, ensuring stable performance under resistive loads.
Engineered for extreme conditions, this switch operates across a wide temperature range from -30°C to +70°C. Its IP65 and IP69K sealing provides robust protection against dust, water, and harsh industrial environments, making it ideal for outdoor installations and high-contamination settings.
The switch features a long mechanical life of 1,000,000 cycles, with a torque specification of 1.5 Nm min. to 4 Nm max. for terminal tightening. This ensures reliable operation over extended periods without degradation in performance.
Designed for industrial control panels, the AV090003A900 is particularly suited for applications requiring momentary NC/NO switching in environments with high vibration, dust, or moisture. Its compact size (30 mm x 30 mm) and panel cut-out options (Ø 19.2 mm or Ø 22.2 mm) facilitate seamless integration into existing systems.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame 2,000 Vrms 50 Hz min. between terminals |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 11 mm (.433) max. Low level or mechanical life : 1,000,000 cycles Hand soldering : 300 °C, 3 sec. max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| mounting | 30 mm x 30 mm (1.181x1.181) Low level or mechanical life : 1,000,000 cycles Hand soldering : 300 °C, 3 sec. max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| Operating temperature | -30 °C to +70 °C |
| Max. current/voltage rating with resistive load | - A contacts : 4 A 12 VDC, 500,000 cycles- C contacts : 2 A 48 VDC, 10,000 cycles |
| Sealing | Unsealed |
| Electrical Functions | Normally Open (NO) |
The APEMPanel Switches AV090003A900 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame 2,000 Vrms 50 Hz min. between terminals |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 11 mm (.433) max. Low level or mechanical life : 1,000,000 cycles Hand soldering : 300 °C, 3 sec. max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| mounting | 30 mm x 30 mm (1.181x1.181) Low level or mechanical life : 1,000,000 cycles Hand soldering : 300 °C, 3 sec. max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| Operating temperature | -30 °C to +70 °C |
| Max. current/voltage rating with resistive load | - A contacts : 4 A 12 VDC, 500,000 cycles- C contacts : 2 A 48 VDC, 10,000 cycles |
| Sealing | Unsealed |
| Electrical Functions | Normally Open (NO) |
