APEM Autoswitches Switches and Pushbutton

Panel Switches AV0830C940 – Autoswitches UAE

The AV0830C940 Panel Switch features brass silver plated contacts for optimal conductivity, screw terminals for easy installation, and is ideal for industrial and consumer applications.

Brand APEM
Category Autoswitches
Subcategory Switches and Pushbutton

Interested in this product? Panel Switches AV0830C940

Product insights

Everything you need to evaluate this product

Explore performance details, construction highlights, applications, and technical information in one clear overview.

Quality assured Technical details Industrial use Expert support

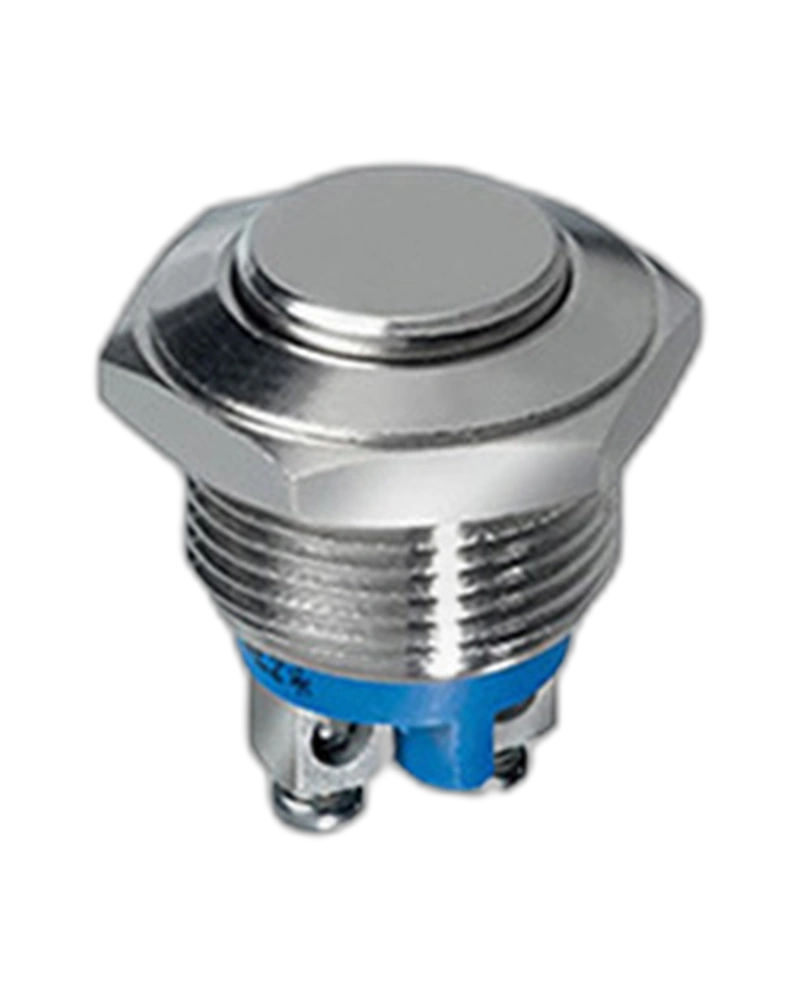

Panel Switches AV0830C940

The AV0830C940 Panel Switch features brass silver plated contacts for optimal conductivity, screw terminals for easy installation, and is ideal for industrial and consumer applications. Select Quantity

Key Features

Insulation resistance: 1,000 MΩ min. at 500 VDC
Dielectric strength: 2,000 Vrms 50 Hz min. between terminals and frame
Operating temperature: -30 °C to +70 °C Travel : 1.60 mm (.063) ± 0.3 mm (.011)
Torque: 1.5 Nm min.- 4 Nm max. applied to nut
Panel thickness: 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles Panel cut-out : Ø 16.2 mm (.637) Min. pitch for matrix
Initial contact resistance: 50 mΩ max.
Max. current/voltage rating with resistive load: 200 mA 48 VDC - 100 mA 48 VDC
Case: Short
Terminals: Screw
Electrical Functions: Normally Open (NO)

Technical Specifications

Feature	Specification
Environmental Specifications Operating temperature	-30 °C to +70 °C

Feature	Specification
Insulation resistance	1,000 MΩ min. at 500 VDC
Dielectric strength	2,000 Vrms 50 Hz min. between terminals and frame
Operating temperature	-30 °C to +70 °C Travel : 1.60 mm (.063) ± 0.3 mm (.011)
Torque	1.5 Nm min.- 4 Nm max. applied to nut
Panel thickness	1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles Panel cut-out : Ø 16.2 mm (.637) Min. pitch for matrix
Max. current/voltage rating with resistive load	200 mA 48 VDC - 100 mA 48 VDC
Electrical Functions	Normally Open (NO)
