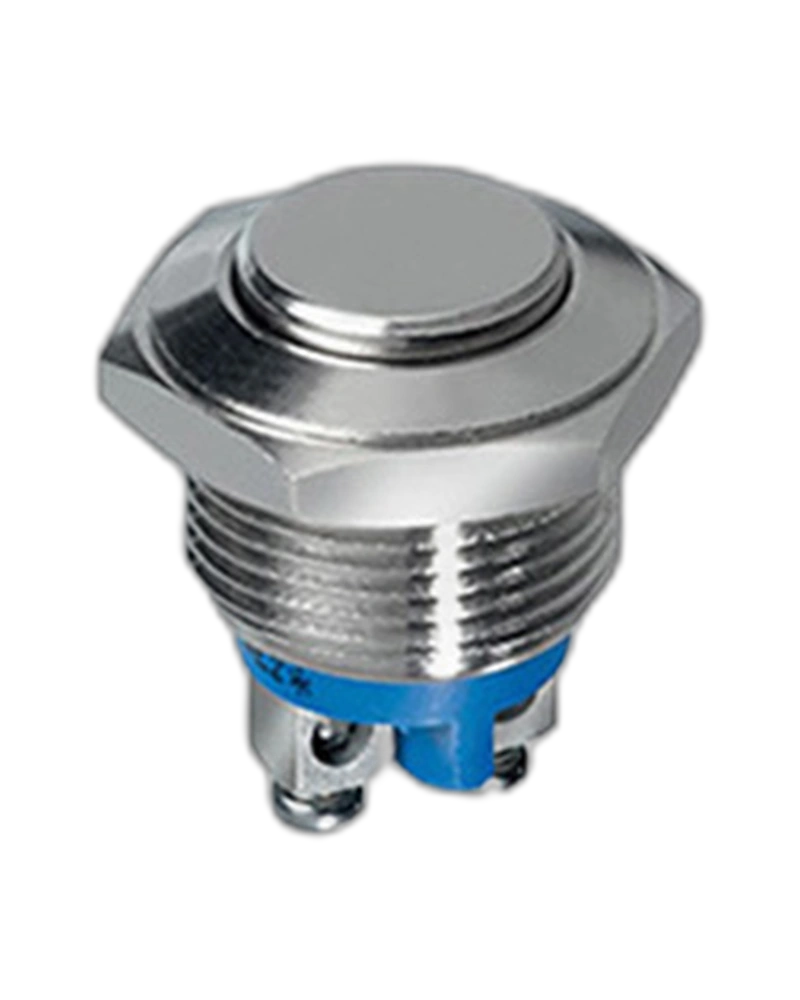

The APEM Panel Switches AV0830C900K is a robust, high-reliability autoswitch designed for industrial applications. With an IP65 sealing rating, 1,000 MΩ insulation resistance at 500 VDC, and a 2,000 Vrms dielectric strength, this switch ensures reliable operation in demanding environments. It supports 1,000,000 cycles for low-level or mechanical life, making it ideal for continuous use in industrial control systems.
The APEM Panel Switches AV0830C900K is a high-performance, normally open (NO) autoswitch engineered for industrial environments. This switch delivers exceptional durability with a wide operating temperature range from -30°C to +70°C, ensuring reliable performance in extreme conditions. Its IP65 sealing rating provides protection against dust and water, while the 1,000 MΩ insulation resistance at 500 VDC and 2,000 Vrms dielectric strength guarantee electrical safety and robustness. The switch is designed for applications requiring high cycle life, with a mechanical life of 1,000,000 cycles, and features a short case with screw terminals for secure installation. The AV0830C900K is a critical component for industrial control systems where reliability and longevity are paramount.
The AV0830C900K operates within a 48 VDC range with a maximum current rating of 200 mA for resistive loads. It features a low initial contact resistance of 50 mΩ max, ensuring minimal voltage drop during operation. The switch is rated for 1,000,000 cycles, providing long-term reliability in industrial settings where frequent switching is required.
Engineered for harsh industrial environments, the AV0830C900K operates across a wide temperature range from -30°C to +70°C. Its IP65 sealing rating protects against dust and water ingress, making it suitable for outdoor installations and high-moisture environments without compromising performance.
The switch has a travel distance of 1.60 mm (±0.3 mm) and requires a torque of 1.5 Nm to 4 Nm for secure nut installation. The panel cut-out diameter is Ø16.2 mm (637 mm), and the minimum pitch for matrix applications is standard for compatibility with industrial panel layouts.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame |
| Operating temperature | -30 °C to +70 °C Travel : 1.60 mm (.063) ± 0.3 mm (.011) |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles Panel cut-out : Ø 16.2 mm (.637) Min. pitch for matrix |
| Max. current/voltage rating with resistive load | 200 mA 48 VDC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
The APEMPanel Switches AV0830C900K is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame |
| Operating temperature | -30 °C to +70 °C Travel : 1.60 mm (.063) ± 0.3 mm (.011) |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles Panel cut-out : Ø 16.2 mm (.637) Min. pitch for matrix |
| Max. current/voltage rating with resistive load | 200 mA 48 VDC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
