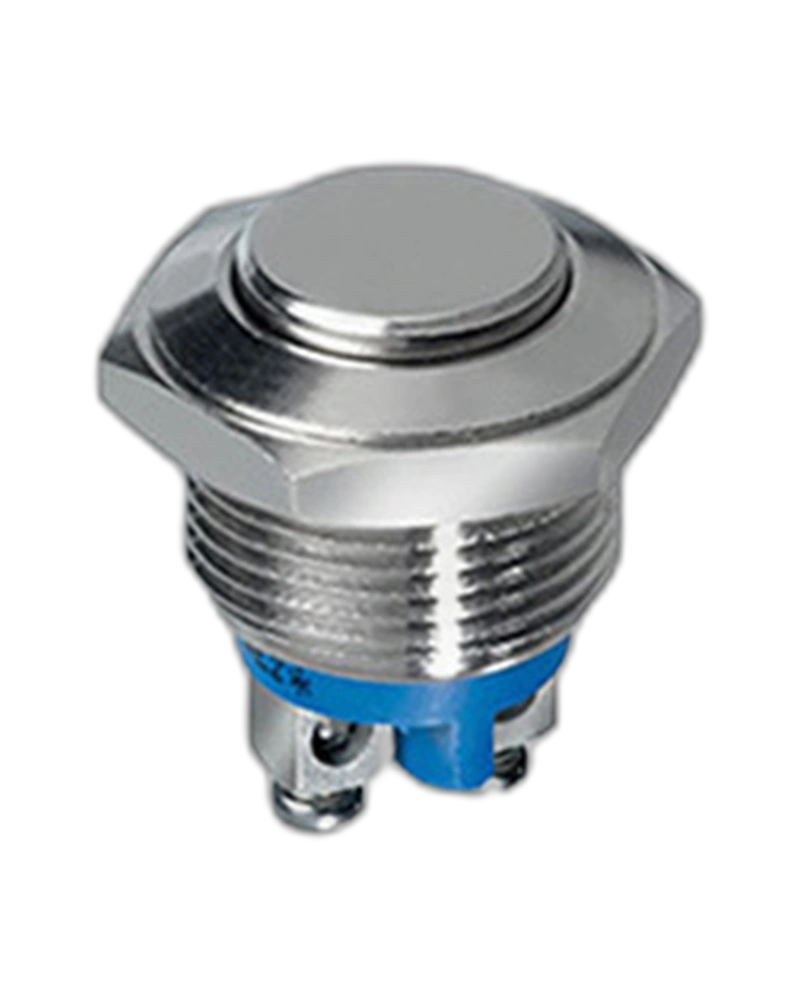

The APEM Panel Switches AV0730C970K is a security pushbutton switch designed for industrial applications. With an IP65 sealing rating, 1,000,000 cycle mechanical life, and a 200 mA 48 VDC current rating, this switch ensures reliable operation in harsh environments while maintaining precise electrical performance.
The APEM Panel Switches AV0730C970K is a robust, security pushbutton switch engineered for demanding industrial environments. Featuring an IP65 rating for dust and water resistance, this switch delivers exceptional durability with a mechanical life of 1,000,000 cycles and a maximum current rating of 200 mA at 48 VDC. Its compact design, with a travel of 1.60 mm and a 50 mΩ max contact resistance, ensures precise control and long-term reliability in critical applications.
The AV0730C970K delivers precise electrical control with a maximum current rating of 200 mA at 48 VDC for resistive loads. Its initial contact resistance is limited to 50 mΩ max, ensuring minimal voltage drop during operation. The switch maintains a dielectric strength of 2,000 Vrms 50 Hz between terminals and frame, providing robust electrical isolation even under high-voltage conditions.
Engineered for extreme conditions, the AV0730C970K operates within a temperature range of -30 °C to +70 °C. Its IP65 rating guarantees protection against dust and water ingress, making it suitable for outdoor installations and harsh industrial settings. The switch also features a 1.60 mm travel distance with a tolerance of ±0.3 mm, ensuring consistent performance across varying environmental conditions.
With a mechanical life of 1,000,000 cycles, the AV0730C970K is designed for long-term reliability in high-traffic applications. The switch requires a torque range of 1.5 Nm to 4 Nm for secure terminal connections, ensuring stable operation without compromising safety or performance. Its compact panel thickness (1 mm to 6 mm max) allows for flexible integration into various industrial panels.
The AV0730C970K includes a panel cut-out of Ø 16.2 mm and a minimum pitch for matrix applications, facilitating easy installation. Screw terminals ensure secure connections, while the switch supports both flat and curved actuators for ergonomic use. Optional IP65 sealing enhances protection in high-dust or wet environments, making it ideal for automation systems requiring high reliability.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame |
| Operating temperature | -30 °C to +70 °C Travel : 1.60 mm (.063) ± 0.3 mm (.011) |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles Panel cut-out : Ø 16.2 mm (.637) Min. pitch for matrix |
| Max. current/voltage rating with resistive load | 200 mA 48 VDC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
The APEMPanel Switches AV0730C970K is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame |
| Operating temperature | -30 °C to +70 °C Travel : 1.60 mm (.063) ± 0.3 mm (.011) |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles Panel cut-out : Ø 16.2 mm (.637) Min. pitch for matrix |
| Max. current/voltage rating with resistive load | 200 mA 48 VDC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
