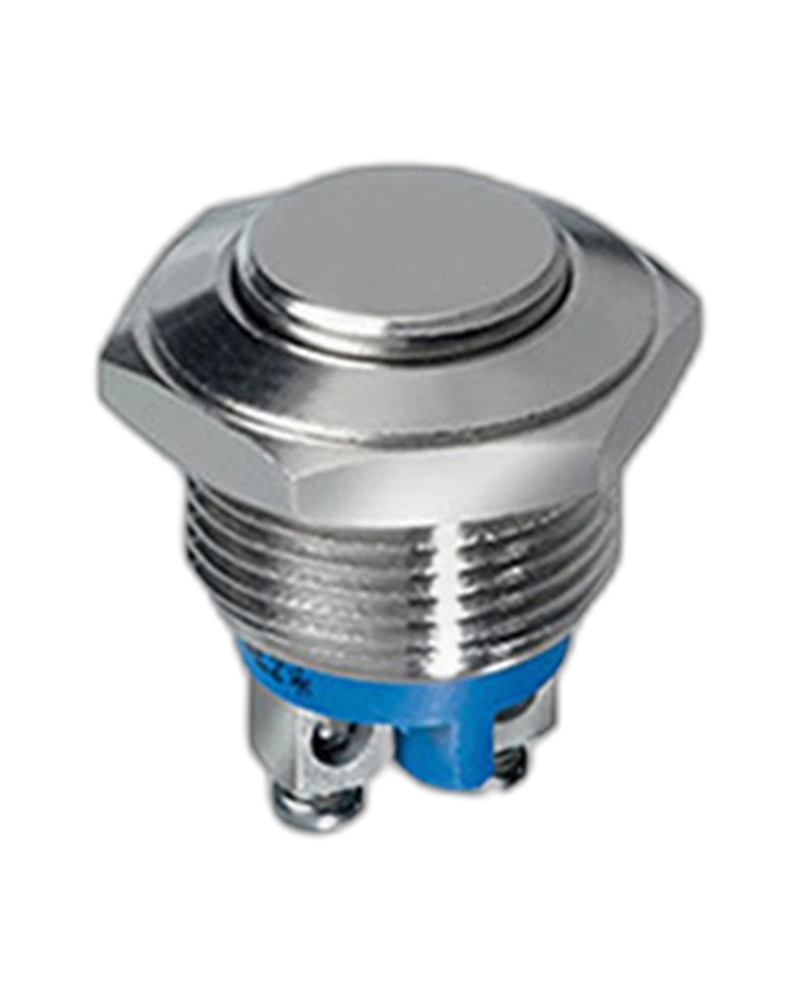

The APEM Panel Switches AV0630C940K is a robust autoswitch designed for industrial applications. This switch features high insulation resistance (1,000 MΩ min. at 500 VDC), dielectric strength (2,000 Vrms 50 Hz min.), and a wide operating temperature range (-30 °C to +70 °C). It delivers reliable performance with a mechanical life of 1,000,000 cycles and low contact resistance (50 mΩ max.).
The APEM Panel Switches AV0630C940K is a high-reliability autoswitch engineered for demanding industrial environments. This product combines exceptional electrical safety with long-term durability, ensuring consistent performance across a wide temperature range from -30 °C to +70 °C. Its robust construction supports up to 1,000,000 operational cycles, making it ideal for applications requiring frequent switching without degradation. The switch maintains low contact resistance (50 mΩ max.) and high insulation resistance (1,000 MΩ min. at 500 VDC) to ensure safe and efficient operation in critical systems.
The AV0630C940K delivers exceptional electrical safety with a minimum insulation resistance of 1,000 MΩ at 500 VDC and dielectric strength of 2,000 Vrms 50 Hz. These specifications ensure reliable isolation between terminals and the frame, critical for preventing electrical faults in high-voltage industrial systems.
Engineered for long-term reliability, this switch supports up to 1,000,000 cycles of operation. The torque range of 1.5 Nm min. to 4 Nm max. ensures secure installation without compromising performance, while the panel thickness compatibility (1 mm to 6 mm max.) accommodates diverse mounting requirements.
Operating effectively across a wide temperature range from -30 °C to +70 °C, the AV0630C940K maintains performance in extreme conditions. This makes it suitable for both cold and hot industrial environments without degradation.
The switch exhibits low initial contact resistance (50 mΩ max.), ensuring minimal power loss during operation. This characteristic is vital for applications requiring precise current control and efficient energy transfer.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles Panel cut-out : Ø 16.2 mm (.637) Min. pitch for matrix |
| Operating temperature | -30 °C to +70 °C |
The APEMPanel Switches AV0630C940K is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles Panel cut-out : Ø 16.2 mm (.637) Min. pitch for matrix |
| Operating temperature | -30 °C to +70 °C |
