Explore performance details, construction highlights, applications, and technical information in one clear overview.

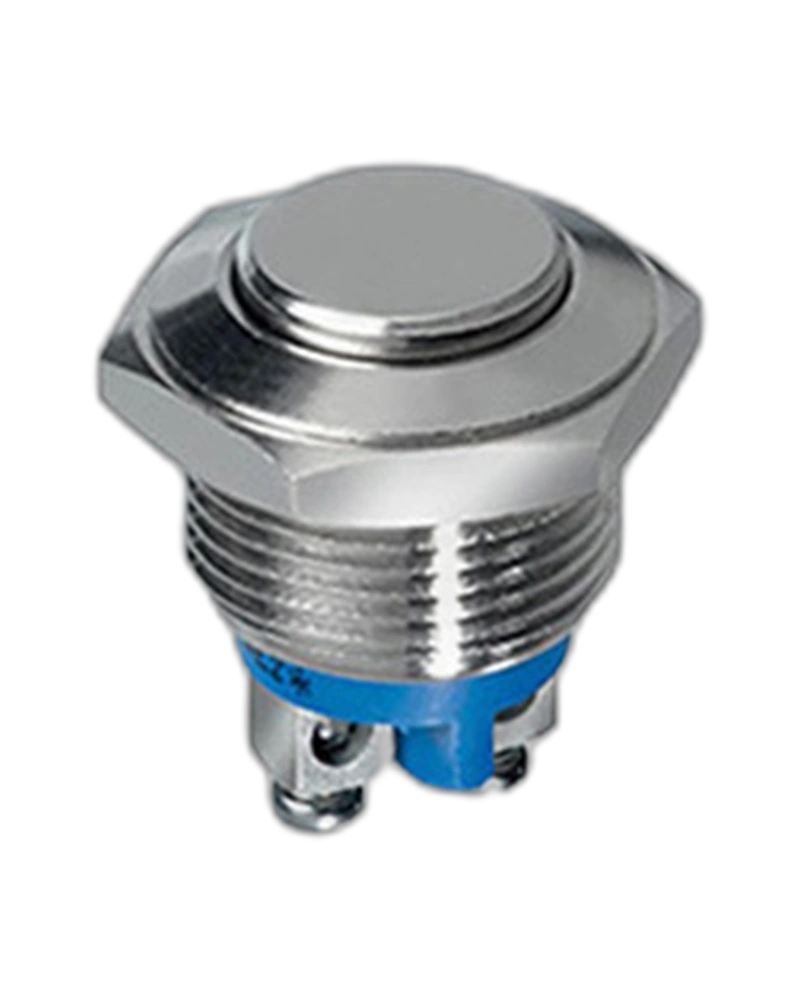

The APEM Panel Switches AV0630C900K is a robust, high-reliability autoswitch designed for industrial applications. With an IP65 sealing rating, 1,000 MΩ insulation resistance, and 2,000 Vrms dielectric strength, this switch ensures reliable operation in demanding environments. Ideal for use with low-power DC circuits up to 48 VDC, it delivers 1,000,000 cycles of mechanical life and precise contact resistance for consistent performance.
The APEM Panel Switches AV0630C900K is a high-performance, normally open (NO) autoswitch engineered for industrial control systems. This switch combines exceptional environmental resilience with precise electrical characteristics, making it suitable for applications requiring reliable operation in harsh conditions. Its IP65 sealing ensures protection against dust and water, while the 1,000 MΩ insulation resistance and 2,000 Vrms dielectric strength guarantee robust electrical performance. The switch supports low-power DC circuits up to 48 VDC and is rated for 1,000,000 cycles of mechanical life, ensuring long-term reliability in critical industrial environments.
The AV0630C900K delivers precise electrical characteristics for reliable operation in industrial settings. With a maximum current rating of 200 mA at 48 VDC for resistive loads and 100 mA at 48 VDC for other loads, this switch ensures compatibility with low-power DC systems. The initial contact resistance is limited to 50 mΩ maximum, minimizing voltage drop and ensuring consistent circuit performance. The switch also features a 1,000 MΩ minimum insulation resistance at 500 VDC, providing robust protection against electrical faults.
Engineered for demanding environments, the AV0630C900K includes an IP65 sealing rating that protects against dust and water ingress. This rating ensures the switch remains functional in industrial settings where exposure to environmental elements is common. The switch operates effectively across a wide temperature range of -30 °C to +70 °C, making it suitable for both cold and hot industrial conditions without compromising performance.
The AV0630C900K is designed for long-term mechanical reliability with a mechanical life of 1,000,000 cycles. This high cycle count ensures the switch maintains consistent performance over extended periods of use. The switch features a travel range of 1.60 mm (±0.3 mm) and a torque range of 1.5 Nm to 4 Nm for secure installation, ensuring precise and repeatable operation without mechanical failure.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame |
| Operating temperature | -30 °C to +70 °C Travel : 1.60 mm (.063) ± 0.3 mm (.011) |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles Panel cut-out : Ø 16.2 mm (.637) Min. pitch for matrix |
| Max. current/voltage rating with resistive load | 200 mA 48 VDC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
The APEMPanel Switches AV0630C900K is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame |
| Operating temperature | -30 °C to +70 °C Travel : 1.60 mm (.063) ± 0.3 mm (.011) |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles Panel cut-out : Ø 16.2 mm (.637) Min. pitch for matrix |
| Max. current/voltage rating with resistive load | 200 mA 48 VDC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
