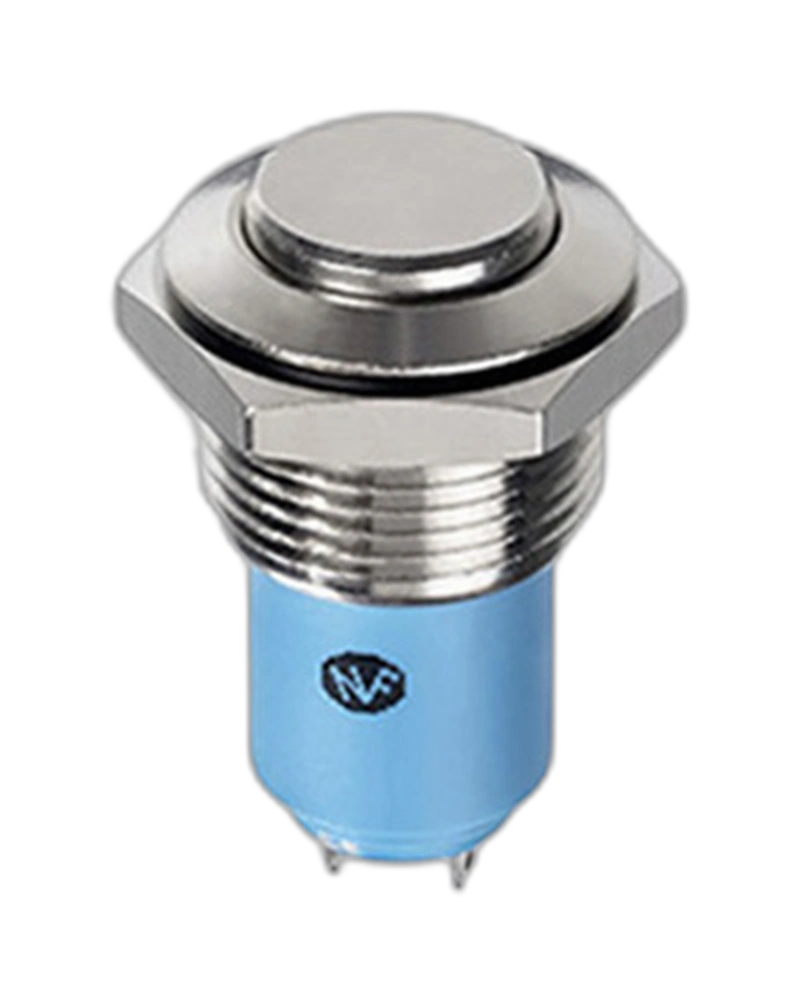

The APEM Panel Switches AV061001A800K is a robust autoswitch designed for industrial applications. Featuring IP65 sealing, 10,000 cycles electrical life at 1 A 250 VAC, and latching action, this switch ensures reliable operation in demanding environments. Its nickel-plated brass construction and silver contacts deliver precise performance across temperatures from -30°C to +70°C.
The APEM Panel Switches AV061001A800K is a high-reliability autoswitch engineered for industrial control systems. This switch combines robust construction with precise electrical performance, featuring IP65 sealing to protect against dust and water, 10,000 cycles of electrical life at 1 A 250 VAC, and latching action for consistent operation. Constructed with nickel-plated brass terminals and silver contacts, it delivers low contact resistance (50 mΩ max) and high insulation resistance (1,000 MΩ min. at 500 VDC). The switch operates within a temperature range of -30°C to +70°C and supports quick connect terminals for easy installation. Its panel sealing option ensures suitability for harsh environments while maintaining long-term reliability.
The AV061001A800K delivers precise electrical performance with a maximum contact resistance of 50 mΩ and an insulation resistance of 1,000 MΩ min. at 500 VDC. It withstands dielectric strength testing at 2,000 Vrms 50 Hz between terminals and frame, ensuring reliable operation under high-voltage conditions. The switch supports electrical life of 10,000 cycles at 1 A 250 VAC with resistive loads, making it suitable for applications requiring frequent switching.
Engineered for extreme conditions, the AV061001A800K operates within a temperature range of -30°C to +70°C. Its IP65 sealing protects against dust and water ingress, while the panel sealing option enhances durability in harsh industrial environments. The switch is designed for use in applications where exposure to environmental factors is a concern.
Constructed with nickel-plated brass terminals and silver contacts, the AV061001A800K ensures excellent conductivity and corrosion resistance. The switch features quick connect terminals for simplified installation and robust mechanical design to withstand operational stresses. Torque specifications (1.5 Nm min. - 4 Nm max.) ensure secure fastening without compromising performance.
This autoswitch is ideal for industrial control panels where reliable switching is critical. The quick connect terminals simplify installation, while the panel sealing option allows for integration into environments requiring dust and water protection. The switch supports 200,000 cycles for mechanical life, ensuring longevity in demanding applications.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals 500 Vrms 50 Hz between terminals and frame |
| Electrical life | 10,000 cycles at 1 A 250 VAC |
| Torque | 1.5 Nm min. - 4 Nm max. applied to nut |
| Panel thickness | Ø 16 : 1 (.039) to 6 mm (.236) max.Ø 19 and Ø 22 : 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 200,000 cycles Hand soldering : 300 °C, 4 sec. max. Low level or mechanical life : 200,000 cycles Hand solder |
| Electrical Functions | ON OFF,Bushing Actuator Materials:Nickel-Plated Brass,Contact Materials:Silver,Model:100 |
| Operating temperature | -30 °C to +70 °C |
| Max. current/voltage rating with resistive load | 1 A 250 VAC |
The APEMPanel Switches AV061001A800K is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals 500 Vrms 50 Hz between terminals and frame |
| Electrical life | 10,000 cycles at 1 A 250 VAC |
| Torque | 1.5 Nm min. - 4 Nm max. applied to nut |
| Panel thickness | Ø 16 : 1 (.039) to 6 mm (.236) max.Ø 19 and Ø 22 : 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 200,000 cycles Hand soldering : 300 °C, 4 sec. max. Low level or mechanical life : 200,000 cycles Hand solder |
| Electrical Functions | ON OFF,Bushing Actuator Materials:Nickel-Plated Brass,Contact Materials:Silver,Model:100 |
| Operating temperature | -30 °C to +70 °C |
| Max. current/voltage rating with resistive load | 1 A 250 VAC |
