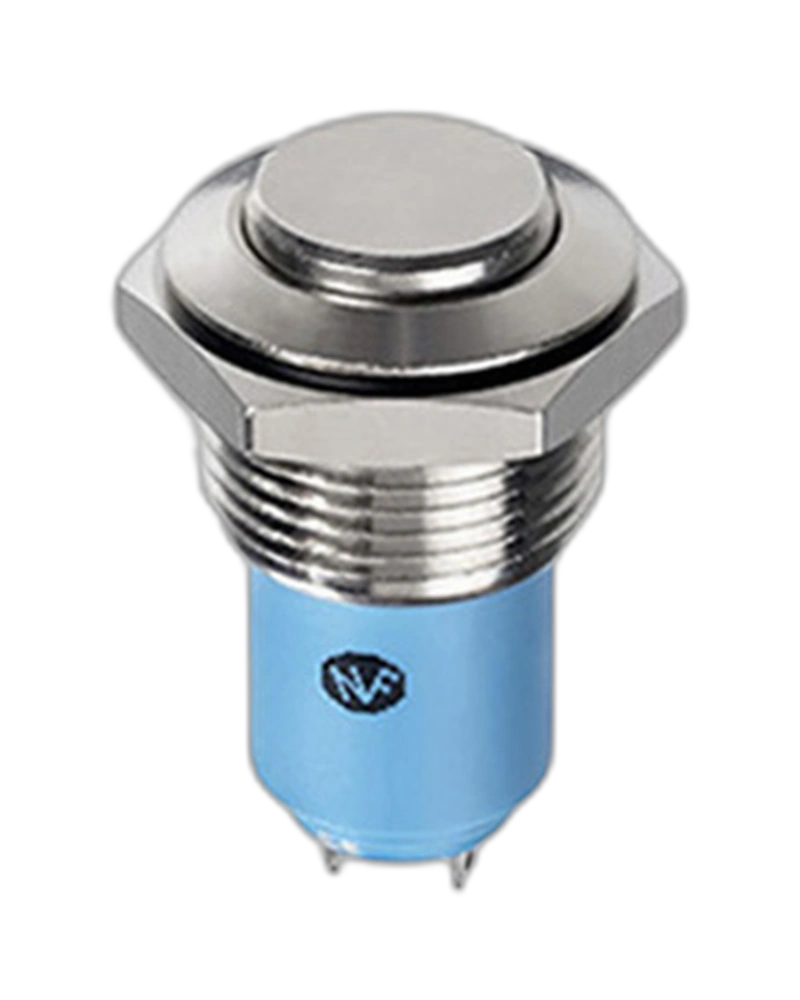

The APEM Panel Switches AV061001A240K is a robust autoswitch designed for industrial applications. Featuring IP65 sealing, 10,000 electrical cycles at 1A 250VAC, and latching action, this switch ensures reliable operation in demanding environments. Ideal for machinery and control systems requiring high durability and safety.
The APEM Panel Switches AV061001A240K is a high-performance autoswitch engineered for industrial use, combining reliability with ease of integration. With IP65 sealing to protect against dust and water, this switch delivers 10,000 electrical cycles at 1A 250VAC and features latching action for secure operation. Its stainless steel construction and silver contacts ensure long-term performance in harsh conditions, making it suitable for machinery, automation systems, and control panels where durability and safety are critical.
The AV061001A240K operates within a voltage range of 250 VAC at 1 A, with an electrical life of 10,000 cycles. It features an initial contact resistance of 50 mΩ max and insulation resistance of 1,000 MΩ min at 500 VDC. Dielectric strength is 2,000 Vrms 50 Hz min between terminals and frame, ensuring robust electrical isolation.
Engineered for extreme conditions, this switch operates between -30°C and +70°C. Its IP65 rating provides dust and water resistance, while the panel sealing option enhances protection in harsh environments. The switch is also suitable for low-level applications with 200,000 mechanical cycles.
Installation requires a torque of 1.5 Nm min. to 4 Nm max. applied to the nut. The panel thickness compatibility ranges from 16 mm (Ø 16) to 6 mm max. for standard models, and 19 mm (Ø 19) to 9 mm max. for larger variants. Hand soldering is supported at 300°C for up to 4 seconds.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals 500 Vrms 50 Hz between terminals and frame |
| Electrical life | 10,000 cycles at 1 A 250 VAC |
| Torque | 1.5 Nm min. - 4 Nm max. applied to nut |
| Panel thickness | Ø 16 : 1 (.039) to 6 mm (.236) max.Ø 19 and Ø 22 : 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 200,000 cycles Hand soldering : 300 °C, 4 sec. max. Low level or mechanical life : 200,000 cycles Hand solder |
| Electrical Functions | ON OFF Bushing Actuator Materials: Stainless Steel Contact Materials: Silver Model: 100 |
| Operating temperature | -30 °C to +70 °C |
| Max. current/voltage rating with resistive load | 1 A 250 VAC |
The APEMPanel Switches AV061001A240K is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals 500 Vrms 50 Hz between terminals and frame |
| Electrical life | 10,000 cycles at 1 A 250 VAC |
| Torque | 1.5 Nm min. - 4 Nm max. applied to nut |
| Panel thickness | Ø 16 : 1 (.039) to 6 mm (.236) max.Ø 19 and Ø 22 : 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 200,000 cycles Hand soldering : 300 °C, 4 sec. max. Low level or mechanical life : 200,000 cycles Hand solder |
| Electrical Functions | ON OFF Bushing Actuator Materials: Stainless Steel Contact Materials: Silver Model: 100 |
| Operating temperature | -30 °C to +70 °C |
| Max. current/voltage rating with resistive load | 1 A 250 VAC |
