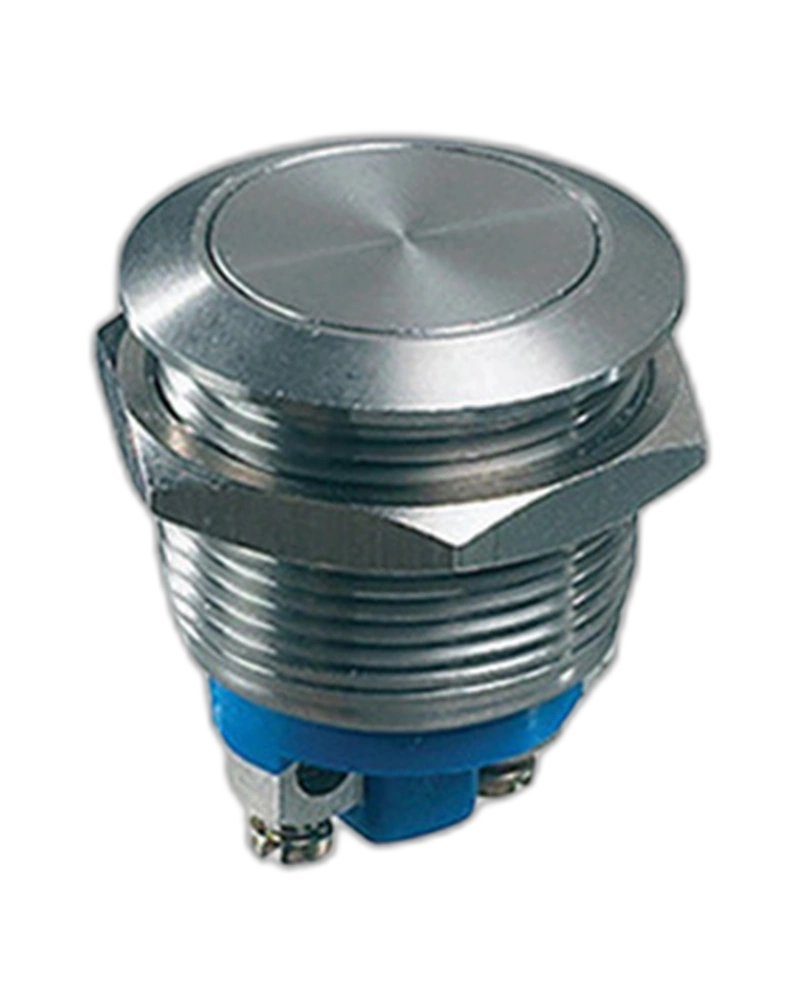

AV031003C900K Reliable AV031003C900K Panel Switch with brass silver-plated contacts for excellent conductivity. Quick installation with screw terminals, ideal for industrial and electronic applications. Select Quantity
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame2,000 Vrms 50 Hz min. between terminals |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 11 mm (.433) max. Low level or mechanical life : 1,000,000 cycles Hand soldering : 300 °C, 3 sec. max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| Initial contact resistance | 50 mΩ max. |
| Operating temperature | -30 °C to +70 °C |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame2,000 Vrms 50 Hz min. between terminals |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 11 mm (.433) max. Low level or mechanical life : 1,000,000 cycles Hand soldering : 300 °C, 3 sec. max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| Operating temperature | -30 °C to +70 °C |
