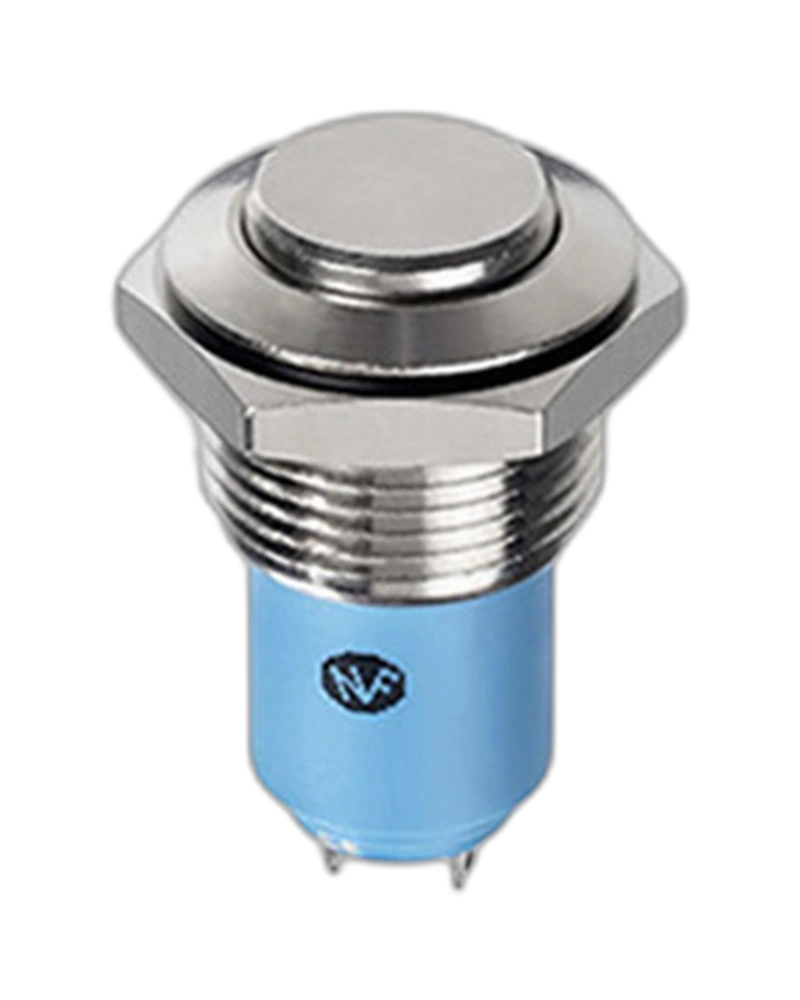

The APEM Panel Switches AV031001A840K is a versatile autoswitch designed for reliable electronic control in industrial applications. Featuring quick-connect terminals, stainless steel construction, and robust electrical specifications including IP65 sealing, 1 A 250 VAC rating, and 10,000 cycles of electrical life, this switch ensures durable performance across demanding environments.
The APEM Panel Switches AV031001A840K is a high-performance autoswitch engineered for industrial use, combining robust construction with precise electrical functionality. This switch delivers reliable ON/OFF control with quick-connect terminals and stainless steel components, ensuring durability in harsh conditions. Its IP65 sealing provides protection against dust and water, while the 1 A 250 VAC current rating and 10,000-cycle electrical life make it suitable for critical applications requiring long-term reliability.
The AV031001A840K delivers precise electrical control with a maximum current rating of 1 A at 250 VAC for resistive loads. It maintains a minimum insulation resistance of 1,000 MΩ at 500 VDC and withstands dielectric strength testing of 2,000 Vrms 50 Hz. The switch achieves 10,000 cycles of electrical life at 1 A 250 VAC, ensuring long-term reliability in demanding applications.
Engineered for extreme conditions, this switch operates within a temperature range of -30 °C to +70 °C. Its IP65 sealing protects against dust and water ingress, making it ideal for outdoor or harsh industrial environments where exposure to contaminants is likely.
Quick-connect terminals simplify installation and reduce assembly time. The switch supports hand soldering at 300 °C for 4 seconds maximum, ensuring compatibility with standard soldering processes. Panel thickness compatibility ranges from 1 mm to 9 mm, accommodating various mounting configurations.
With a mechanical life of 200,000 cycles and an initial contact resistance of 50 mΩ max, the AV031001A840K ensures consistent performance over extended operational periods. The switch is designed for high-reliability applications where frequent switching cycles are required without degradation.
| Feature | Specification |
|---|---|
| Torque | 1.5 Nm min. - 4 Nm max. applied to nut |
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals 500 Vrms 50 Hz between terminals and frame |
| Electrical life | 10,000 cycles at 1 A 250 VAC |
| Panel thickness | Ø 16 : 1 (.039) to 6 mm (.236) max.Ø 19 and Ø 22 : 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 200,000 cycles Hand soldering : 300 °C, 4 sec. max. Low level or mechanical life : 200,000 cycles Hand solder |
| Operating temperature | -30 °C to +70 °C |
| Max. current/voltage rating with resistive load | 1 A 250 VAC |
| Electrical Functions | ON OFF |
The APEMPanel Switches AV031001A840K is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Torque | 1.5 Nm min. - 4 Nm max. applied to nut |
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals 500 Vrms 50 Hz between terminals and frame |
| Electrical life | 10,000 cycles at 1 A 250 VAC |
| Panel thickness | Ø 16 : 1 (.039) to 6 mm (.236) max.Ø 19 and Ø 22 : 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 200,000 cycles Hand soldering : 300 °C, 4 sec. max. Low level or mechanical life : 200,000 cycles Hand solder |
| Operating temperature | -30 °C to +70 °C |
| Max. current/voltage rating with resistive load | 1 A 250 VAC |
| Electrical Functions | ON OFF |
