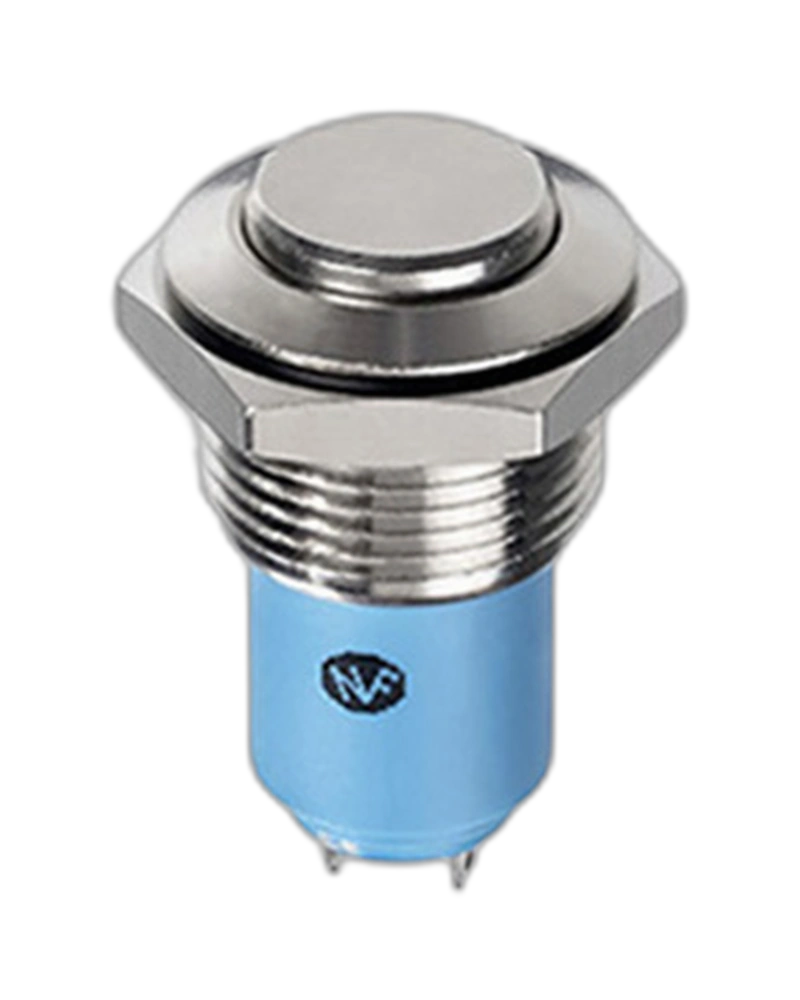

The APEM Panel Switches AV031001A800 is a robust autoswitch designed for industrial applications. Featuring IP65 sealing, 10,000 cycles electrical life at 1A 250VAC, and latching action, this switch ensures reliable operation in demanding environments. Its quick connect terminals and panel sealing option make it ideal for high-reliability systems.
The APEM Panel Switches AV031001A800 is a high-performance autoswitch engineered for industrial use, combining durability with precise functionality. With IP65 sealing to protect against dust and water, this switch delivers 10,000 cycles of electrical life at 1A 250VAC and features latching action for secure operation. The quick connect terminals and panel sealing option ensure seamless integration into harsh environments, while its operating temperature range of -30°C to +70°C and 200,000 mechanical life support long-term reliability in critical applications.
The APEM Panel Switches AV031001A800 operates within a 1A 250VAC current/voltage rating for resistive loads. It provides 10,000 cycles of electrical life at 1A 250VAC and features 1,000 MΩ min. insulation resistance at 500 VDC. Dielectric strength of 2,000 Vrms 50 Hz ensures robust electrical isolation between terminals and the frame.
Engineered for extreme conditions, this switch operates across a wide temperature range from -30°C to +70°C. Its IP65 sealing protects against dust and water ingress, while the panel sealing option further enhances environmental resilience in industrial settings.
The switch delivers 200,000 cycles of mechanical life, ensuring long-term durability. Torque requirements range from 1.5 Nm min. to 4 Nm max. for nut tightening, and it supports hand soldering at 300°C for 4 seconds max.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals 500 Vrms 50 Hz between terminals and frame |
| Electrical life | 10,000 cycles at 1 A 250 VAC |
| Torque | 1.5 Nm min. - 4 Nm max. applied to nut |
| Panel thickness | Ø 16 : 1 (.039) to 6 mm (.236) max.Ø 19 and Ø 22 : 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 200,000 cycles Hand soldering : 300 °C, 4 sec. max. Low level or mechanical life : 200,000 cycles Hand solder |
| Operating temperature | -30 °C to +70 °C |
| Max. current/voltage rating with resistive load | 1 A 250 VAC |
| Electrical Functions | ON OFF |
The APEMPanel Switches AV031001A800 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals 500 Vrms 50 Hz between terminals and frame |
| Electrical life | 10,000 cycles at 1 A 250 VAC |
| Torque | 1.5 Nm min. - 4 Nm max. applied to nut |
| Panel thickness | Ø 16 : 1 (.039) to 6 mm (.236) max.Ø 19 and Ø 22 : 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 200,000 cycles Hand soldering : 300 °C, 4 sec. max. Low level or mechanical life : 200,000 cycles Hand solder |
| Operating temperature | -30 °C to +70 °C |
| Max. current/voltage rating with resistive load | 1 A 250 VAC |
| Electrical Functions | ON OFF |
