Explore performance details, construction highlights, applications, and technical information in one clear overview.

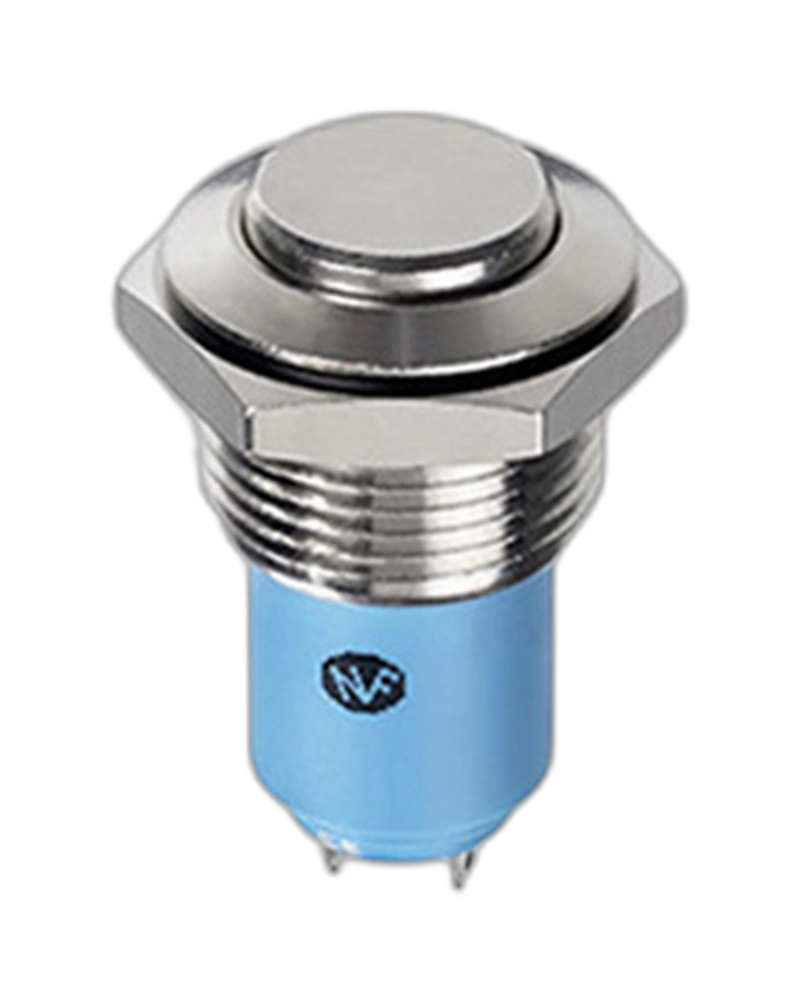

The APEM Panel Switches AV031001A200K is a robust autoswitch designed for industrial applications. This switch features an IP65 sealing rating, 10,000 electrical cycles at 1 A 250 VAC, and operates within a temperature range of -30°C to +70°C. Its solder lug terminals and 200,000 mechanical life make it ideal for demanding environments.
The APEM Panel Switches AV031001A200K is a high-reliability autoswitch engineered for industrial control systems. With an IP65 rating for dust and water resistance, this switch ensures reliable operation in harsh environments. It delivers 10,000 electrical cycles at 1 A 250 VAC and 200,000 mechanical cycles for long-term durability. The switch operates across a wide temperature range of -30°C to +70°C, making it suitable for extreme conditions. Its solder lug terminals and robust construction support seamless integration into industrial automation and control systems.
The APEM Panel Switches AV031001A200K operates with a maximum current/voltage rating of 1 A 250 VAC for resistive loads. It features an initial contact resistance of 50 mΩ max and an insulation resistance of 1,000 MΩ min. at 500 VDC. The dielectric strength is 2,000 Vrms 50 Hz min. between terminals and the frame, ensuring safe electrical isolation under high-voltage conditions.
Engineered for extreme conditions, this switch operates within a temperature range of -30°C to +70°C. Its IP65 rating provides protection against dust and water jets, making it suitable for outdoor installations and industrial environments where exposure to contaminants is likely.
The switch demonstrates exceptional mechanical resilience with a rated life of 200,000 cycles for low-level or mechanical operations. The torque requirement for installation ranges from 1.5 Nm min. to 4 Nm max. applied to the nut, ensuring secure and reliable mounting without damage.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals 500 Vrms 50 Hz between terminals and frame |
| Electrical life | 10,000 cycles at 1 A 250 VAC |
| Torque | 1.5 Nm min. - 4 Nm max. applied to nut |
| Panel thickness | Ø 16 : 1 (.039) to 6 mm (.236) max.Ø 19 and Ø 22 : 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 200,000 cycles Hand soldering : 300 °C, 4 sec. max. Low level or mechanical life : 200,000 cycles Hand solder |
| Operating temperature | -30 °C to +70 °C |
| Max. current/voltage rating with resistive load | 1 A 250 VAC |
| Electrical Functions | ON OFF |
The APEMPanel Switches AV031001A200K is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals 500 Vrms 50 Hz between terminals and frame |
| Electrical life | 10,000 cycles at 1 A 250 VAC |
| Torque | 1.5 Nm min. - 4 Nm max. applied to nut |
| Panel thickness | Ø 16 : 1 (.039) to 6 mm (.236) max.Ø 19 and Ø 22 : 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 200,000 cycles Hand soldering : 300 °C, 4 sec. max. Low level or mechanical life : 200,000 cycles Hand solder |
| Operating temperature | -30 °C to +70 °C |
| Max. current/voltage rating with resistive load | 1 A 250 VAC |
| Electrical Functions | ON OFF |
