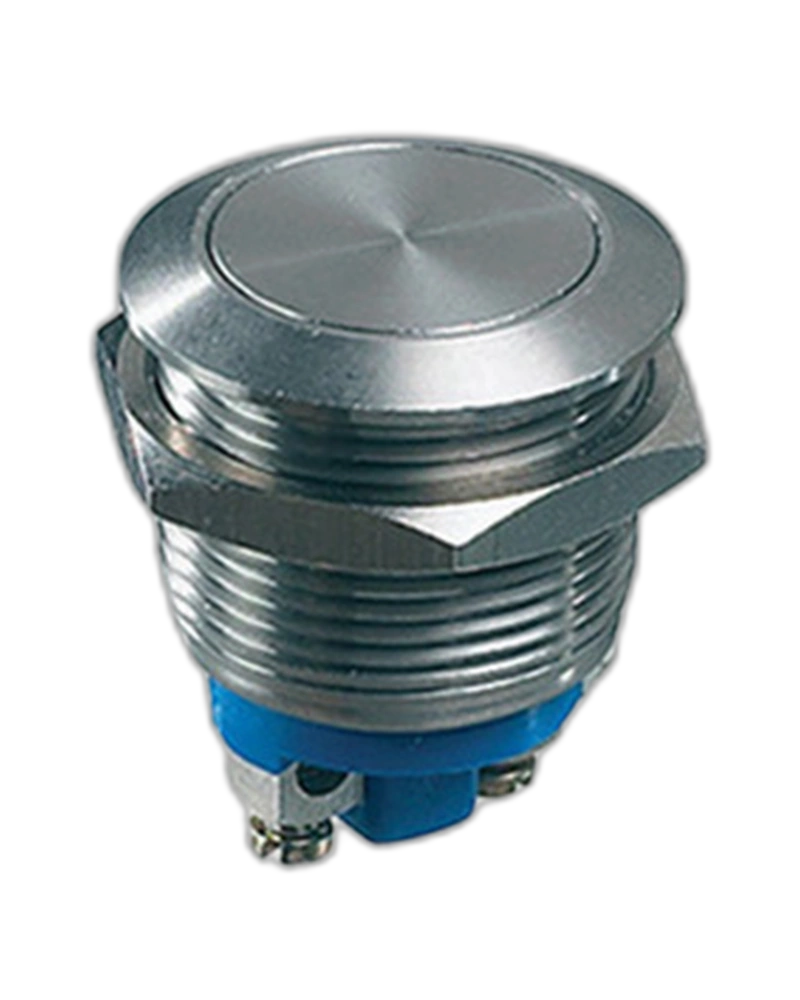

The APEM Panel Switches AV030003A900 is a robust, sealed momentary NC/NO switch designed for industrial applications. With an insulation resistance of 1,000 MΩ min. at 500 VDC, dielectric strength of 2,000 Vrms 50 Hz, and a long life of 1,000,000 cycles, this switch ensures reliable performance in demanding environments. Its IP65 and IP69K sealing provides exceptional protection against dust and water, making it ideal for harsh industrial settings.
The APEM Panel Switches AV030003A900 is a high-reliability, sealed momentary NC/NO switch engineered for industrial automation systems. This product delivers exceptional durability with a minimum insulation resistance of 1,000 MΩ at 500 VDC and a dielectric strength of 2,000 Vrms 50 Hz between terminals and frame. Designed for environments requiring high resistance to dust and water, the switch features IP65 and IP69K sealing, ensuring robust performance in challenging industrial conditions. With a long life of 1,000,000 cycles and an operating temperature range of -30°C to +70°C, the AV030003A900 is a critical component for applications demanding consistent, fail-safe operation.
The AV030003A900 features a momentary NC/NO electrical function with a minimum initial contact resistance of 50 mΩ. It operates within a temperature range of -30°C to +70°C and maintains a dielectric strength of 2,000 Vrms 50 Hz between terminals and frame. The switch is designed for high-reliability applications with a long life of 1,000,000 cycles.
Sealed to IP65 and IP69K standards, the AV030003A900 provides exceptional protection against dust and water ingress. This makes it suitable for use in harsh industrial environments, including those exposed to high levels of moisture, splashes, or corrosive substances.
The switch has a panel thickness range of 1 mm to 11 mm, with a panel cut-out diameter of Ø19.2 mm or Ø22.2 mm. The torque required for terminal tightening is between 1.5 Nm and 4 Nm, ensuring secure installation without damage.
The AV030003A900 is designed for hand soldering at 300°C for a maximum of 3 seconds. It supports a minimum pitch for matrix applications and is compatible with screw terminals for secure electrical connections.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame2,000 Vrms 50 Hz min. between terminals |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 11 mm (.433) max. Low level or mechanical life : 1,000,000 cycles Hand soldering : 300 °C, 3 sec. max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| Operating temperature | -30 °C to +70 °C |
| Sealing | Unsealed |
| Electrical Functions | Normally Open (NO) |
The APEMPanel Switches AV030003A900 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame2,000 Vrms 50 Hz min. between terminals |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 11 mm (.433) max. Low level or mechanical life : 1,000,000 cycles Hand soldering : 300 °C, 3 sec. max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| Operating temperature | -30 °C to +70 °C |
| Sealing | Unsealed |
| Electrical Functions | Normally Open (NO) |
