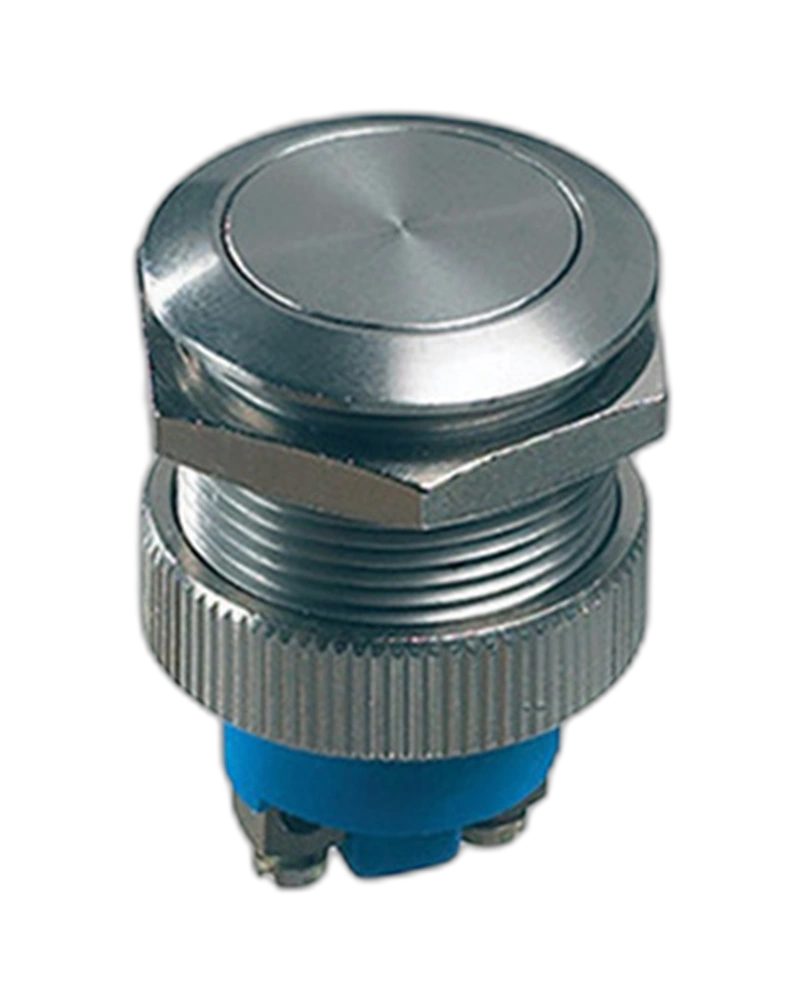

AV021003C240N Versatile AV021003C240N Panel Switch with brass silver-plated contacts for durability. Easy installation with solder lug and quick connect terminals, ideal for industrial and home use. Select Quantity
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame 2,000 Vrms 50 Hz min. between terminals |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 11 mm (.433) max. Low level or mechanical life : 1,000,000 cycles Hand soldering : 300 °C, 3 sec. max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| mounting | 30 mm x 30 mm (1.181x1.181) Low level or mechanical life : 1,000,000 cycles Hand soldering : 300 °C, 3 sec. max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| Operating temperature | -30 °C to +70 °C |
| Max. current/voltage rating with resistive load | - A contacts : 4 A 12 VDC, 500,000 cycles- C contacts : 2 A 48 VDC, 10,000 cycles |
| Sealing | Unsealed |
| Electrical Functions | Normally Open (NO) |
