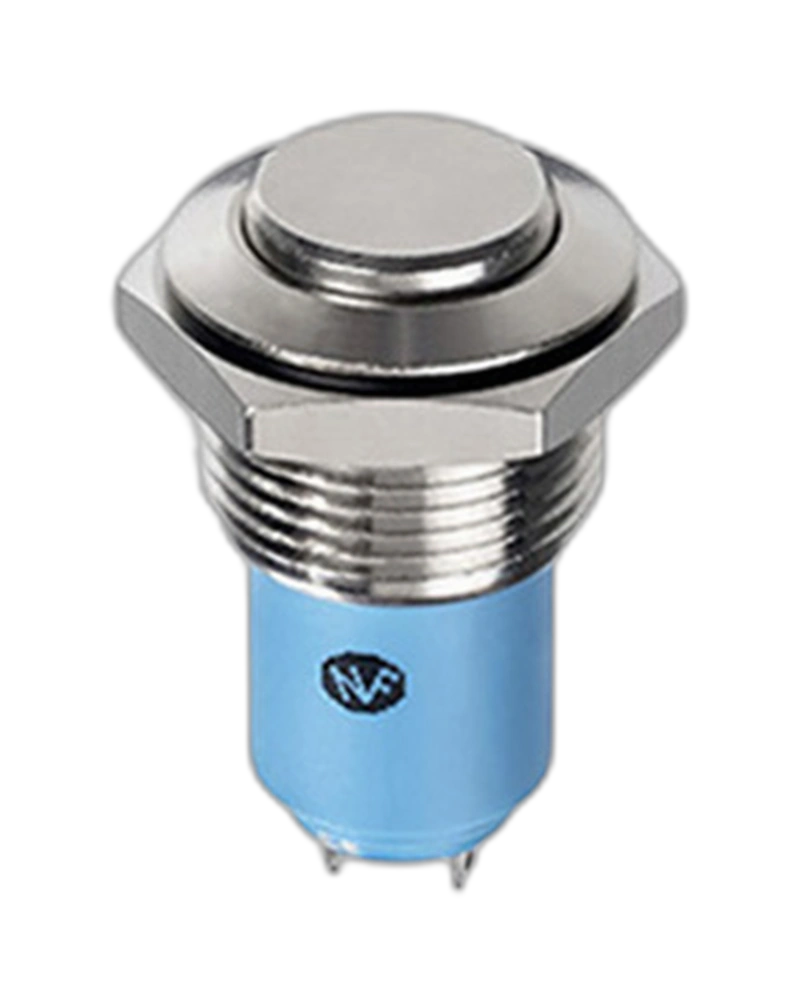

The APEM Panel Switches AV021001A800 is a Switches and Pushbutton with documented product-specific characteristics including Sealing: IP65; Insulation resistance: 1,000 MΩ min. at 500 VDC; Dielectric strength: 2,000 Vrms 50 Hz min. between terminals 500 Vrms 50 Hz between terminals and frame.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals 500 Vrms 50 Hz between terminals and frame |
| Electrical life | 10,000 cycles at 1 A 250 VAC |
| Torque | 1.5 Nm min. - 4 Nm max. applied to nut |
| Panel thickness | Ø 16 : 1 (.039) to 6 mm (.236) max.Ø 19 and Ø 22 : 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 200,000 cycles Hand soldering : 300 °C, 4 sec. max. Low level or mechanical life : 200,000 cycles Hand solder |
| Operating temperature | -30 °C to +70 °C |
| Max. current/voltage rating with resistive load | 1 A 250 VAC |
| Electrical Functions | ON OFF |
