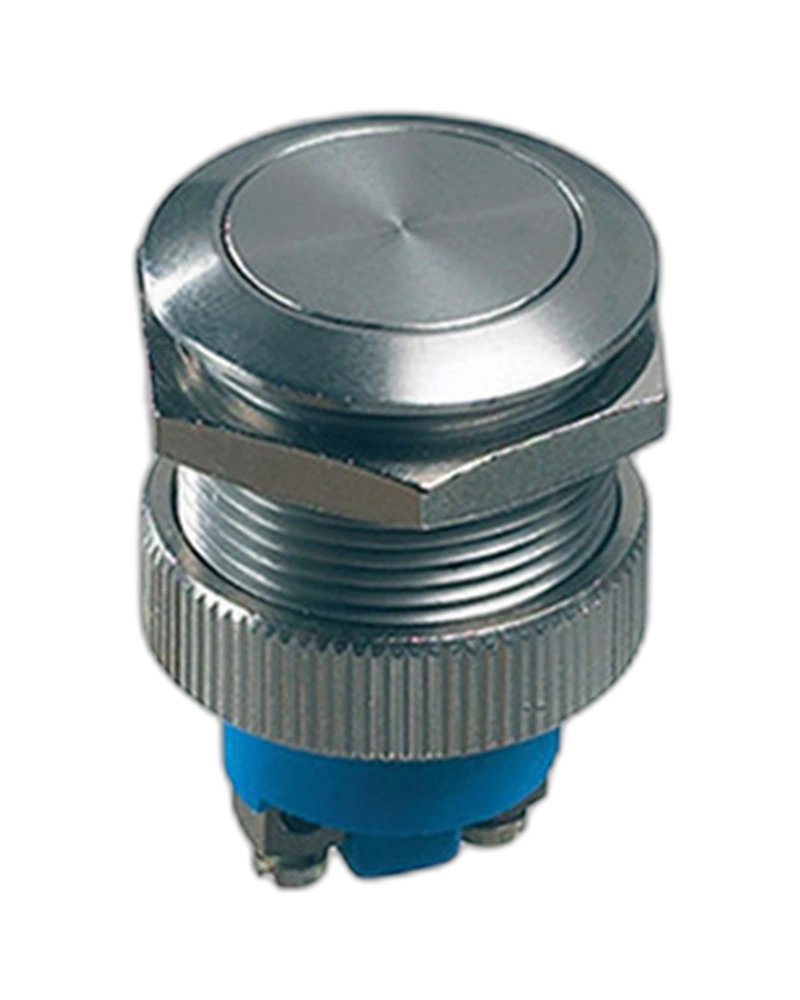

The APEM Panel Switches AV - anti-vandal are robust, vandal-resistant switches designed for industrial applications. These switches feature IP67/IP69K waterproofing, stainless steel actuators, and high cycle life (up to 1,000,000 cycles). They operate reliably in temperatures from -30°C to +70°C and are suitable for demanding environments.
APEM Panel Switches AV - anti-vandal switches deliver exceptional durability and reliability for industrial settings where protection against physical damage and environmental factors is critical. Engineered with a stainless steel actuator and bushing, these switches provide robust performance in harsh conditions, including high-impact environments and extreme temperatures. Their IP67/IP69K rating ensures complete protection against dust, water, and high-pressure cleaning, making them ideal for applications requiring long-term operational integrity without maintenance.
The APEM Panel Switches AV feature IP67/IP69K protection, ensuring resistance to dust, water, and high-pressure cleaning. This rating allows the switches to operate effectively in harsh industrial environments without degradation from moisture or particulate matter, even under demanding conditions such as industrial washdowns.
With an initial contact resistance of 50 mΩ max and insulation resistance of 1,000 MΩ min. at 500 VDC, these switches maintain stable electrical performance. The dielectric strength of 2,000 Vrms 50 Hz ensures reliable operation between terminals and frame, critical for preventing electrical faults in high-voltage applications.
Designed for high-cycle applications, the switches support up to 1,000,000 cycles of mechanical life. The stainless steel actuator and bushing resist corrosion and wear, while the torque range of 1.5 Nm to 4 Nm ensures secure mounting without over-tightening or damage.
Operating reliably from -30°C to +70°C, these switches maintain performance in extreme temperature conditions. This wide range ensures consistent functionality in both cold storage facilities and high-heat industrial processes without thermal degradation.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame 2,000 Vrms 50 Hz min. between terminals |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 11 mm (.433) max. Low level or mechanical life : 1,000,000 cycles Hand soldering : 300 °C, 3 sec. max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| mounting | 30 mm x 30 mm (1.181x1.181) Low level or mechanical life : 1,000,000 cycles Hand soldering : 300 °C, 3 sec. max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| Operating temperature | -30 °C to +70 °C |
| Max. current/voltage rating with resistive load | - A contacts : 4 A 12 VDC, 500,000 cycles- C contacts : 2 A 48 VDC, 10,000 cycles |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Tailles de canon | 16 mm, 19 mm, 22 mm, 24 mm, 30 mm |
| Étanchéité | Jusqu’à IP67/IP69K |
The APEMPanel Switches AV - anti-vandal is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame 2,000 Vrms 50 Hz min. between terminals |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 11 mm (.433) max. Low level or mechanical life : 1,000,000 cycles Hand soldering : 300 °C, 3 sec. max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| mounting | 30 mm x 30 mm (1.181x1.181) Low level or mechanical life : 1,000,000 cycles Hand soldering : 300 °C, 3 sec. max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| Operating temperature | -30 °C to +70 °C |
| Max. current/voltage rating with resistive load | - A contacts : 4 A 12 VDC, 500,000 cycles- C contacts : 2 A 48 VDC, 10,000 cycles |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Tailles de canon | 16 mm, 19 mm, 22 mm, 24 mm, 30 mm |
| Étanchéité | Jusqu’à IP67/IP69K |
