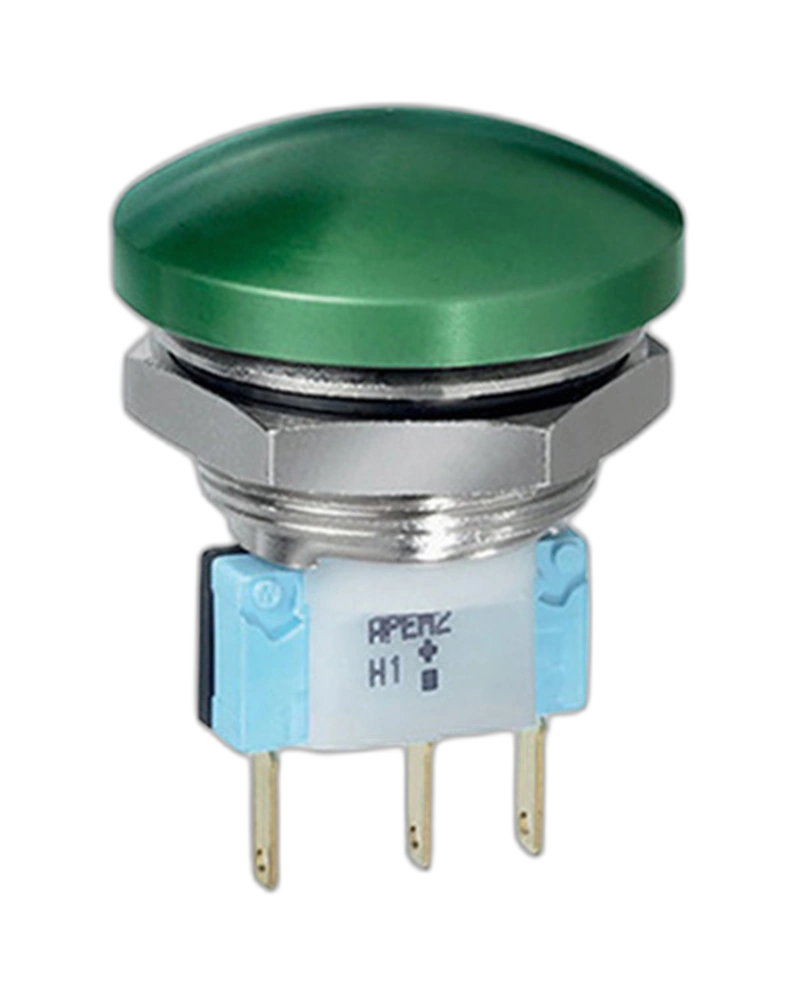

The APEM Panel Switches AV - 22 - mushroom head is a Switches and Pushbutton with documented product-specific characteristics including LED Color: Blue,Bushing Actuator Materials:SAE 316L stainless steel,Bushing Diameters:30mm (1.181in),Contact Materials:Silver,Flying Lead Cable Length:Length 20 cm Standard,Flying Lead Protection:Heat-shrink Sleeves; Terminals: Solder Lug Quick Connect; sealing: IP65 Hand soldering : 300 °C, 5 sec. max. Panel cut-out : Ø 22.2 mm (.874) or Ø 24.2 mm (.952) Min. pitch for matrix.
Product Overview
The Panel Switches AV - 22 - mushroom head is a Switches and Pushbutton. The overview below is based on the verified product information available for this model.
Technical Characteristics
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
Key Features
- Tactile feedback Illuminated or non-illuminated Momentary (NO) Marking available
- Actuator and bushing : brass, nickel plated, aluminim, anodized
- Illuminated or non-illuminated Momentary (NO) Marking available
- Different anodized colors available
- Momentary (NO) Marking available
- Security pushbutton switches
- Momentary (combined NC+NO)
- Marking available
Selection Considerations
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
Technical Specifications
Electrical Specifications
| Feature | Specification |
|---|
| Initial contact resistance | 100 m Ω max. |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals 1,000 Vrms 50 Hz min. between terminals and frame |
| Operating force | 5 N ± 2 N |
| Max. current/voltage rating with resistive load | 1 A 30 VDC LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
General Specifications
| Feature | Specification |
|---|
| sealing | IP65 Hand soldering : 300 °C, 5 sec. max. Panel cut-out : Ø 22.2 mm (.874) or Ø 24.2 mm (.952) Min. pitch for matrix |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles Front panel |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| mounting | 30 mm x 30 mm (1.181x1.181) or 33 mm x 33 mm (1.299x1.299) |
| Operating temperature | -30 °C to +85 °C Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models : 1 piece - other models : 25 pieces |
| Feature | Specification |
|---|
| LED Color | Blue,Bushing Actuator Materials:SAE 316L stainless steel,Bushing Diameters:30mm (1.181in),Contact Materials:Silver,Flying Lead Cable Length:Length 20 cm Standard,Flying Lead Protection:Heat-shrink Sleeves |
Specifications
| Feature | Specification |
|---|
| voltage | 12 V |
| Length | 20 cm |
| Diameter | 30.1mm |
Product Summary
The APEMPanel Switches AV - 22 - mushroom head is presented using the documented product characteristics available for this model.
