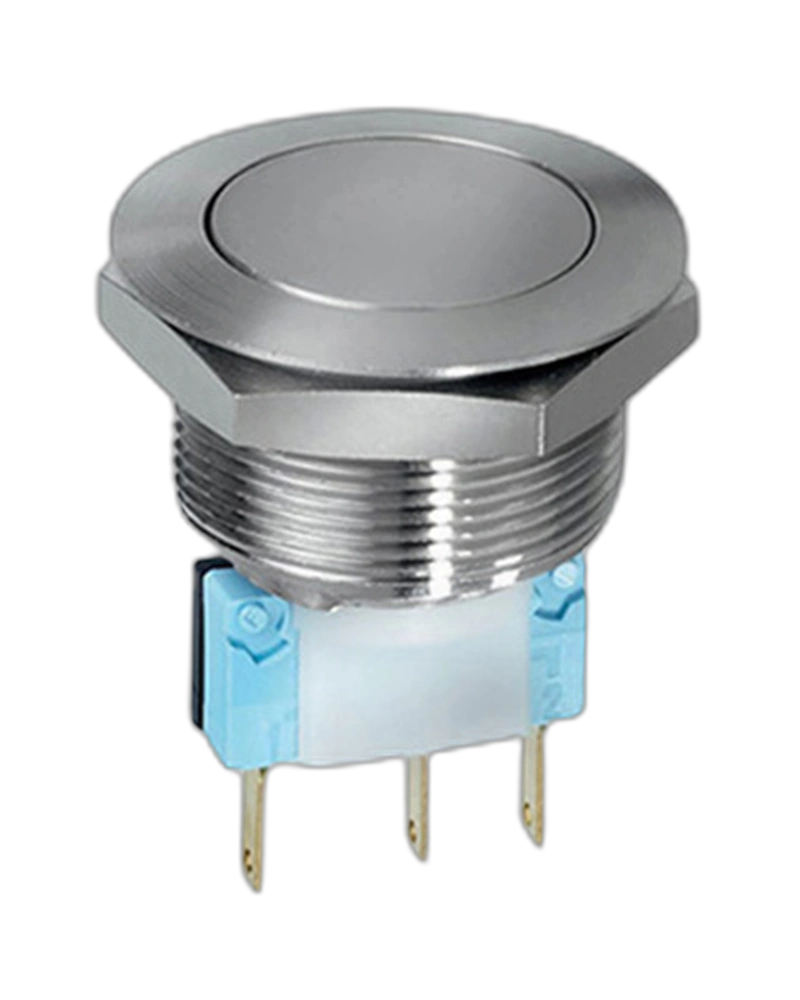

The APEM Panel Switches AV - 22-24 - Large actuator is a Switches and Pushbutton with documented product-specific characteristics including Sealing: IP65; Case: Short; Terminals: Solder Lug Quick Connect.
Product Overview
The Panel Switches AV - 22-24 - Large actuator is a Switches and Pushbutton. The overview below is based on the verified product information available for this model.
Technical Characteristics
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
Key Features
- Actuator and bushing : nickel plated, chrome plated, varnished polishedor stainless steel
- Flat, curved or recessedactuator available
- Ø 22 mm or Ø 24 mm with large actuator
- Security pushbutton switches
- Anodized actuator available
- Momentary (combined NC+NO)
- Front panel sealing IP65
- Terminals: Solder Lug Quick Connect
Selection Considerations
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
Technical Specifications
Electrical Specifications
| Feature | Specification |
|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame 2,000 Vrms 50 Hz min. between terminals |
| Max. current/voltage rating with resistive load | - A contacts : 4 A 12 VDC, 500,000 cycles- C contacts : 2 A 48 VDC, 10,000 cycles |
Environmental Specifications
| Feature | Specification |
|---|
| Operating temperature | -30 °C to +70 °C |
General Specifications
| Feature | Specification |
|---|
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 11 mm (.433) max. Low level or mechanical life : 1,000,000 cycles Hand soldering : 300 °C, 3 sec. max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| mounting | 30 mm x 30 mm (1.181x1.181) |
| Feature | Specification |
|---|
| Sealing | IP65 |
| Electrical Functions | Normally Open (NO) |
Specifications
| Feature | Specification |
|---|
| connection | for various applications. Select Quantity Add to Quote |
Product Summary
The APEMPanel Switches AV - 22-24 - Large actuator is presented using the documented product characteristics available for this model.
