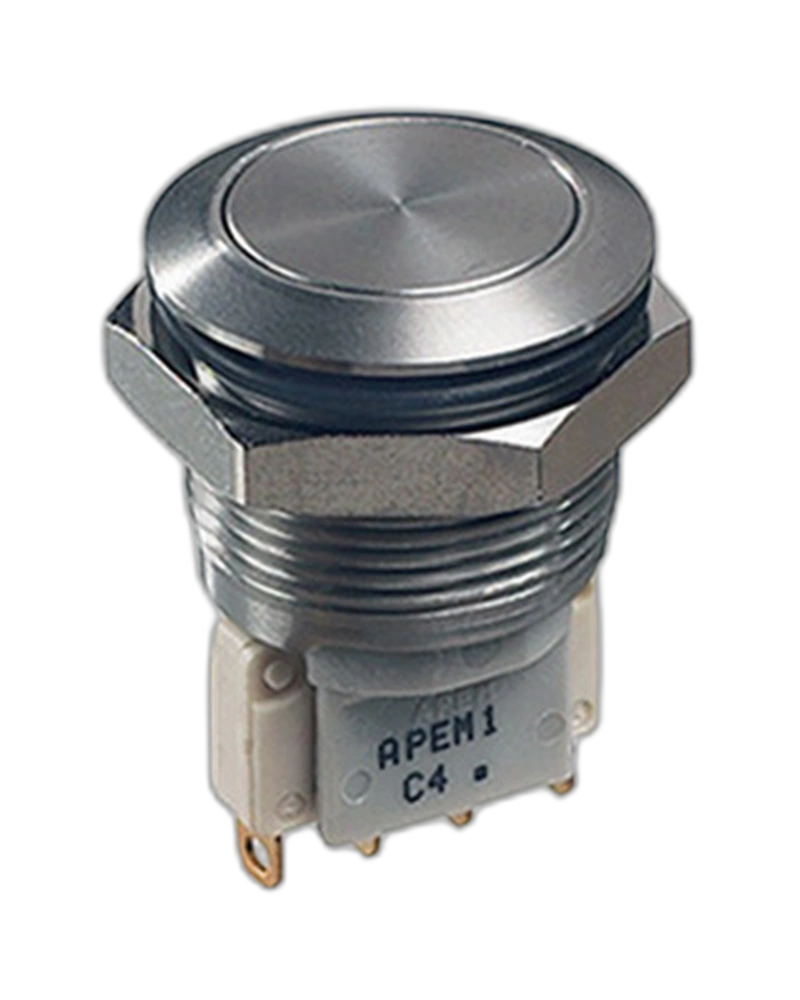

The APEM Panel Switches AV - 19 - NC-NO - not illuminated is a robust, high-reliability switch designed for industrial applications. Featuring IP65 and IP69K sealing, it delivers 250,000 cycles of electrical life at full load and operates reliably across temperatures from -20°C to +85°C. Ideal for demanding environments where durability and precise switching are critical.
The APEM Panel Switches AV - 19 - NC-NO - not illuminated is a high-performance, non-illuminated switch engineered for industrial automation systems. This switch combines exceptional durability with precise switching capabilities, ensuring reliable operation in harsh environments. With a robust construction featuring nickel-plated, chrome-plated, or stainless steel components, it withstands extreme conditions while maintaining consistent performance. The switch supports both momentary NC/NO operation and offers a wide operating temperature range from -20°C to +85°C, making it suitable for critical industrial applications where reliability is paramount.
The APEM Panel Switches AV - 19 - NC-NO - not illuminated delivers reliable electrical performance with a maximum current rating of 5 A for 250 VAC and 125 VAC, and 3 A for 30 VDC. It supports up to 50,000 cycles for 15 VDC loads. The switch maintains an initial contact resistance of 100 mΩ max, ensuring minimal voltage drop during operation. Its dielectric strength of 2,000 Vrms 50 Hz min. between terminal and frame guarantees robust electrical isolation even under high-voltage conditions.
Engineered for extreme environments, this switch operates within a temperature range of -20°C to +85°C. The IP65 and IP69K sealing ensures protection against dust, water, and high-pressure cleaning, making it suitable for industrial settings with harsh conditions. The switch's robust construction, featuring nickel-plated, chrome-plated, or stainless steel components, provides long-term reliability without degradation.
The switch features a 30 mm x 30 mm mounting footprint with a panel cut-out diameter of 19.2 mm. It requires a torque of 1.5 Nm min. to 4 Nm max. for secure nut installation. The switch operates with a consistent force of 5 N ± 2 N, ensuring smooth actuation without excessive wear. Its flat or curved actuator options allow for versatile integration into various control panels.
With a mechanical life of 1,000,000 cycles and electrical life of 250,000 cycles at full load, this switch is designed for extended service in demanding applications. The switch's low initial contact resistance (100 mΩ max) and high insulation resistance (1,000 MΩ min. at 500 VDC) ensure consistent performance over time, reducing maintenance needs and downtime in critical industrial systems.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminal and frame |
| Max. current/voltage rating with resistive load | 5 A 250 VAC - 5 A 125 VAC - 6,000 cycles5 A 15 VDC - 3 A 30 VDC - 50,000 cycles |
| Feature | Specification |
|---|---|
| Operating temperature | -20 °C to +85 °C |
| Feature | Specification |
|---|---|
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 1,000,000 cycles Front panel |
| sealing | IP65 and IP69K Panel cut-out : Ø 19.2 mm (.755) Min. pitch for matrix |
| mounting | 30 mm x 30 mm (1.181x1.181) |
| Operating force | 5 N ± 2 N |
| Feature | Specification |
|---|---|
| voltage | 12 V |
| Length | 20 cm |
| diameter | 30 mm |
The APEMPanel Switches AV - 19 - NC-NO - not illuminated is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminal and frame |
| Max. current/voltage rating with resistive load | 5 A 250 VAC - 5 A 125 VAC - 6,000 cycles5 A 15 VDC - 3 A 30 VDC - 50,000 cycles |
| Feature | Specification |
|---|---|
| Operating temperature | -20 °C to +85 °C |
| Feature | Specification |
|---|---|
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 1,000,000 cycles Front panel |
| sealing | IP65 and IP69K Panel cut-out : Ø 19.2 mm (.755) Min. pitch for matrix |
| mounting | 30 mm x 30 mm (1.181x1.181) |
| Operating force | 5 N ± 2 N |
| Feature | Specification |
|---|---|
| voltage | 12 V |
| Length | 20 cm |
| diameter | 30 mm |
