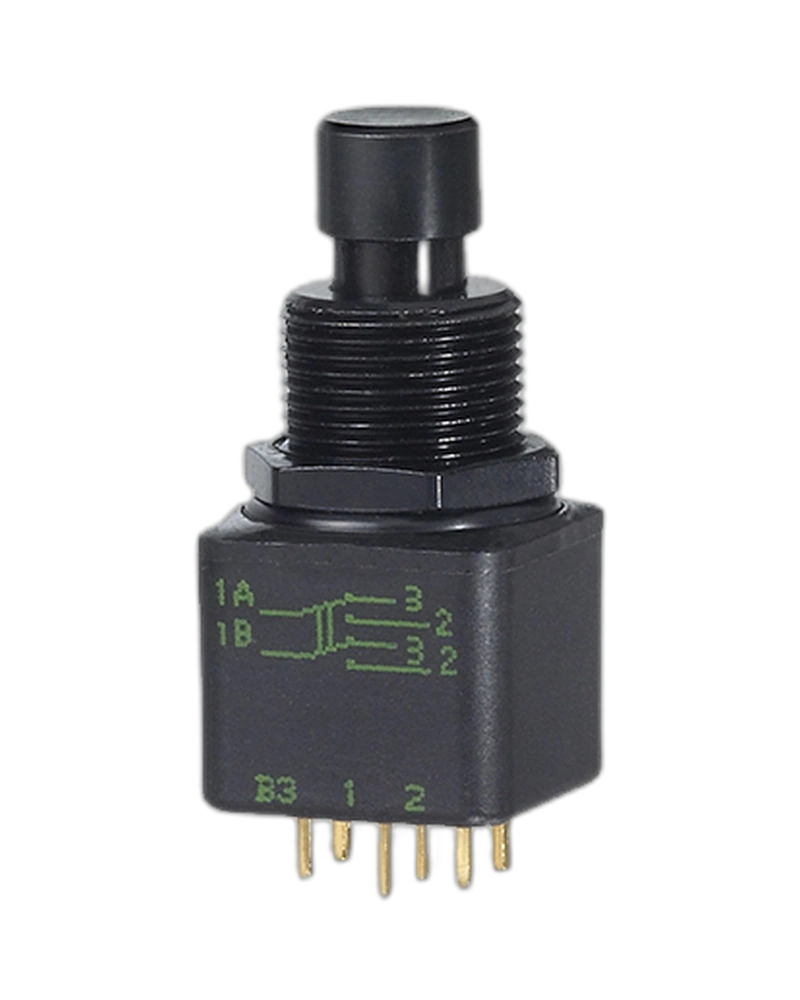

The APEM Panel Switches 96..N33ABX1146U2020 is a single-pole, normally open (NO) autoswitch designed for industrial applications. This epoxy-sealed switch features silver contacts with a 1 A 30 VDC rating and gold-plated contacts for 100 mA 30 VDC, ensuring reliable operation across temperatures from -30°C to +65°C. Its robust construction includes solder lug terminals and a square case with 6 mm height, ideal for demanding environments.
The APEM Panel Switches 96..N33ABX1146U2020 is a precision-engineered single-pole, normally open (NO) autoswitch designed for industrial control systems. This switch delivers high reliability with epoxy-sealed terminals, silver contacts rated for 1 A 30 VDC, and gold-plated contacts for 100 mA 30 VDC applications. Its robust construction includes solder lug terminals, a square case measuring 6 mm in height, and a 16 mm bushing diameter, ensuring durability and performance in harsh environments. The switch operates within a temperature range of -30°C to +65°C and meets stringent electrical specifications including 1,000 MΩ insulation resistance at 500 VDC and 1,500 Vrms dielectric strength between terminals and frame.
The APEM Panel Switches 96..N33ABX1146U2020 features precise electrical characteristics for reliable operation. Silver contacts support a maximum current of 1 A at 30 VDC, while gold-plated contacts handle up to 100 mA at 30 VDC. The switch maintains an initial contact resistance of 50 mΩ max and delivers 1,000 MΩ insulation resistance at 500 VDC. Dielectric strength between terminals and frame reaches 1,500 Vrms at 50 Hz, ensuring robust performance in high-voltage environments.
Engineered for extreme conditions, this switch operates effectively across a wide temperature range from -30°C to +65°C. The epoxy-sealed terminals provide protection against moisture, dust, and corrosive environments, making it suitable for industrial settings where reliability is critical. The switch also meets stringent dielectric strength requirements, ensuring safety and longevity in demanding applications.
The switch utilizes solder lug terminals for secure and reliable electrical connections. Its square case design with a height of 6 mm and a 16 mm bushing diameter ensures compact integration into control panels. The epoxy sealing process enhances resistance to environmental factors, while the switch's electrical life of 250,000 cycles guarantees long-term performance without degradation.
| Feature | Specification |
|---|---|
| Sealing | Epoxy Sealed Terminals Standard Cap: Square Height 6 mm (0.236 in) Terminals Case And Bushing: Solder Lug Terminals |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals1,500 Vrms 50 Hz min. between terminals and frame |
| Operating temperature | -30 °C to +65 °C |
| Max. current/voltage rating with resistive load | - silver contact (A) : 1 A 30 VDC- gold plated contacts (CD) : 100 mA 30 VDC |
| Electrical functions | Normally Open (NO) Poles: Single Pole |
The APEMPanel Switches 96..N33ABX1146U2020 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Sealing | Epoxy Sealed Terminals Standard Cap: Square Height 6 mm (0.236 in) Terminals Case And Bushing: Solder Lug Terminals |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals1,500 Vrms 50 Hz min. between terminals and frame |
| Operating temperature | -30 °C to +65 °C |
| Max. current/voltage rating with resistive load | - silver contact (A) : 1 A 30 VDC- gold plated contacts (CD) : 100 mA 30 VDC |
| Electrical functions | Normally Open (NO) Poles: Single Pole |
