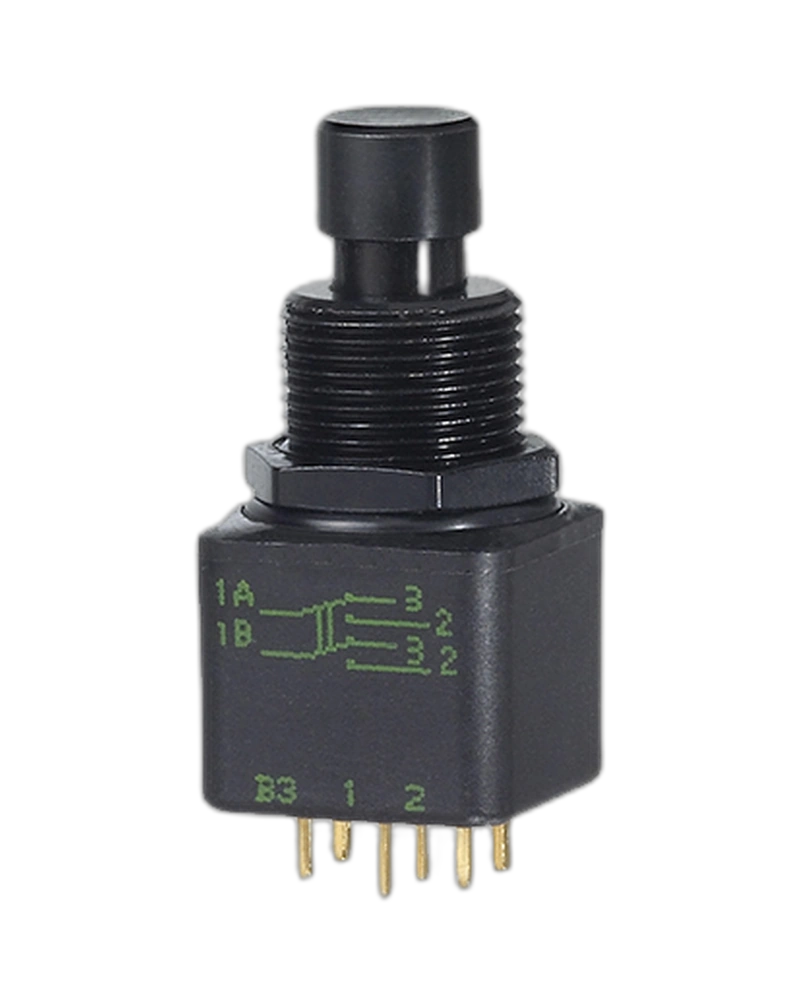

The APEM Panel Switches 96..N32AKBX601U2020 is a Switches and Pushbutton with documented product-specific characteristics including Torque: 1.25 Nm (.922 Ft.lb) max. applied to nut; Sealing: Front Panel Sealing by Two O-Rings Cap: Square Height 6 mm (0.236 in) Terminals Case And Bushing: Solder Lug Terminals; Options: Special Contacts Lower Rating.
| Feature | Specification |
|---|---|
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut |
| Sealing | Front Panel Sealing by Two O-Rings Cap: Square Height 6 mm (0.236 in) Terminals Case And Bushing: Solder Lug Terminals |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals1,500 Vrms 50 Hz min. between terminals and frame |
| Operating temperature | -30 °C to +65 °C |
| Max. current/voltage rating with resistive load | - silver contact (A) : 1 A 30 VDC- gold plated contacts (CD) : 100 mA 30 VDC |
| Electrical Functions | Normally Closed (NC) Poles: Single Pole |
