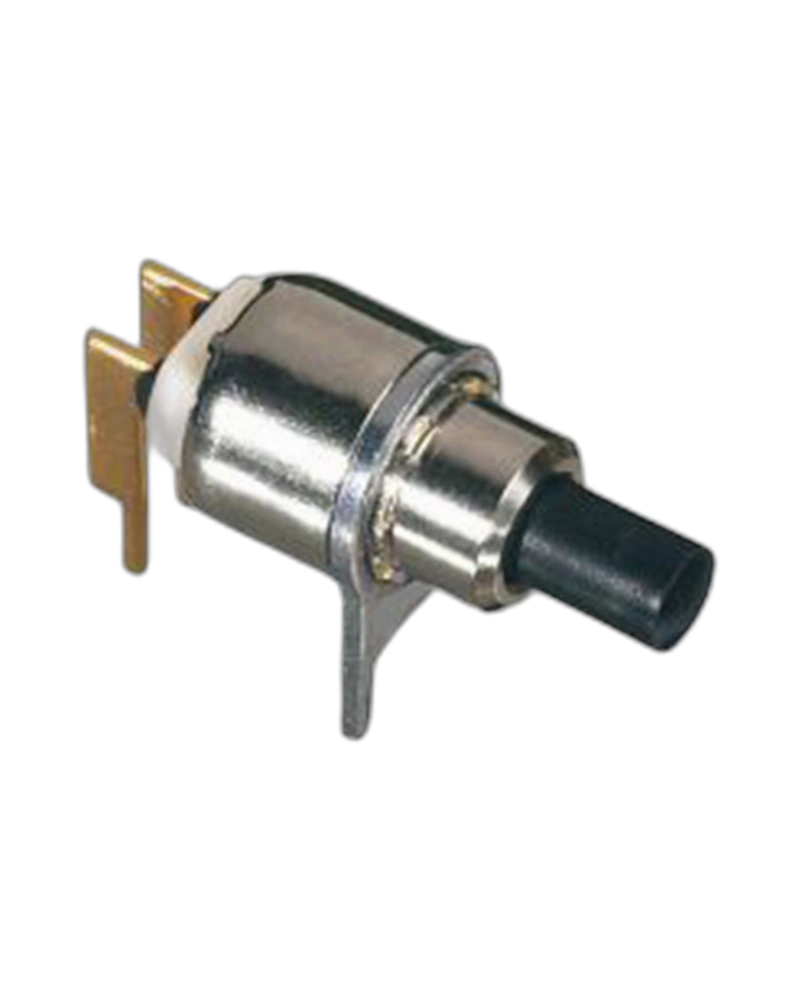

The APEM Panel Switches 95..N32CD-0U4320U4922 is a Switches and Pushbutton with documented product-specific characteristics including Sealing: Epoxy Sealed Terminals Standard,Cap:39 mm (1.53 in),Plunger:Flush,Terminals Case And Bushing:Solder Lugs Threaded Bushing,Mounting Bezel:Model 9500 Only; Insulation resistance: 1,000 MΩ min. at 500 VDC; Dielectric strength: 500 Vrms 50 Hz min. between terminals1,000 Vrms 50 Hz min. between terminals and frame Electrical life at full load :9100 - 9200N and 9500N : 250,000 cycles9200 - 9500 : 100,000 cycles Electrical life at full load :9100.
| Feature | Specification |
|---|---|
| Force | 9200N |
| Feature | Specification |
|---|---|
| Sealing | Epoxy Sealed Terminals Standard,Cap:39 mm (1.53 in),Plunger:Flush,Terminals Case And Bushing:Solder Lugs Threaded Bushing,Mounting Bezel:Model 9500 Only |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals1,000 Vrms 50 Hz min. between terminals and frame Electrical life at full load :9100 - 9200N and 9500N : 250,000 cycles9200 - 9500 : 100,000 cycles Electrical life at full load :9100 |
| Torque | 0.5 Nm (.590 Ft.lb) max. applied to nut |
| Panel thickness | 1.50 mm (.059) max. Travels : Tolerance : +/- 0.3 mm (.011) |
| Operating temperature | -30 °C to +65 °C |
| Max. current/voltage rating with resistive load | 100 mA 30 VDC |
| Electrical functions | Normally Closed (NC),Poles:Single Pole |
