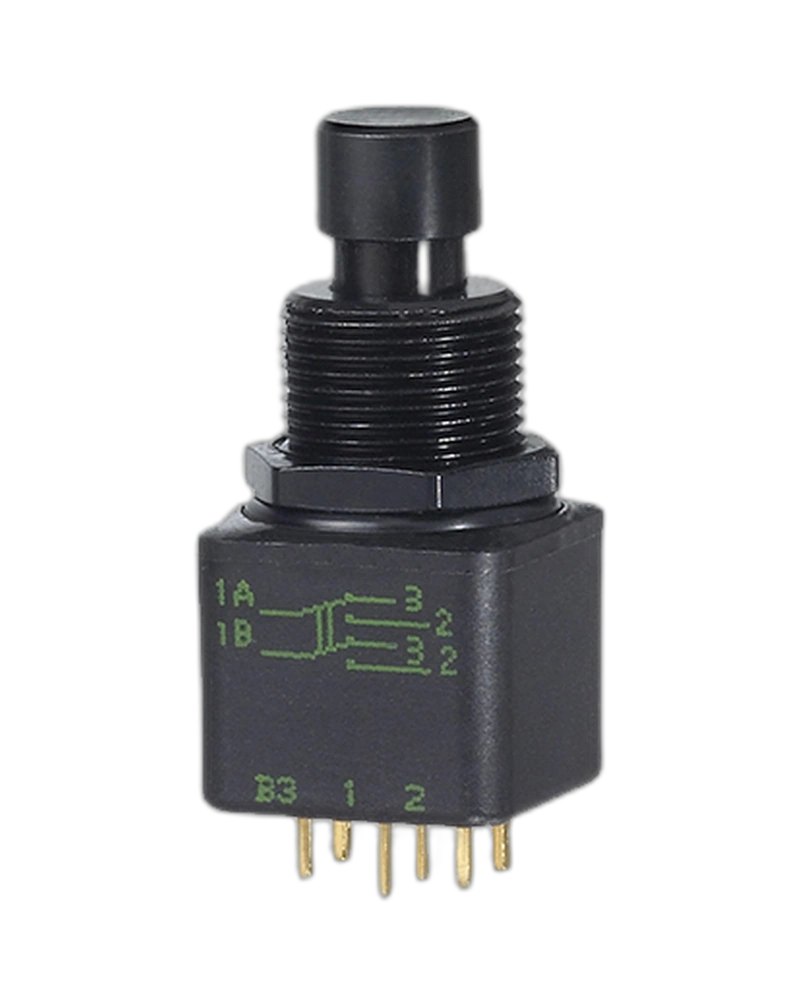

94..N33CDBX601U480 High-quality PCB switch 94..N33CDBX601U480 features a compact, durable design with a normally open configuration for reliable electrical connections in various projects. Select Quantity
| Feature | Specification |
|---|---|
| Sealing | Epoxy Sealed Terminals Standard,Cap:10 mm (0.393in) Standard,Terminals Case And Bushing:Straight PC Terminals |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals1,500 Vrms 50 Hz min. between terminals and frame |
| Operating temperature | -30 °C to +65 °C |
| Max. current/voltage rating with resistive load | - silver contact (A) : 1 A 30 VDC- gold plated contacts (CD) : 100 mA 30 VDC |
| Electrical Functions | Normally Open (NO),Poles:Single Pole |
