Explore performance details, construction highlights, applications, and technical information in one clear overview.

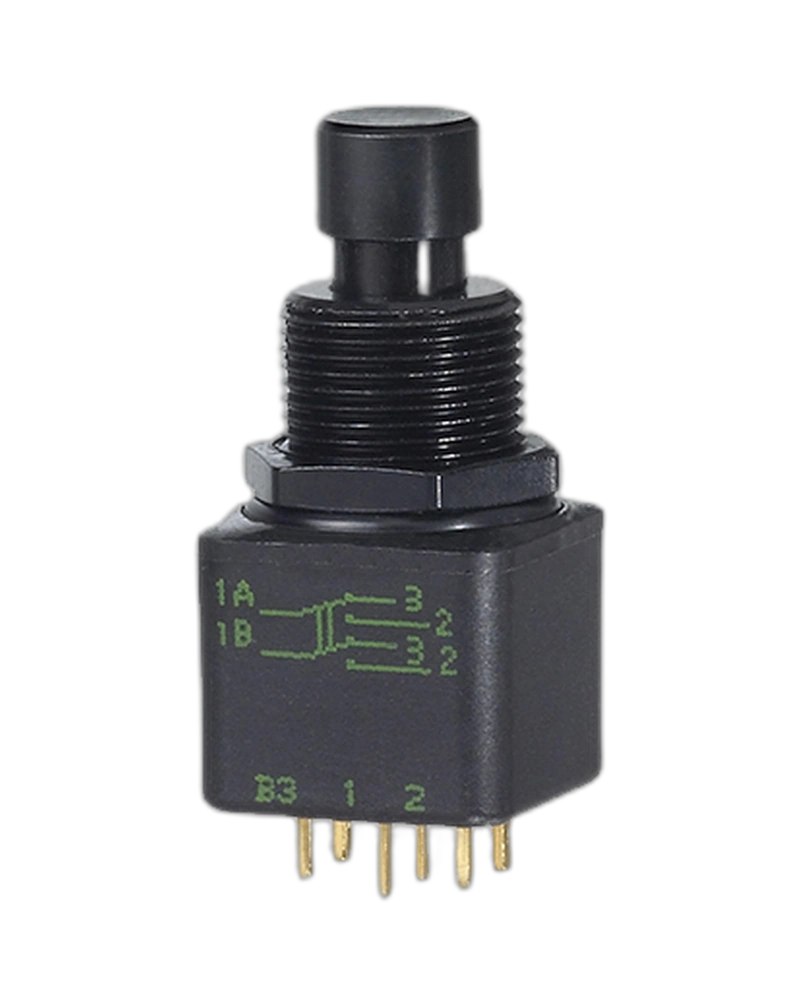

The APEM Panel Switches 94..N33CDBX1146U900 is a Switches and Pushbutton with documented product-specific characteristics including Sealing: Epoxy Sealed Terminals Standard,Cap:5 mm(0.196 in),Terminals Case And Bushing:Straight PC Terminals; Insulation resistance: 1,000 MΩ min. at 500 VDC; Dielectric strength: 1,000 Vrms 50 Hz min. between terminals1,500 Vrms 50 Hz min. between terminals and frame.
94..N33CDBX1146U900 Select Quantity
| Feature | Specification |
|---|---|
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut |
| Feature | Specification |
|---|---|
| Sealing | Epoxy Sealed Terminals Standard,Cap:5 mm(0.196 in),Terminals Case And Bushing:Straight PC Terminals |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals1,500 Vrms 50 Hz min. between terminals and frame |
| Operating temperature | -30 °C to +65 °C |
| Max. current/voltage rating with resistive load | - silver contact (A) : 1 A 30 VDC- gold plated contacts (CD) : 100 mA 30 VDC |
| Electrical functions | Normally Open (NO),Poles:Single Pole |
| Feature | Specification |
|---|---|
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut |
