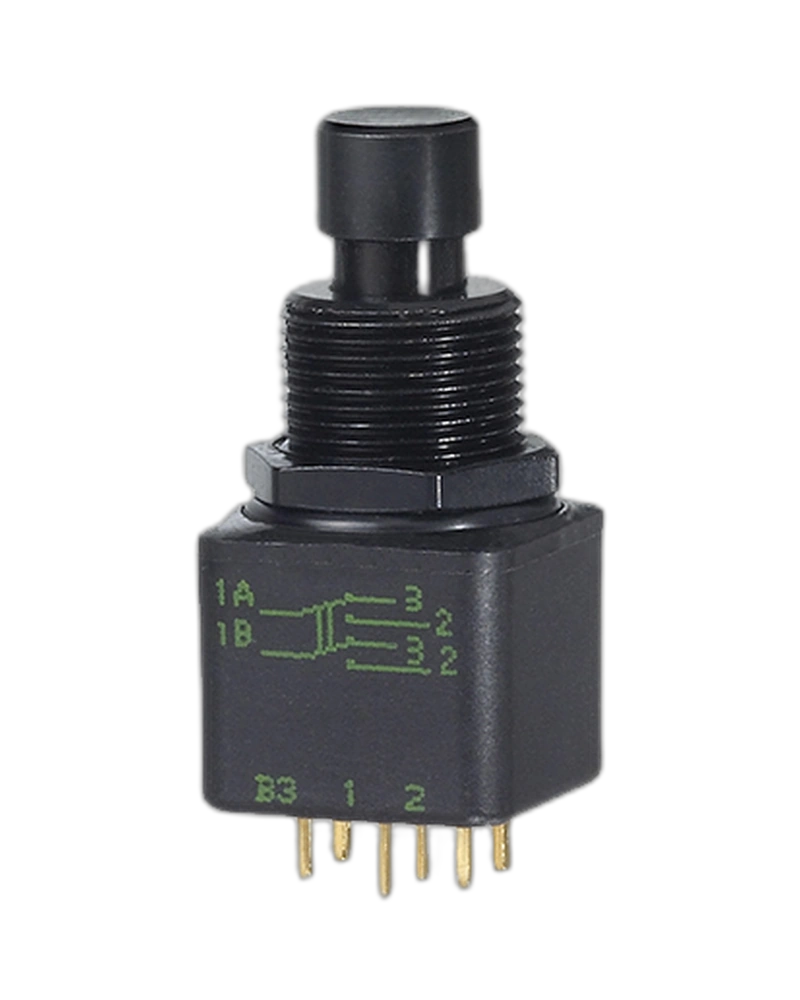

The APEM Panel Switches 94..N32ABX1146U2020 is a single pole, epoxy sealed terminal autoswitch designed for industrial applications. This robust switch features silver contacts with a maximum current rating of 1 A for resistive loads at 30 VDC, ensuring reliable operation across temperatures from -30°C to +65°C. Its 6 mm square height and 16 mm bushing provide precise installation and high electrical life of 250,000 cycles.
Product Overview
The APEM Panel Switches 94..N32ABX1146U2020 is a single pole, epoxy sealed terminal autoswitch engineered for demanding industrial environments. This switch delivers exceptional reliability with silver contacts rated for 1 A at 30 VDC under resistive loads, while maintaining a robust electrical life of 250,000 cycles. Its epoxy sealed terminals, 6 mm square height, and 16 mm bushing ensure secure installation and performance across a wide temperature range from -30°C to +65°C. The switch supports normally closed (NC) functionality and meets stringent insulation and dielectric strength requirements for safe operation in industrial systems.
Electrical Specifications
The APEM Panel Switches 94..N32ABX1146U2020 operates with a single pole configuration and supports normally closed (NC) functionality. It features silver contacts rated for a maximum current of 1 A at 30 VDC for resistive loads, with gold-plated contacts (CD) rated for 100 mA at 30 VDC. The switch demonstrates high insulation resistance (1,000 MΩ min. at 500 VDC) and dielectric strength (1,000 Vrms 50 Hz between terminals and 1,500 Vrms 50 Hz between terminals and frame), ensuring safe operation in industrial settings.
Environmental Performance
Engineered for extreme conditions, this switch operates reliably across a temperature range of -30°C to +65°C. Its epoxy sealed terminals provide robust protection against environmental factors, while the 6 mm square height and 16 mm bushing design ensure precise installation and long-term stability in harsh industrial environments.
Construction and Installation
The switch features straight PC terminals with a torque specification of 1.25 Nm max. for secure terminal connections. Its square height of 6 mm and 16 mm bushing allow for precise mounting on control panels, ensuring compatibility with standard industrial panel designs and minimizing installation errors.
Technical Specifications
Electrical Specifications
| Feature | Specification |
|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals1,500 Vrms 50 Hz min. between terminals and frame |
| Max. current/voltage rating with resistive load | - silver contact (A) : 1 A 30 VDC- gold plated contacts (CD) : 100 mA 30 VDC |
Environmental Specifications
| Feature | Specification |
|---|
| Operating temperature | -30 °C to +65 °C |
General Specifications
| Feature | Specification |
|---|
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut |
| Feature | Specification |
|---|
| Sealing | Epoxy Sealed Terminals Standard,Cap:Square Height 6 mm (0.236 in),Terminals Case And Bushing:Straight PC Terminals |
| Number Of Poles | Single Pole,Contact Materials:Silver,Caps:Square Height 6mm(0.236in) |
| Options | Bushing 16mm(6.30in) |
| Electrical Functions | Normally Closed (NC),Poles:Single Pole |
Specifications
| Feature | Specification |
|---|
| Height | 6 mm |
Product Summary
The APEMPanel Switches 94..N32ABX1146U2020 is presented using the documented product characteristics available for this model.
