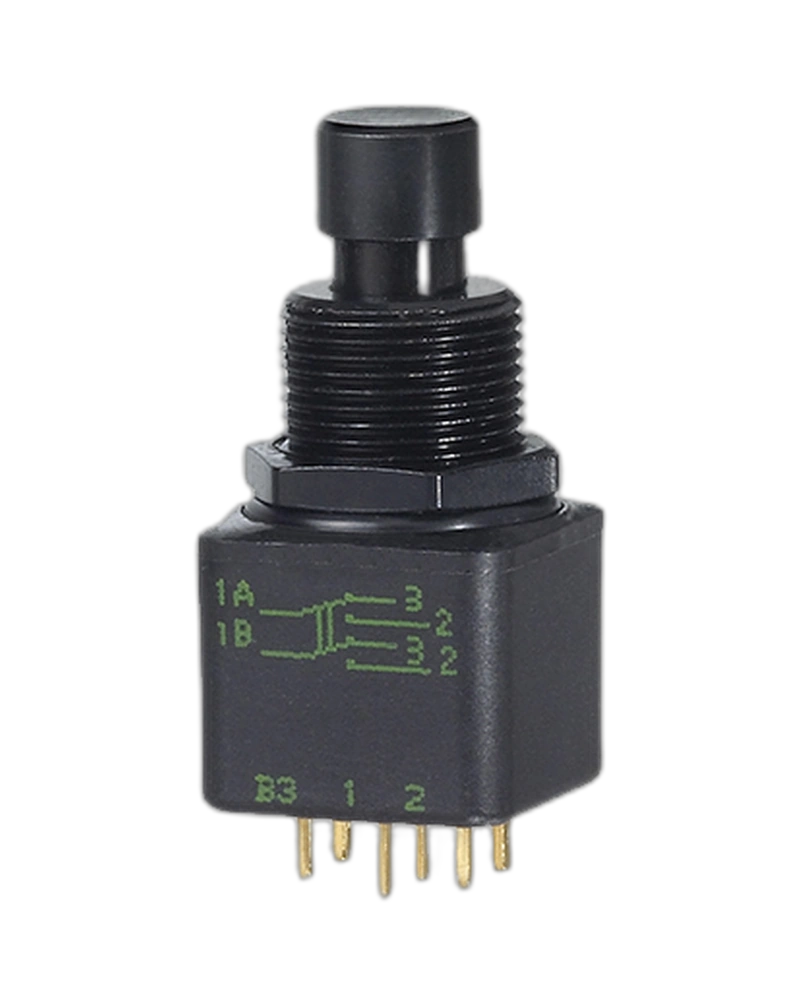

The 9433ABX1146U900 Panel Switch features a single pole, normally open design for reliable electrical control. Durable construction ensures long-lasting performance for various applications. Select Quantity
| Feature | Specification |
|---|---|
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals1,500 Vrms 50 Hz min. between terminals and frame |
| Options | Bushing 16mm(6.30in) |
| Operating temperature | -30 °C to +65 °C |
| Max. current/voltage rating with resistive load | - silver contact (A) : 1 A 30 VDC- gold plated contacts (CD) : 100 mA 30 VDC |
| Sealing | Epoxy Sealed Terminals,Terminals Case And Bushing:Straight PC Terminals,Special |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut |
