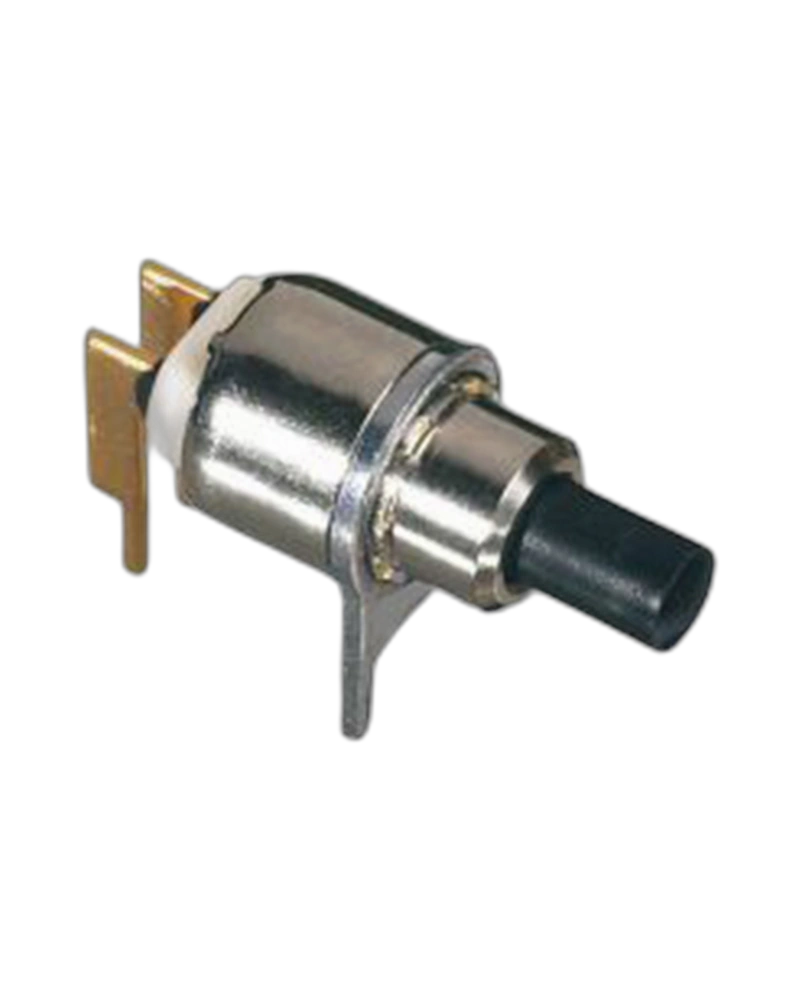

92..Y32CD-0U4320U4922 Versatile 92..Y32CD-0U4320U4922 PCB switch features reliable NC configuration for efficient circuit control in various applications. Perfect for power, signal, or data flow management. Select Quantity
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Torque | 0.5 Nm (.590 Ft.lb) max. applied to nut |
| Panel thickness | 1.50 mm (.059) max. Travels : Tolerance : +/- 0.3 mm (.011) |
| Force | 9200N |
| Initial contact resistance | 30 mΩ max. |
| Operating temperature | -30 °C to +65 °C |
| Feature | Specification |
|---|---|
| Dielectric strength | 500 Vrms 50 Hz min. between terminals1,000 Vrms 50 Hz min. between terminals and frame Electrical life at full load :9100 - 9200N and 9500N : 250,000 cycles9200 - 9500 : 100,000 cycles Electrical life at full load :9100 |
| Sealing | Epoxy Sealed Terminals Standard,Cap:39 mm (1.53 in),Plunger:Flush,Terminals Case And Bushing:Tall Bracket Plain Bushing,Mounting Bezel:Model 9500 Only |
| Max. current/voltage rating with resistive load | 100 mA 30 VDC |
| Electrical Functions | Normally Closed (NC),Poles:Single Pole |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Torque | 0.5 Nm (.590 Ft.lb) max. applied to nut |
| Panel thickness | 1.50 mm (.059) max. Travels : Tolerance : +/- 0.3 mm (.011) |
| Operating temperature | -30 °C to +65 °C |
