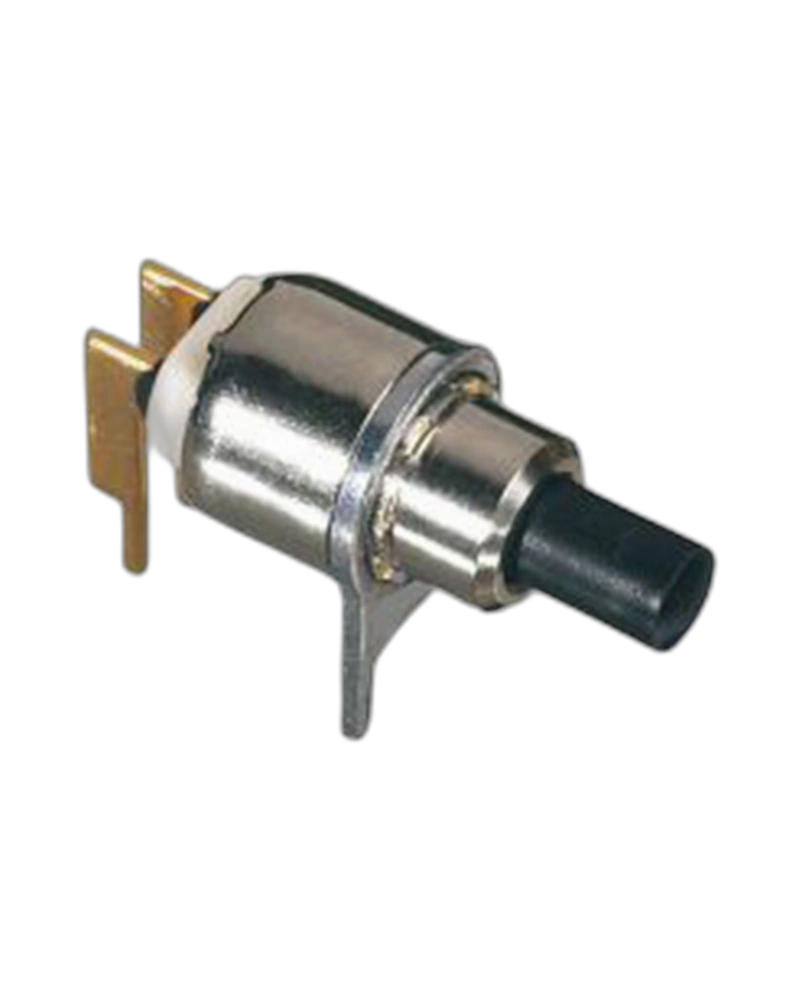

Panel Switches 9233CDU4320U4922
The APEM Panel Switches 9233CDU4320U4922 is a Switches and Pushbutton with documented product-specific characteristics including Insulation resistance: 1,000 MΩ min. at 500 VDC; Dielectric strength: 500 Vrms 50 Hz min. between terminals1,000 Vrms 50 Hz min. between terminals and frame Electrical life at full load :9100 - 9200N and 9500N : 250,000 cycles9200 - 9500 : 100,000 cycles Electrical life at full load :9100; Torque: 0.5 Nm (.590 Ft.lb) max. applied to nut.
Key Features
- Insulation resistance: 1,000 MΩ min. at 500 VDC
- Dielectric strength: 500 Vrms 50 Hz min. between terminals1,000 Vrms 50 Hz min. between terminals and frame Electrical life at full load :9100 - 9200N and 9500N : 250,000 cycles9200 - 9500 : 100,000 cycles Electrical life at full load :9100
- Torque: 0.5 Nm (.590 Ft.lb) max. applied to nut
- Panel thickness: 1.50 mm (.059) max. Travels : Tolerance : +/- 0.3 mm (.011)
- Number Of Poles: Single Pole,Mounting Bezel:For 9500 Model Only,Caps:Height: 39mm (1.53in)
- Initial contact resistance: 30 mΩ max.
- Operating temperature: -30 °C to +65 °C
- Max. current/voltage rating with resistive load: 100 mA 30 VDC
- Sealing: Epoxy Sealed Terminals,Terminals Case And Bushing:Straight Terminals Threaded Bushing
- Electrical Functions: Normally Open (NO)
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | single pole configuration |
Specifications
| Feature | Specification |
|---|
| Force | 9200N |
| Height | 39mm |
