Explore performance details, construction highlights, applications, and technical information in one clear overview.

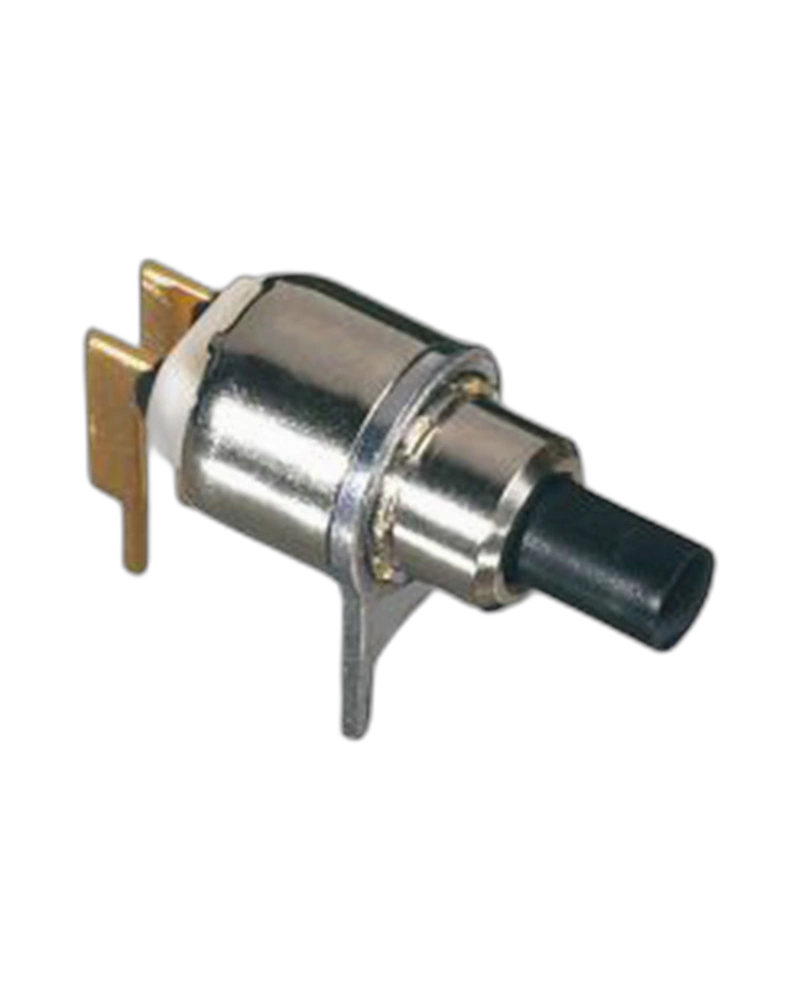

The APEM Panel Switches 9233CD-0U4310U4922 is a Switches and Pushbutton with documented product-specific characteristics including Insulation resistance: 1,000 MΩ min. at 500 VDC; Dielectric strength: 500 Vrms 50 Hz min. between terminals1,000 Vrms 50 Hz min. between terminals and frame Electrical life at full load :9100 - 9200N and 9500N : 250,000 cycles9200 - 9500 : 100,000 cycles Electrical life at full load :9100; Torque: 0.5 Nm (.590 Ft.lb) max. applied to nut.
The Panel Switches 9233CD-0U4310U4922 is a Switches and Pushbutton. The overview below is based on the verified product information available for this model.
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals1,000 Vrms 50 Hz min. between terminals and frame Electrical life at full load :9100 - 9200N and 9500N : 250,000 cycles9200 - 9500 : 100,000 cycles Electrical life at full load :9100 |
| Torque | 0.5 Nm (.590 Ft.lb) max. applied to nut |
| Panel thickness | 1.50 mm (.059) max. Travels : Tolerance : +/- 0.3 mm (.011) |
| Number Of Poles | Single Pole,Mounting Bezel:For 9500 Model Only,Caps:Height: 4mm (0.157in) |
| Operating temperature | -30 °C to +65 °C |
| Max. current/voltage rating with resistive load | 100 mA 30 VDC |
| Sealing | Epoxy Sealed Terminals,Terminals Case And Bushing:Straight Terminals Threaded Bushing |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Height | 4mm |
The APEMPanel Switches 9233CD-0U4310U4922 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals1,000 Vrms 50 Hz min. between terminals and frame Electrical life at full load :9100 - 9200N and 9500N : 250,000 cycles9200 - 9500 : 100,000 cycles Electrical life at full load :9100 |
| Torque | 0.5 Nm (.590 Ft.lb) max. applied to nut |
| Panel thickness | 1.50 mm (.059) max. Travels : Tolerance : +/- 0.3 mm (.011) |
| Number Of Poles | Single Pole,Mounting Bezel:For 9500 Model Only,Caps:Height: 4mm (0.157in) |
| Operating temperature | -30 °C to +65 °C |
| Max. current/voltage rating with resistive load | 100 mA 30 VDC |
| Sealing | Epoxy Sealed Terminals,Terminals Case And Bushing:Straight Terminals Threaded Bushing |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Height | 4mm |
