Panel Switches 9100-9200-9500

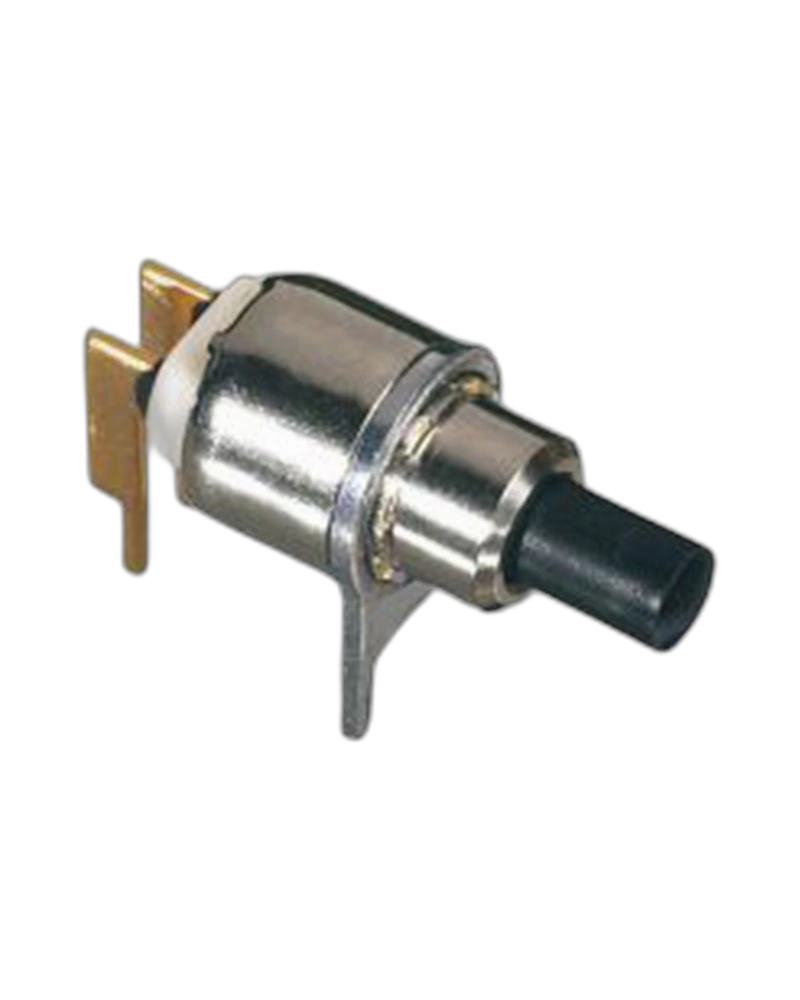

9100-9200-9500 9132CDK The 9132CDK Panel Switch features a sleek design, robust construction, and single pole configuration with a normally closed option for reliable control of lights and motors. Select Quantity
Key Features
- Insulation resistance: 1,000 MΩ min. at 500 VDC
- Dielectric strength: 500 Vrms 50 Hz min. between terminals1,000 Vrms 50 Hz min. between terminals and frame Electrical life at full load :9100 - 9200N and 9500N : 250,000 cycles9200 - 9500 : 100,000 cycles Electrical life at full load :9100
- Torque: 0.5 Nm (.590 Ft.lb) max. applied to nut
- Panel thickness: 1.50 mm (.059) max. Travels : Tolerance : +/- 0.3 mm (.011) Travels : Tolerance : +/- 0.3 mm (.011)
- Sealing: Front Panel Sealing,Terminals Case And Bushing:Straight Terminals Case Height 6.1mm (0.240in)
- Initial contact resistance: 30 mΩ max.
- Operating temperature: -30 °C to +65 °C
- Max. current/voltage rating with resistive load: 100 mA 30 VDC
- Number Of Poles: Single Pole
- Electrical Functions: Normally Closed (NC)
- Home Panel switches Panel switches Pushbutton Switches 9100 9200 9500 91..Y32CD-0 9100-9200-9500
- Panel and PC mount models, horizontal or vertical
- Self-cleaning and butt action contacts
- Several plunger options
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | single pole configuration |
Specifications
| Feature | Specification |
|---|
| Force | 9200N |
| Height | 6.1mm |
